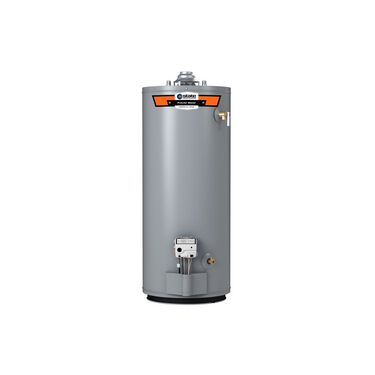

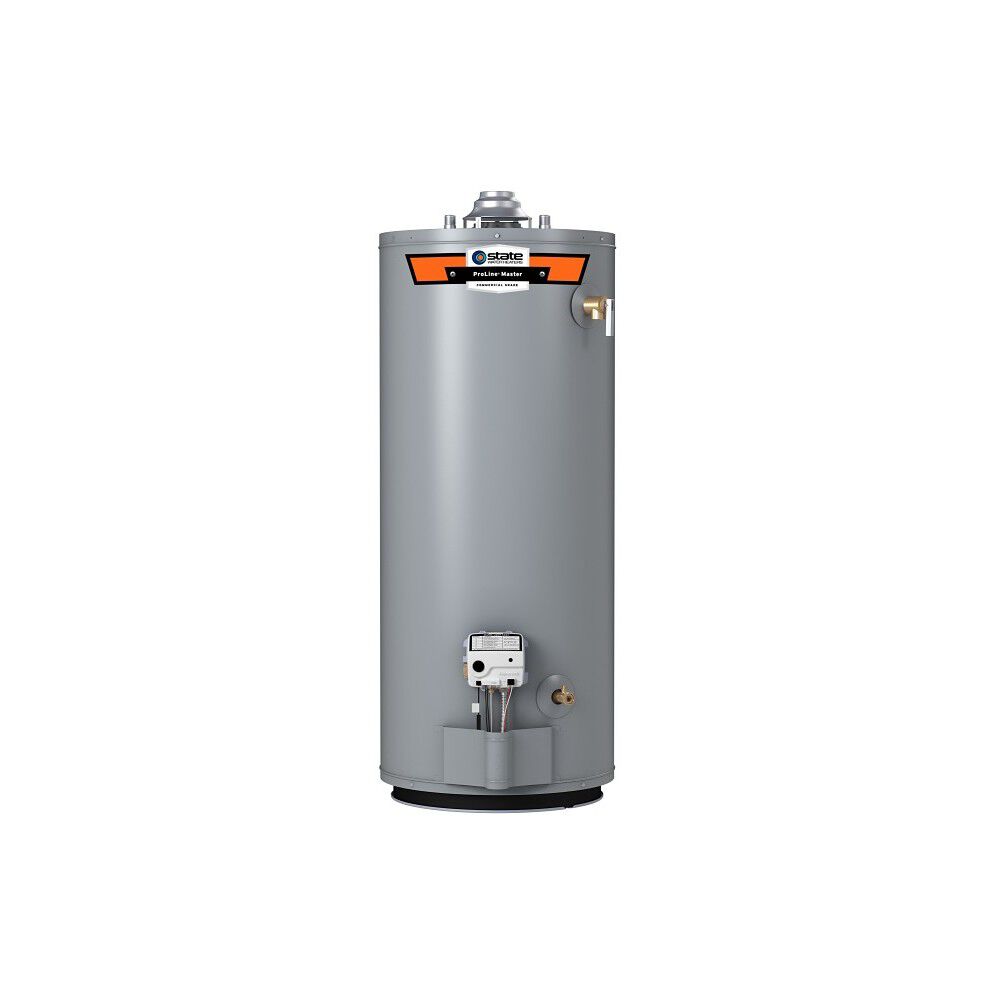

ProLine® Master Low NOx 40-Gallon Atmospheric Vent Short Natural Gas Water Heater

Model GW8-40-BCS 400
4.1 out of 5 Customer Rating
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
  • Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • Product Details
    • Meets Your Hot Water Demands—Delivers a 67-gallon first hour rating
    • Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
    • Easy-to-Use Controls—Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

    • The ProLine® Master GW8-40-BCS 40-Gallon Atmospheric Vent Short Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value.

      Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GW8-40-BCS Atmospheric Vent delivers a first hour rating of 67 gallons and a recovery rate of 41 gallons per hour. It carries a 8-year limited tank warranty and meets Low NOx emission requirements.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® Master water heater is designed with State’s advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.58
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    67 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    12.50
    Height to T&P
    41.25
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    51.31
    Shipping Length
    26.13
    Shipping Width
    23.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    47.75"
    Diameter
    22"
    Shipping Weight
    135lbs
    Vent Type
    Atmospheric Vent
