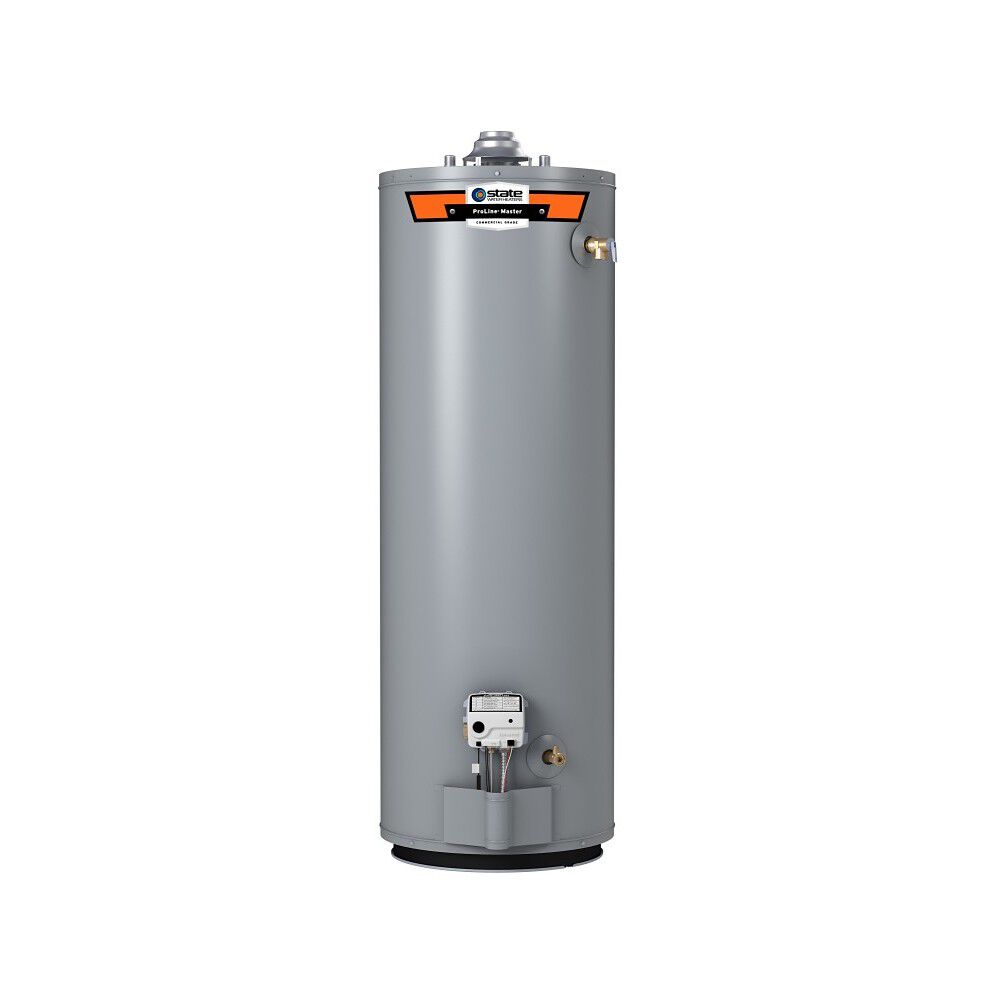

ProLine® Master Low NOx 40-Gallon Atmospheric Vent Tall Natural Gas Water Heater

Model GW8-40-BCT 410
5 out of 5 Customer Rating
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Meets Your Hot Water Demands—Delivers an 80-gallon first hour rating
  • Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • Product Details
    • Meets Your Hot Water Demands—Delivers an 80-gallon first hour rating
    • Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
    • Easy-to-Use Controls—Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

    • The ProLine® Master GW8-40-BCT 40-Gallon Atmospheric Vent Tall Natural Gas Water Heater consumes up to 40,000 BTU and delivers a first hour rating of 80 gallons and a recovery rate of 42 gallons per hour.

      The patented eco-friendly burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements of less than 40 ng/J. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. The GW8-40-BCT includes an 8-year limited tank warranty.

      This ProLine® Master water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.64
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    First Hour Rating
    80 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    62
    Shipping Length
    24.13
    Shipping Width
    21.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    61.75"
    Diameter
    20"
    Shipping Weight
    150lbs
    Vent Type
    Atmospheric Vent
