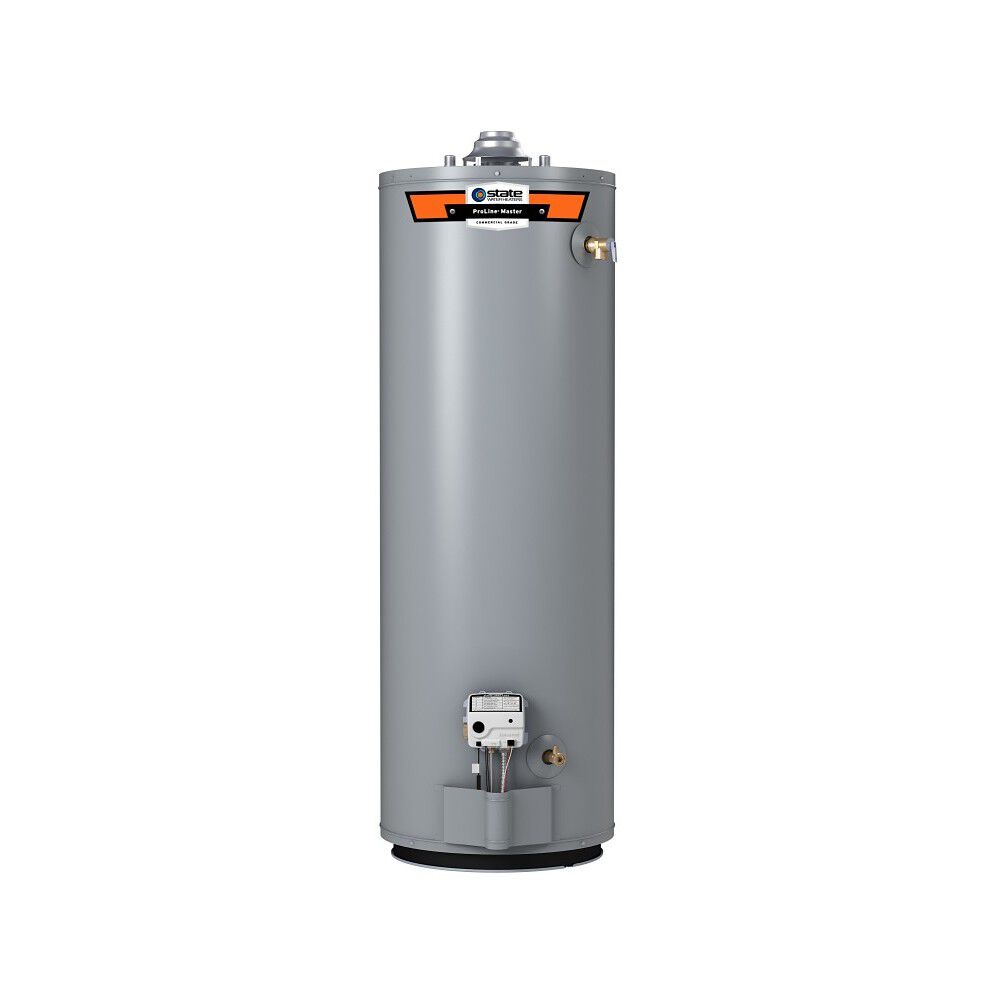

ProLine® Master Low NOx 50-Gallon Atmospheric Vent Tall Natural Gas Water Heater

Model GW8-50-RCTL 400
4.4 out of 5 Customer Rating
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Meets Your Hot Water Demands—Delivers an 89-gallon first hour rating
  • Energy Efficient—50,000 BTU input atmospheric vent design delivers up to 0.61 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • What to Expect from this Model
    modal-clock
    36.7 minutes
    single shower length
    modal-frame
    4.6 showers
    back-to-back
    modal-frame
    3 showers
    at the same time
    modal-tank-capacity
    82 gallons
    max tub size
    modal-cost
    $291/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Meets Your Hot Water Demands—Delivers an 89-gallon first hour rating
    • Energy Efficient—50,000 BTU input atmospheric vent design delivers up to 0.61 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
    • Easy-to-Use Controls—Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Recirculation Taps Included—Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

    • The ProLine® Master GW8-50-RCTL 50-Gallon Atmospheric Vent Tall Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value.

      Featuring a 50-gallon (nominal) tank and a 50,000 BTU gas burner, the GW8-50-RCTL Atmospheric Vent delivers a first hour rating of 89 gallons and a recovery rate of 54 gallons per hour. It carries a 8-year limited tank warranty and meets Low NOx emission requirements.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® Master water heater is designed with State’s advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.61
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    89 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    12.25
    Height to T&P
    50.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    60.81
    Shipping Length
    26.13
    Shipping Width
    23.13
    Side Loop
    Yes
    Dimension & Venting
    Type
    Water Heater
    Height
    60.75"
    Diameter
    22"
    Shipping Weight
    165lbs
    Vent Type
    Atmospheric Vent
