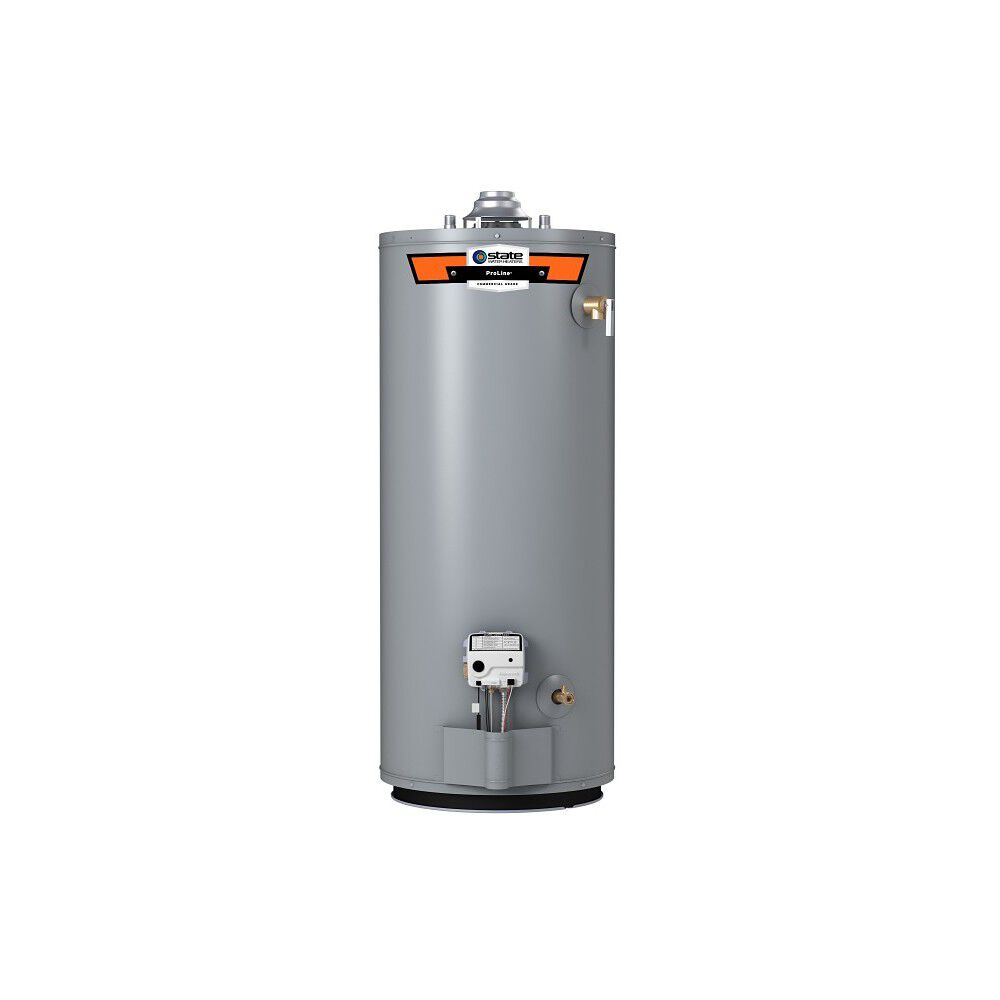

ProLine® Low NOx 30-Gallon Atmospheric Vent Short Natural Gas Water Heater

Name: ProLine® Low NOx 30-Gallon Atmospheric Vent Short Natural Gas Water Heater
SKU: GS6-30-ORBSR

Model GS6-30-ORBSR 400

Capacity (Gallons)

Limited Tank Warranty

Height Classification

Advanced Options

Fuel Source

First Hour Rating

Maximum BTU's

Side Loop

Diameter

Meets Your Hot Water Demands—Delivers a 65-gallon first hour rating

Energy Efficient—32,000 BTU input atmospheric vent design delivers up to 0.60 Uniform Energy Factor

No Power Required For Vent—Standard atmospheric vent installation with 3" or 4" B-vent, no power required

Find a Local Pro

Features & Benefits

Product Details

Meets Your Hot Water Demands—Delivers a 65-gallon first hour rating
Energy Efficient—32,000 BTU input atmospheric vent design delivers up to 0.60 Uniform Energy Factor
No Power Required For Vent—Standard atmospheric vent installation with 3" or 4" B-vent, no power required
Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
Peace of Mind—6-year limited tank and parts warranty for added peace of mind

The ProLine® GS6-30-ORBSR 30-Gallon Atmospheric Vent Short Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value.

Featuring a 30-gallon (nominal) tank and a 32,000 BTU gas burner, the GS6-30-ORBSR Atmospheric Vent delivers a first hour rating of 65 gallons and a recovery rate of 32 gallons per hour. It carries a 6-year limited tank warranty and meets Low NOx emission requirements.

Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This model ships with a supplied insulation blanket.

This ProLine® water heater is designed with State’s advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

Specifications
