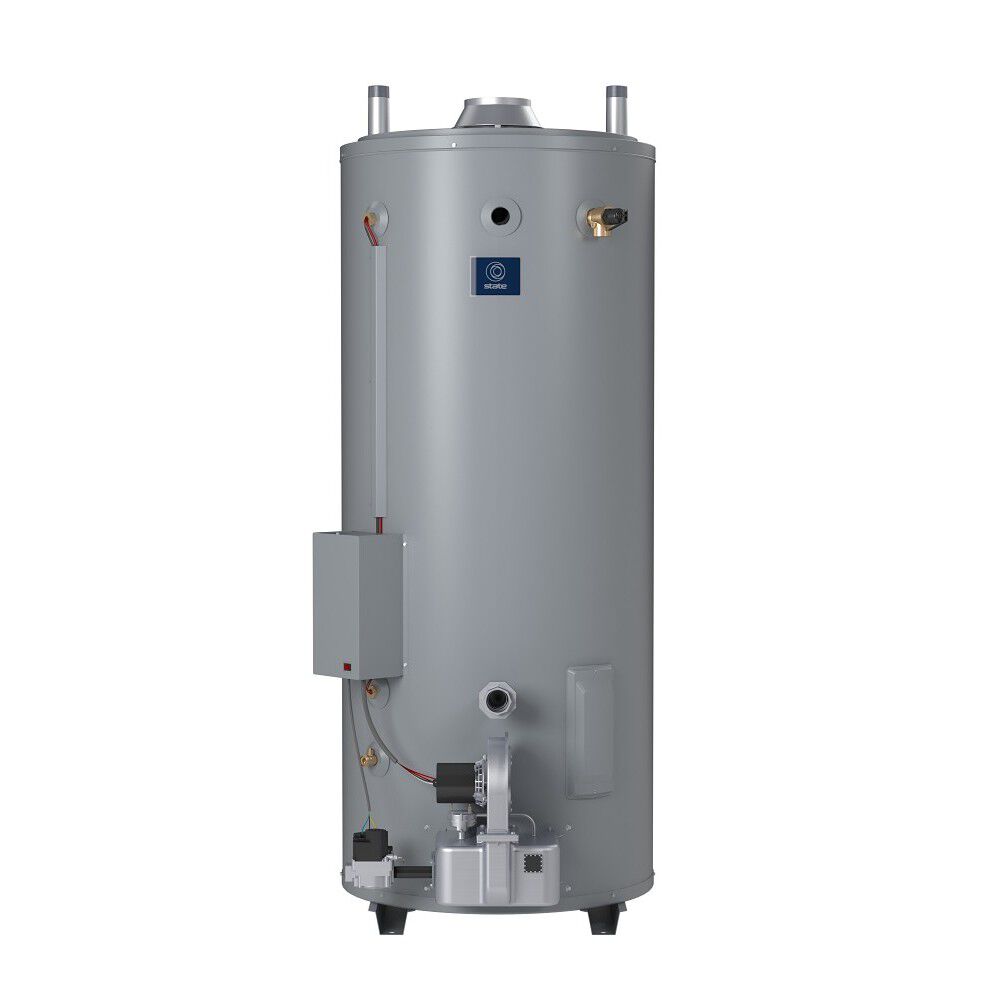

Sandblaster® Ultra-Low NOx

Model SBL-81-154NE 200
Capacity (Gallons)
Fuel Source
Maximum BTU's
ASME Indicator

  • Fan Assisted Combustion- The blower is built into the low NOx burner assembly
  • Complies with California SCAQMD Rule 1146.2
  • A stainless steel air flapper

    • Find a Local Pro
    Product Details
    • Fan Assisted Combustion- The blower is built into the low NOx burner assembly
    • Complies with California SCAQMD Rule 1146.2
    • A stainless steel air flapper
    • “The Eliminator” inlet water connection eliminates harmful scale buildup, extending the life of the product
    • Top, front and rearvwater Connections
    • Fully Automatic Digital Controls with Safety Shutoff
    • Permaglas® Ultracoat is the proprietary ceramic coating developed specifically for the heater
    • Jacket - Heavy gauge steel finished with a baked enamel finish over a bonderized undercoat
    • 3-year Limited Tank / 1-year Limited Parts Warranty

      • Sandblaster® SBL Ultra-Low NOx Single Flue model is an atmospheric vent commercial gas water heater with NOx emissions of less than 14 ng/j and meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and Current Edition ASHRA/IESNA90.1.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    81 Gallons
    Rated Storage Volume
    77 Gallons
    Thermal Efficiency
    80%
    Maximum BTUs
    154,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.5"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Flue Diameter
    2.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    6.00
    Height to T&P
    52.75
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Shipping Height
    74.5
    Shipping Length
    42.5
    Shipping Width
    37.75
    Side Loop
    No
    Vent Material
    Steel
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    65"
    Diameter
    27.75"
    Shipping Weight
    650lbs
