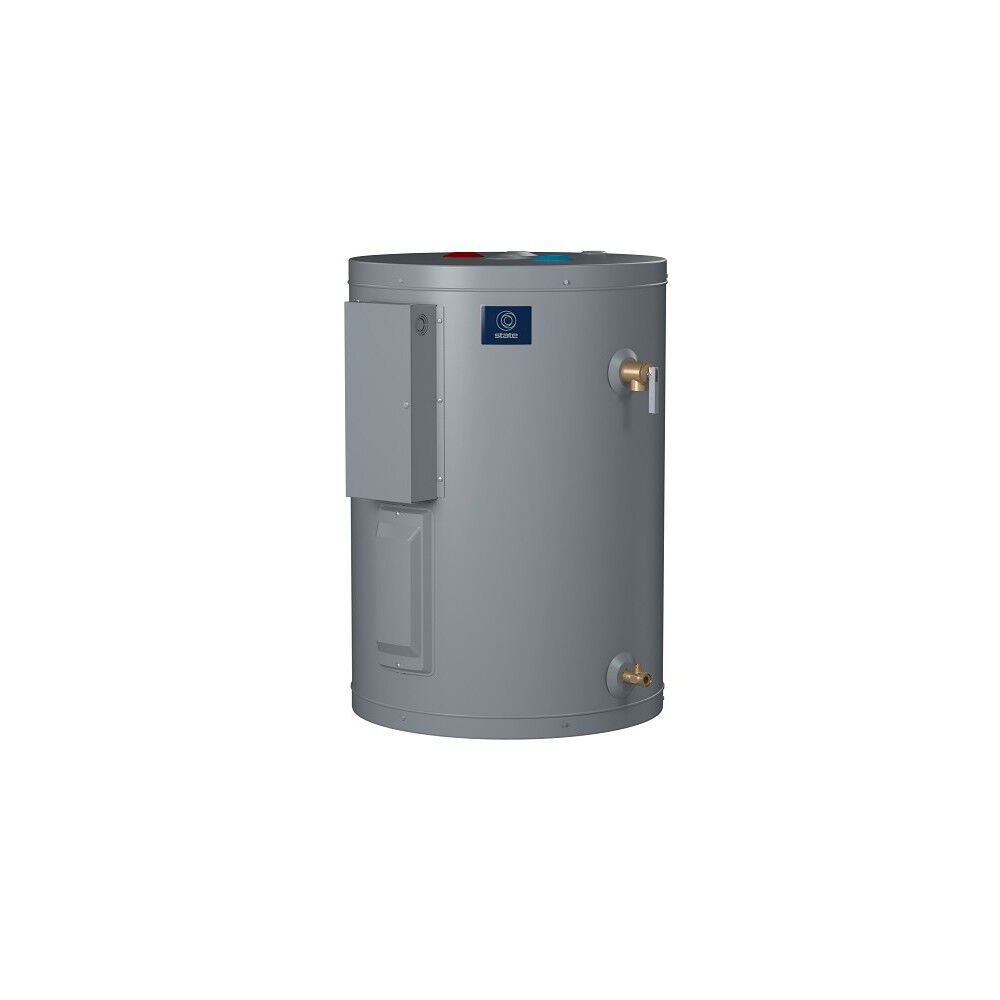

Patriot™ Light Duty Compact

Model PCE-10-1OMSA 102
Capacity (Gallons)
Max Wattage

  • Thirteen sizes; 6 thru 119 gallon capacity
  • 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta
  • Factory-installed Terminal block on most models

    • Find a Local Pro
    Product Details
    • Thirteen sizes; 6 thru 119 gallon capacity
    • 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta
    • Factory-installed Terminal block on most models
    • Tank interior is coated with glass specially designed by State Water Heaters for water heater use.
    • Limited Warranty Outline - If the tank should leak any time during the first three years, under the terms of the warranty, State Water Heaters will furnish a replacement heater; installation, labor, handling and local delivery extra

      • The State Light-Duty Patriot™ Commercial Electric Water Heaters deliver flexibility. For under-counter installations, the Lowboy and Compact models are available from 6-gallon through 50-gallon sizes and heights from 15-1/2 to 32-1/4.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    10 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    2,500
    Number of Elements
    1
    Application
    COMMERCIAL
    Shipping Height
    20
    Shipping Length
    20.75
    Shipping Width
    20.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    18.25"
    Diameter
    18"
    Shipping Weight
    48lbs
