Product Details
- Thirteen sizes; 6 thru 119 gallon capacity
- 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta
- Factory-installed Terminal block on most models
- Tank interior is coated with glass specially designed by State Water Heaters for water heater use.
- Limited Warranty Outline - If the tank should leak any time during the first three years, under the terms of the warranty, State Water Heaters will furnish a replacement heater; installation, labor, handling and local delivery extra

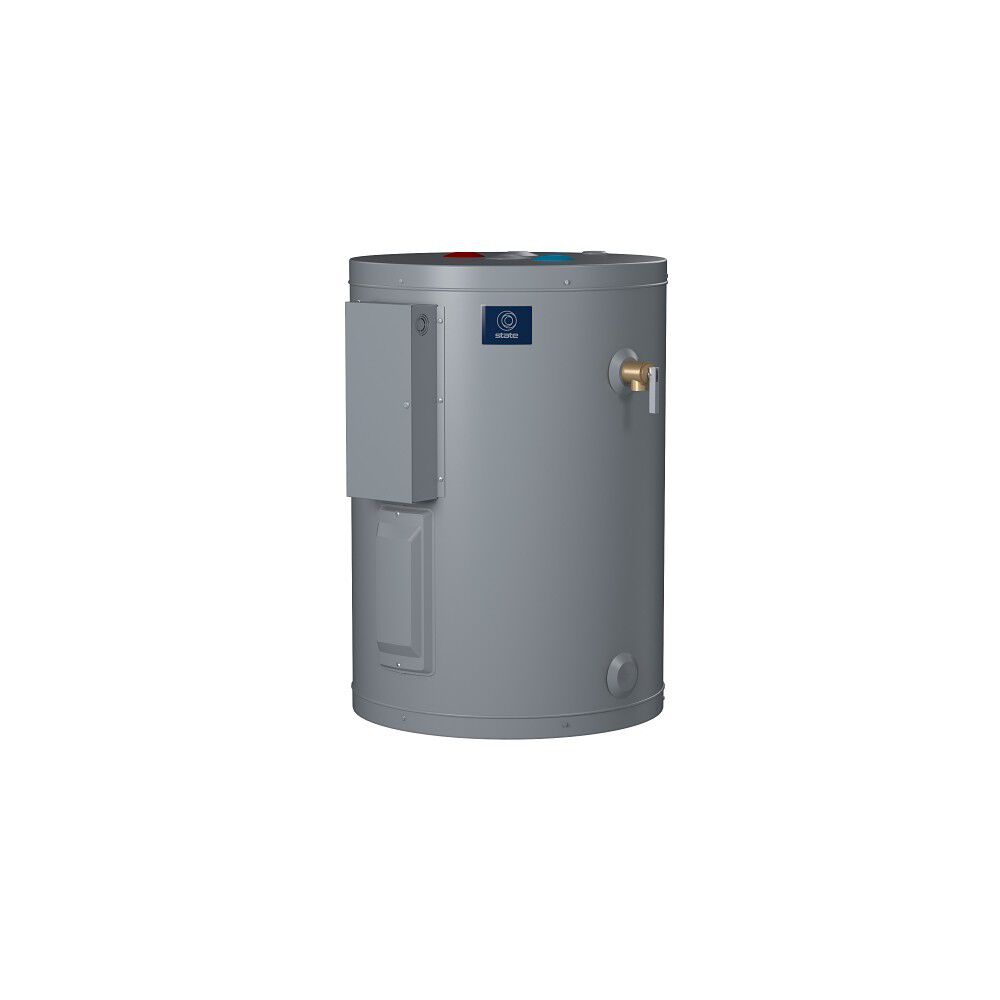

The State Light-Duty Patriot™ Commercial Electric Water Heaters deliver flexibility. For under-counter installations, the Lowboy and Compact models are available from 6-gallon through 50-gallon sizes and heights from 15-1/2 to 32-1/4.
Specifications
Tech Specs
Nominal Gallon Capacity
6 Gallons
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
0.75"
ASME Certified
No
Blanket Included
No
Destination Country
US
Height to T&P
10.75
Max Wattage
3,000
Number of Elements
1
Application
COMMERCIAL
Shipping Height
17.5
Shipping Length
16.75
Shipping Width
16.75
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
15.5"
Diameter
14.25"
Shipping Weight
32lbs
