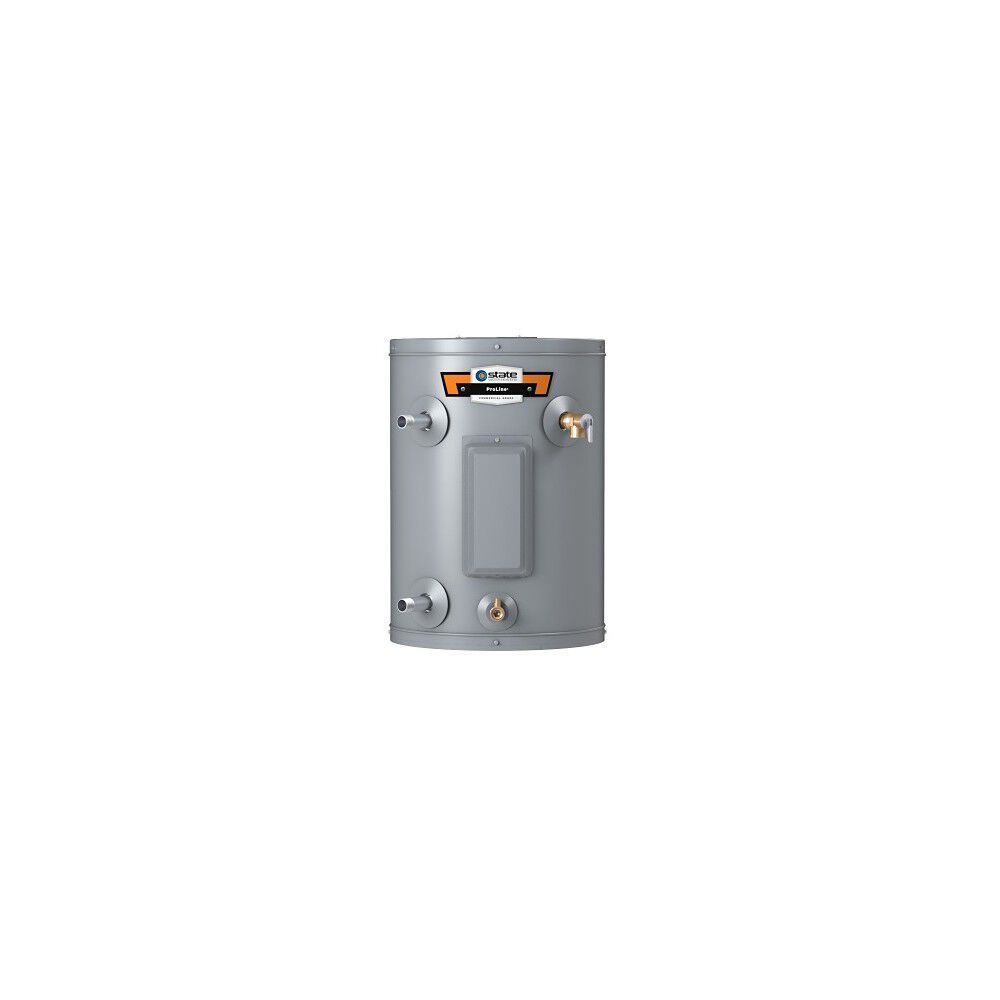

ProLine® 10-Gallon Specialty Compact Electric Water Heater

Model ES6-10-SOMS 200
3.1 out of 5 Customer Rating
Capacity (Gallons)
Max Wattage

  • Durable Heating Element—Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
  • Compact Design—Side water connections make it ideal for installation under a counter, in a crawl space or in other tight spaces
  • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
  • Product Details
    • Durable Heating Element—Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
    • Compact Design—Side water connections make it ideal for installation under a counter, in a crawl space or in other tight spaces
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Extra Tank Protection—Top-mounted, heavy-duty anode for added tank protection, extending the life of the tank
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® Compact electric water heater features a small footprint and is the ideal choice where installation space is limited, such as under counters and in crawl spaces. With a 10-gallon (nominal) tank and a single 1650-watt element, the ES6-10-SOMS delivers reliable and efficient hot water.

      This ProLine® water heater is designed with State's advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. This model includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    10 Gallons
    Rated Storage Volume
    9 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    0 Years
    T&P Relief Valve
    No
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    12.25
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    1
    Application
    RESIDENTIAL
    Shipping Height
    19.75
    Shipping Length
    19.75
    Shipping Width
    18.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    18.25"
    Diameter
    16"
    Width
    16"
    Shipping Weight
    41lbs
