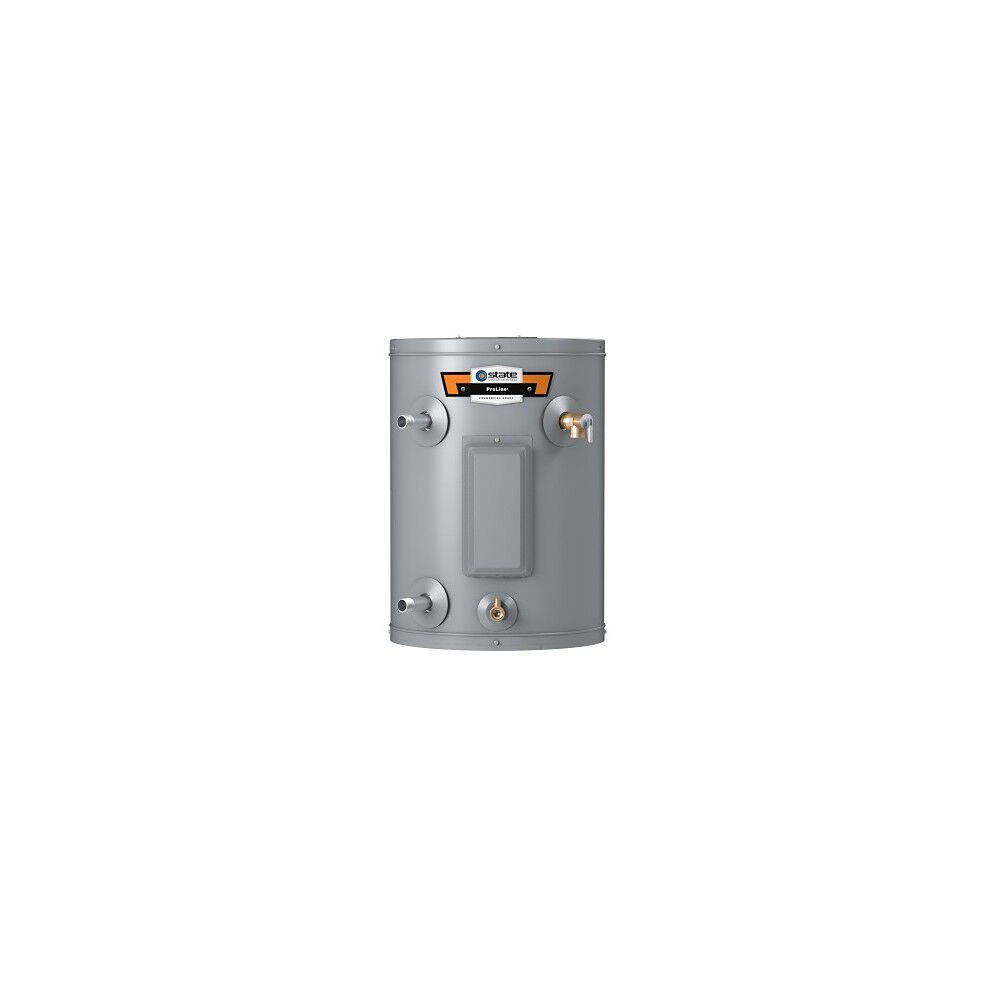

ProLine® 20-Gallon Specialty Compact Electric Water Heater

Model ES6-20-SOMS 200
4.9 out of 5 Customer Rating
Capacity (Gallons)
Max Wattage

  • Durable Heating Element—Single 2,500-watt commercial-grade heating element delivers reliable and efficient hot water
  • Compact Design—Side water connections make it ideal for installation under a counter, in a crawl space or in other tight spaces
  • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
  • Product Details
    • Durable Heating Element—Single 2,500-watt commercial-grade heating element delivers reliable and efficient hot water
    • Compact Design—Side water connections make it ideal for installation under a counter, in a crawl space or in other tight spaces
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® Compact electric water heater features a small footprint and is the ideal choice where installation space is limited, such as under counters and in crawl spaces. With a 19-gallon (nominal) tank and a single 2500-watt element, the ES6-20-SOMS delivers reliable and efficient hot water.

      This ProLine® water heater is designed with State's advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. This model includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    19 Gallons
    Rated Storage Volume
    17 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    No
    Water Connection Location
    BOTH
    Emissions
    Low NOx
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    2,500
    Number of Elements
    1
    Application
    RESIDENTIAL
    Shipping Height
    26.25
    Shipping Length
    22.25
    Shipping Width
    19.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    18"
    Shipping Weight
    68lbs
