Product Details
- Delivers up to 86 GPH at 100°F Rise
- Produces 94% thermal efficiency, which saves money on operating costs, and increases hot water output compared to standard-efficiency water heaters
- Intelli-vent™ gas control with silicon nitride hot surface ignitor for more precise control of water temperature and simplified system diagnostics
- Touch display control system delivers precise temperature control up to 181°F, built-in diagnostics and operational information
- 22” diameter combined with 94% efficiency can be installed in less space than a larger unit, with equal or better performance
- Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
- Side-mounted taps allow for water heating plus space heating, radiant floor heating or other applications where a recirculating hot water loop is required
- Blue Diamond® glass-lining and two heavy duty CoreGard® anode rods provide superior corrosion resistance
- 3-year limited tank and 1-year limited parts warranty

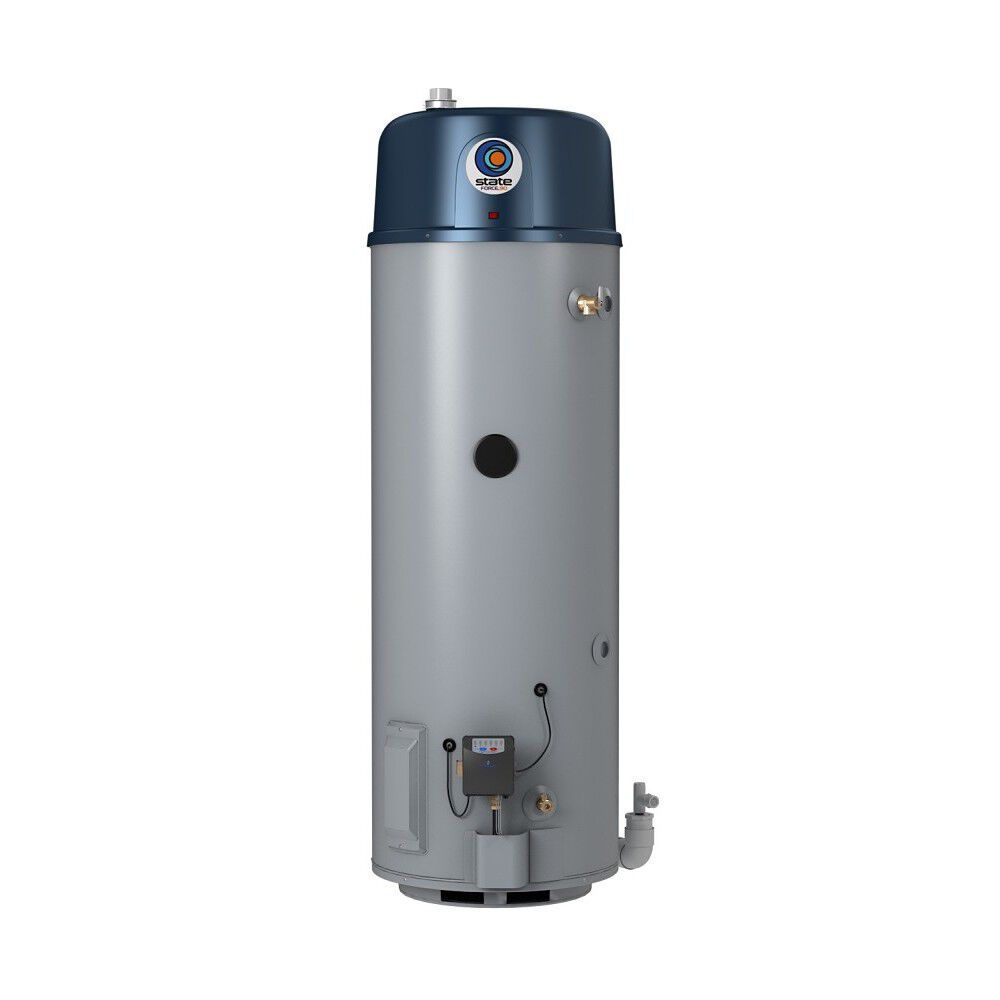

The Force™ 90 is a light-duty, power vent, fully condensing commercial gas water heater with an internal helical heat exchanger. This helical heat exchanger helps the Force 90 achieve 94% thermal efficiency and deliver outstanding hot water output.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48 Gallons
UEF
0.88
Thermal Efficiency
94%
Maximum BTUs
76,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
ASME Certified
No
Amperes
5
Destination Country
US
ENERGY STAR® Certified
true
Fuel Source
NATURAL
Installation Type
INDOOR
Application
COMMERCIAL
Shipping Height
73
Shipping Length
30
Shipping Width
25.75
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
22"
Shipping Weight
225lbs
Vent Type
Power Vent
