Energy Star

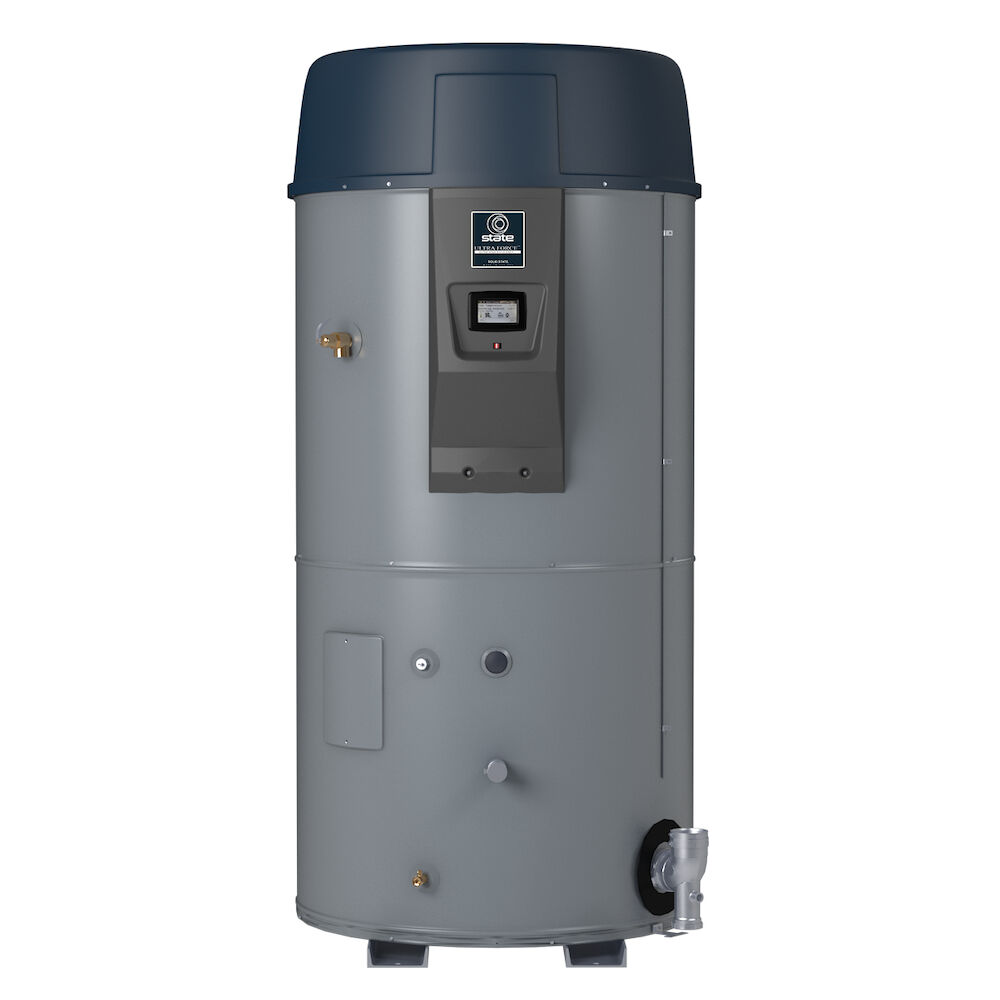

Modulating Ultra Force® LV - SUFL

Model SUFL-220-500-NEA 300
Capacity (Gallons)
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified - Up to 94% thermal efficiency dramatically lowers operating costs
  • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
  • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

    • Find a Local Pro
    Product Details
    • ENERGY STAR® certified - Up to 94% thermal efficiency dramatically lowers operating costs
    • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
    • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
    • iCOMM™ remote monitoring provides detailed diagnostic fault notifications and control of the set point and differential using the free State app
    • Mechanical venting versatility with convention power venting or direct venting vertically or through side wall with low cost PVC Schedule 40 intake and exhaust pipe
    • Direct-vent intake and exhaust pipe can terminate separately outside building or through single opening, using concentric vent assembly
    • High efficiency modulating down-fired pre-mix burner provides optimum efficiency and quiet operation
    • Permaglas® Ultra Coat™ glass lining coating is applied using a liquid slush coating technique to ensure uniform coating
    • 5-year limited tank and 1-year limited parts warranty

      • The full line of State Ultra Force LV condensing water heaters has been designed to provide years of dependable service and feature industry leading technology. Models are available from 150,000 to 499,900 Btu/h and all deliver thermal efficiencies up to 96%. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. Ultra Force LV High Efficiency Power Vent is an industry leader in high efficiency commercial water heating. The current modulating models adjust firing rate to the specific demand further increasing efficiency and money savings.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    220 Gallons
    Rated Storage Volume
    214.9 Gallons
    Thermal Efficiency
    92%
    Maximum BTUs
    499,900
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    1.5"
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    5
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Fuel Source
    NATURAL
    Height to Gas Valve
    89.75
    Height to T&P
    62.62
    Installation Type
    INDOOR
    Minimum BTUs
    195,000.00
    Application
    SPECIALTY
    Shipping Height
    101
    Shipping Length
    52.5
    Shipping Width
    56
    Side Loop
    No
    Vent Material
    PVC, CPVC, Polypropylene,AL29-4C Stainless
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    91.5"
    Diameter
    42.13"
    Shipping Weight
    1420lbs
