Product Details
- ENERGY STAR® certified
- Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
- Exclusive State designed touch display control system delivers precise temperature control up to 181°F, built-in diagnostics and operational information
- Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle & reduces scale formation on the heat exchanger
- Combined vertical and horizontal runs terminating through the roof or an outside wall vents using PVC, CPVC or polypropylene piping
- Side-mounted hot and cold recirculating taps allows Cyclone® Xi to be installed as part of combination space heating/water heating pplications
- Top-fired Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
- Blue Diamond® glass-lining and CoreGard® anode rod provide superior corrosion resistance
- 3-year limited tank / 1-year limited parts warranty

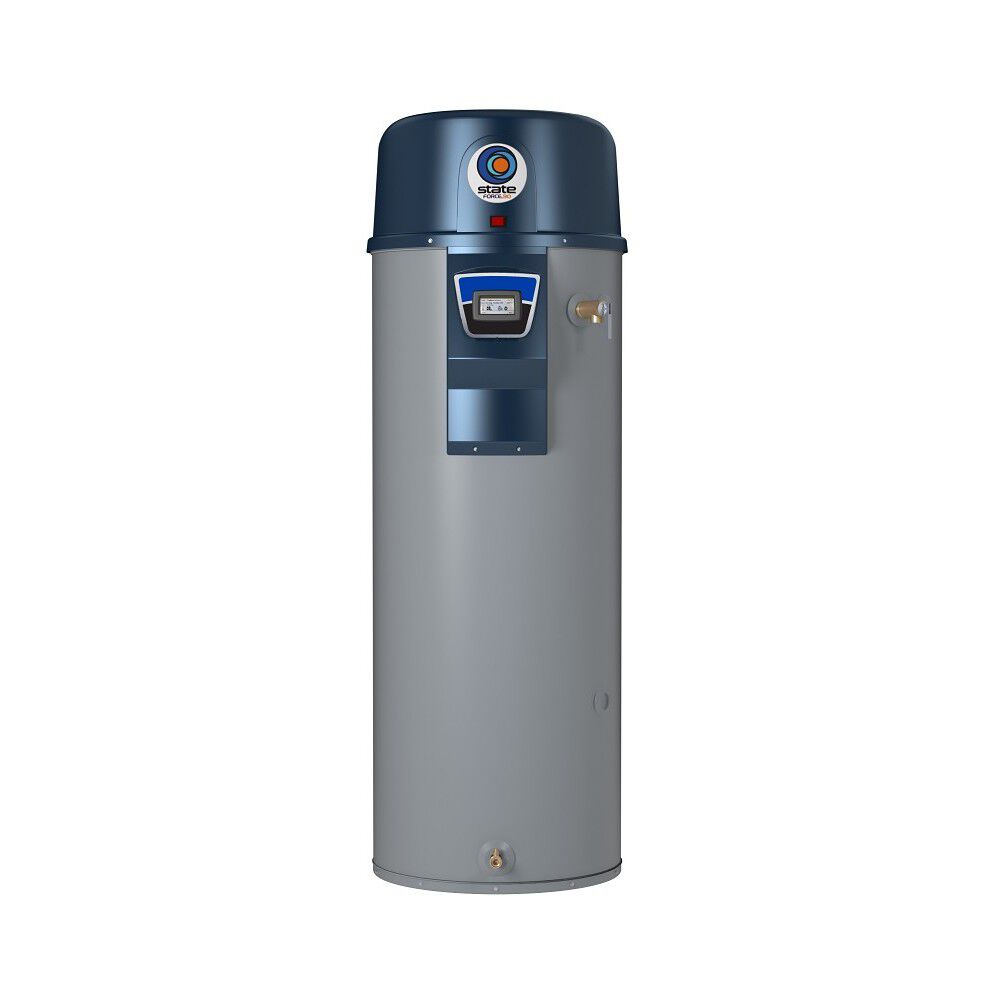

The 100,000 BTU Force™ 90+ light-duty commercial gas water heaters are equipped with a fully submerged, spiral-shaped condensing heat exchanger offered with 50 or 75 gallons of storage capacity. This design provided much greater heat transfer surface than a standard straight flue tube, resulting in 96% thermal efficiency and higher hot water output than comparable 80% efficient water heaters.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
49.8 Gallons
Thermal Efficiency
96%
Maximum BTUs
100,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Location
BOTH
ASME Certified
No
Amperes
5
Destination Country
US
Digital Display
true
ENERGY STAR® Certified
true
Fuel Source
PROPANE
Installation Type
INDOOR
Shipping Height
73.38
Shipping Length
30
Shipping Width
26
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
22"
Shipping Weight
225lbs
Vent Type
Power Direct Vent
