Energy Star

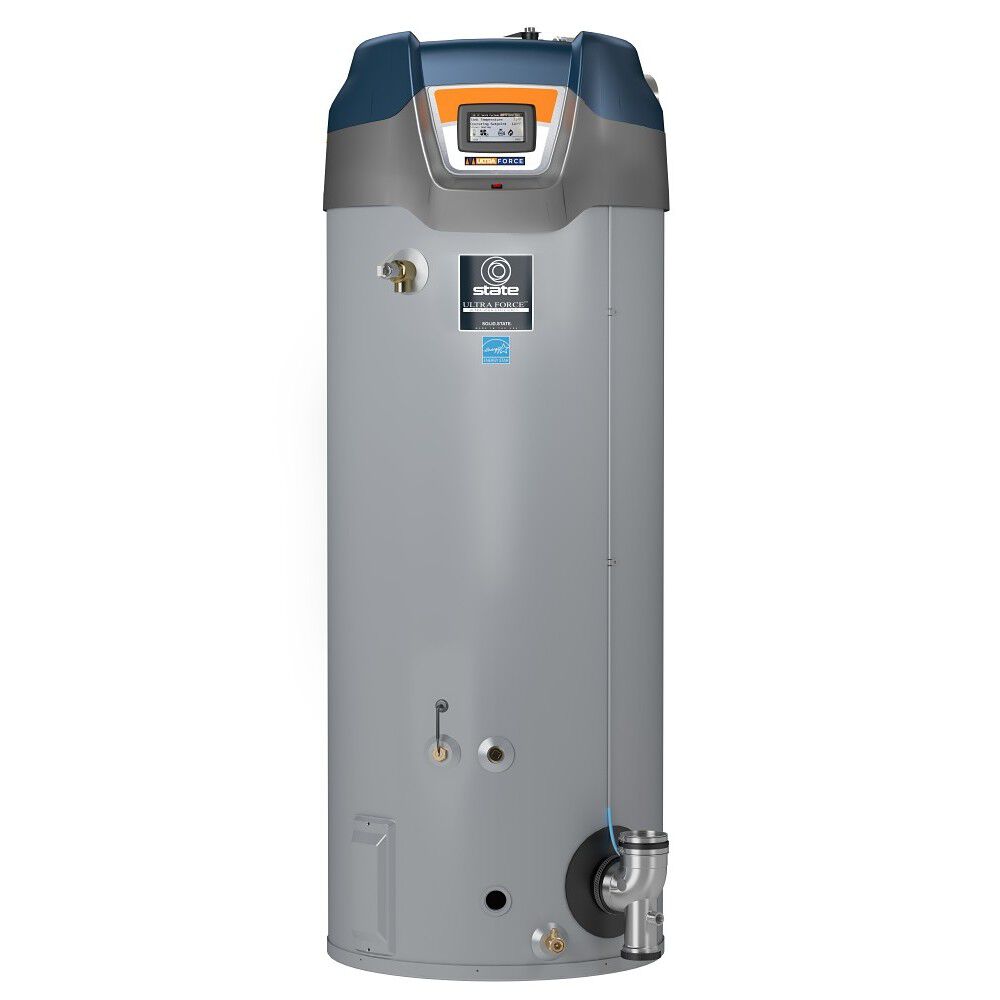

Modulating Ultra Force™ High Efficiency Power Vent

Model SUF-60-120-PEA 301
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's

  • ENERGY STAR® certified - Up to 96% thermal efficiency dramatically lowers operating costs
  • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
  • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

    • Find a Local Pro
    Product Details
    • ENERGY STAR® certified - Up to 96% thermal efficiency dramatically lowers operating costs
    • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
    • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
    • iCOMM™ remote monitoring provides detailed diagnostic fault notifications and control of the set point and differential using the free State app
    • Mechanical venting versatility with convention power venting or direct venting vertically or through side wall with low cost PVC Schedule 40 intake and exhaust pipe
    • Direct-vent intake and exhaust pipe can terminate separately outside building or through single opening, using concentric vent assembly
    • High efficiency modulating down-fired pre-mix burner provides optimum efficiency and quiet operation
    • Permaglas® Ultra Coat™ glass lining coating is applied using a liquid slush coating technique to ensure uniform coating
    • 3-year limited tank and 1-year limited parts warranty

      • The full line of State Modulating Ultra Force™ High Efficiency Power Vent condensing water heaters has been designed to provide years of dependable service and feature industry leading technology. Models are available from 120,000 to 500,000 Btu/h and all deliver thermal efficiencies of 95% and higher. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. Modulating Ultra Force High Efficiency Power Vent is an industry leader in high efficiency commercial water heating. The current modulating models adjust firing rate to the specific demand further increasing efficiency and money savings.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    60 Gallons
    Rated Storage Volume
    58 Gallons
    Thermal Efficiency
    95%
    Maximum BTUs
    120,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.5"
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    5
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Fuel Source
    PROPANE
    Height to Gas Valve
    53.50
    Height to T&P
    35.00
    Installation Type
    INDOOR
    Minimum BTUs
    78,000.00
    Application
    COMMERCIAL
    Recovery Rise at 90°F
    154
    Shipping Height
    64.25
    Shipping Length
    37.25
    Shipping Width
    34.5
    Side Loop
    No
    Vent Material
    PVC, CPVC, Polypropylene,AL29-4C Stainless
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    55.5"
    Shipping Weight
    490lbs
