Product Details
- ENERGY STAR® certified - Up to 97% thermal efficiency dramatically lowers operating costs
- Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
- Submerged combustion chamber, with stainless steel helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
- iCOMM™ remote monitoring provides detailed diagnostic fault notifications and control of the set point and differential using the free State app
- Single 750 BTU/h unit has a smaller footprint than most other 750 BTU/h options
- Patent pending stainless steel heat exchange system provides 97% thermal efficiency
- Rugged stainless steel construction, glass-lining, and powered anodes provide superior corrosion resistance
- ASME tank construction standard on all models
- 5-year limited tank and 1-year limited parts warranty

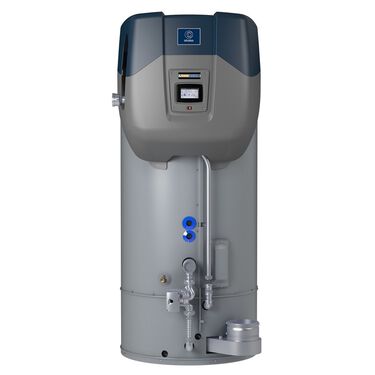

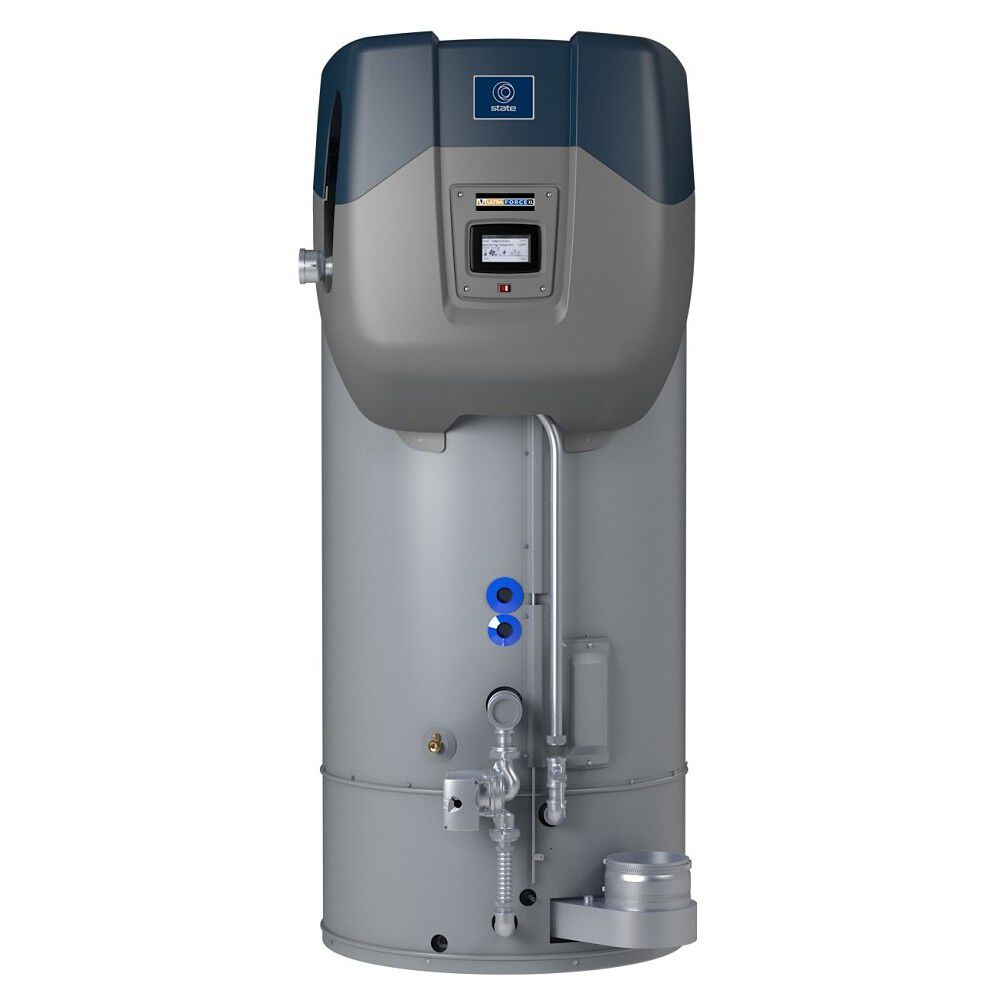

Designed to provide years of dependable service, State Water Heaters’ Ultra Force XL condensing water heaters feature industry-leading technology. Models are available from 750,000 to 1,000,000 Btu/h and all deliver thermal efficiencies of 97%. The primary and secondary heat exchangers provide optimal service life, while maximizing heat transfer. Ultra Force is the industry leader in high efficiency commercial water heating. Ultra Force XL modulating models adjust firing rate to the specific demand further increasing efficiency and money savings.
Specifications
Tech Specs
Nominal Gallon Capacity
120 Gallons
Rated Storage Volume
119 Gallons
Thermal Efficiency
97%
Maximum BTUs
1,000,000
Power Source
GAS
Limited Tank Warranty
5 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
2"
ASME Certified
Yes
ASME Stamp
HLW
Amperes
6.5
Destination Country
US
Digital Display
true
ENERGY STAR® Certified
true
Flue Diameter
6.00
Fuel Source
NATURAL
Height to Gas Valve
61.00
Installation Type
INDOOR
Minimum BTUs
399,000.00
Application
SPECIALTY
Shipping Height
90
Shipping Length
53
Shipping Width
43
Side Loop
No
Vent Material
PVC, CPVC, Polypropylene, AL29-4C Stainless
Voltage
120
Dimension & Venting
Type
Water Heater
Height
80.75"
Diameter
33.12"
Shipping Weight
1300lbs
