Energy Star

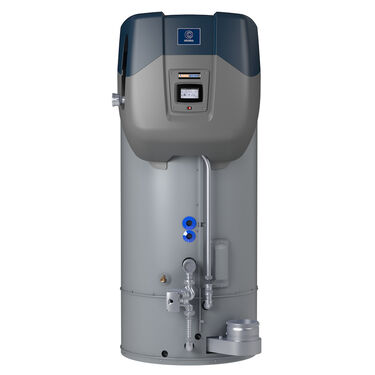

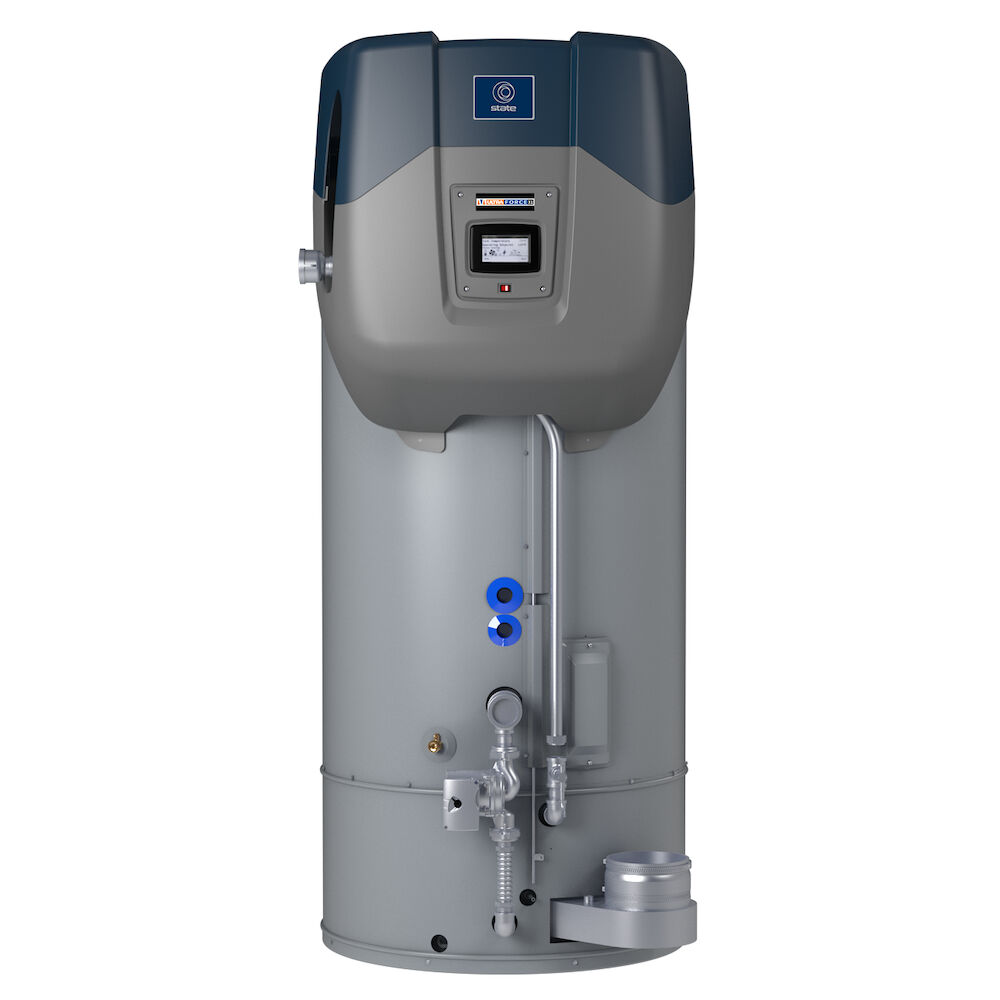

Modulating Ultra Force® XL - SUS

Model SUS-120-750-NEA 100
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's

  • ENERGY STAR® certified - Up to 97% thermal efficiency dramatically lowers operating costs
  • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
  • Submerged combustion chamber, with stainless steel helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

    • Find a Local Pro
    Product Details
    • ENERGY STAR® certified - Up to 97% thermal efficiency dramatically lowers operating costs
    • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
    • Submerged combustion chamber, with stainless steel helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
    • iCOMM™ remote monitoring provides detailed diagnostic fault notifications and control of the set point and differential using the free State app
    • Single 750 BTU/h unit has a smaller footprint than most other 750 BTU/h options
    • Patent pending stainless steel heat exchange system provides 97% thermal efficiency
    • Rugged stainless steel construction, glass-lining, and powered anodes provide superior corrosion resistance
    • ASME tank construction standard on all models
    • 5-year limited tank and 1-year limited parts warranty

      • Designed to provide years of dependable service, State Water Heaters’ Ultra Force XL condensing water heaters feature industry-leading technology. Models are available from 750,000 to 1,000,000 Btu/h and all deliver thermal efficiencies of 97%. The primary and secondary heat exchangers provide optimal service life, while maximizing heat transfer. Ultra Force is the industry leader in high efficiency commercial water heating. Ultra Force XL modulating models adjust firing rate to the specific demand further increasing efficiency and money savings.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    120 Gallons
    Rated Storage Volume
    119 Gallons
    Thermal Efficiency
    97%
    Maximum BTUs
    750,000
    Power Source
    GAS
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    2"
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    6.5
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Flue Diameter
    6.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    61.00
    Installation Type
    INDOOR
    Minimum BTUs
    399,000.00
    Application
    SPECIALTY
    Shipping Height
    90.5
    Shipping Length
    52
    Shipping Width
    42
    Side Loop
    No
    Vent Material
    PVC, CPVC, Polypropylene,AL29-4C Stainless
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    80.75"
    Diameter
    33.12"
    Shipping Weight
    1300lbs
