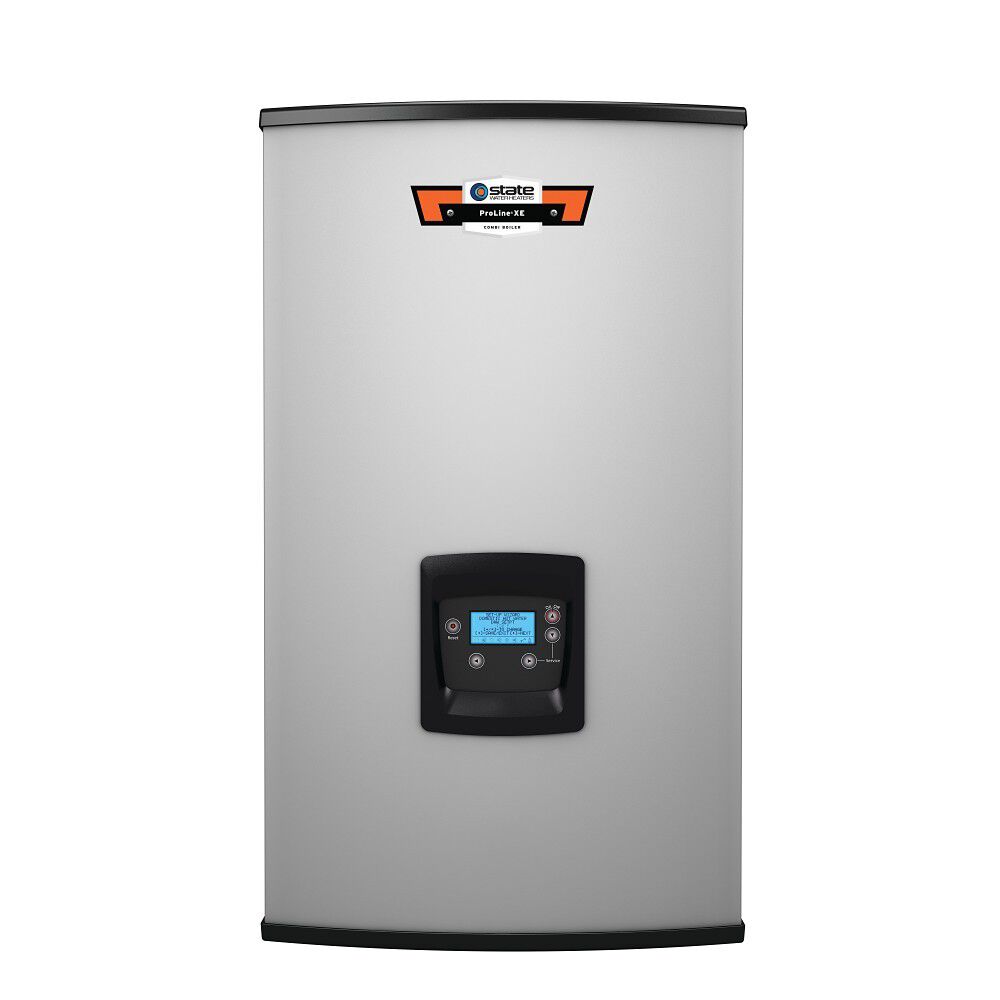

ProLine® XE High Efficiency Ultra-Low NOx Natural Gas Combi Boiler

Model SCB-199S-N 110
4.1 out of 5 Customer Rating
Fuel Source
Maximum Altitude
Maximum BTU's

  • Outstanding Hot Water Delivery—Industry-leading domestic hot water delivery up to 4.8 GPM @ 77°F rise
  • Smart, Effective Design—Innovative fire tube design produces a higher heat transfer coefficient than traditional fire tubes
  • Efficient and Continuous Hot Water—Modulating burner with 10:1 turndown
  • Product Details
    • Outstanding Hot Water Delivery—Industry-leading domestic hot water delivery up to 4.8 GPM @ 77°F rise
    • Smart, Effective Design—Innovative fire tube design produces a higher heat transfer coefficient than traditional fire tubes
    • Efficient and Continuous Hot Water—Modulating burner with 10:1 turndown
    • Simple Operation—Easy set up and diagnostics with user-friendly touchscreen display
    • Flexible Vent Design—Flexible power vent design allows for venting up to 100 feet using either PVC (solid core), CPVC, polypropylene or stainless steel
    • Multipurpose—Great for space heating & domestic water heating
    • Low Emissions—Ultra-Low NOx Gas Burner meets or exceeds emission requirements in California & Utah
    • Peace of Mind—10-year limited heat exchanger warranty in residential applications, 5-year limited parts warranty

    • The ProLine® XE SCB-199S-N Indoor Ultra-Low NOx Combi Boiler features an industry-leading 4.8 gal/min capacity—enough to provide hot water for a typical 2.5 bath home and space heating for the entire house.

      This model uses up to 199,000 BTU/hr of natural gas to deliver a continuous supply of hot water. The SCB-199S-N is rated at a 95% AFUE (Annual Fuel Utilization Efficiency), and is ENERGY STAR® certified, making it eligible for many local utility rebate programs.

      Installation is a breeze with the plain-text setup wizard on the Smart Control LCD display. The power direct vent design can be vented up to 100 feet using either PVC, CPVC, polypropylene, or AL29-4C stainless steel vent pipe for easy and flexible installation.

      The XE SCB-199S-N includes a 10-year limited heat-exchanger warranty and 5-year limited parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    AFUE
    95.00
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    19,900.00
    Application
    RESIDENTIAL
    Shipping Height
    28
    Shipping Length
    52
    Shipping Width
    22
    Side Loop
    No
    Dimension & Venting
    Type
    Boiler
    Height
    44.25"
    Width
    18.75"
    Shipping Weight
    175lbs
    Vent Type
    Direct Vent
