Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Multi-dome construction from lightweight, drawn steel.
- Heavy Duty Parabolic diaphragm
- Corrosion resistant polymer base
- Powder coated exterior finish with high UV resistance
- Fused water chamber with powder coated interior
- NSF 612G/372 galvanized lead-free connection
- Projection welded air valve.
- 5-year limited warranty

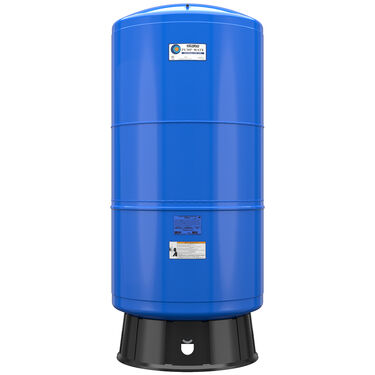

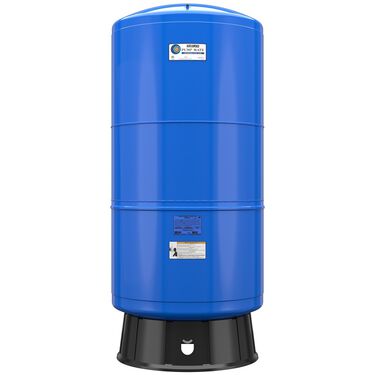

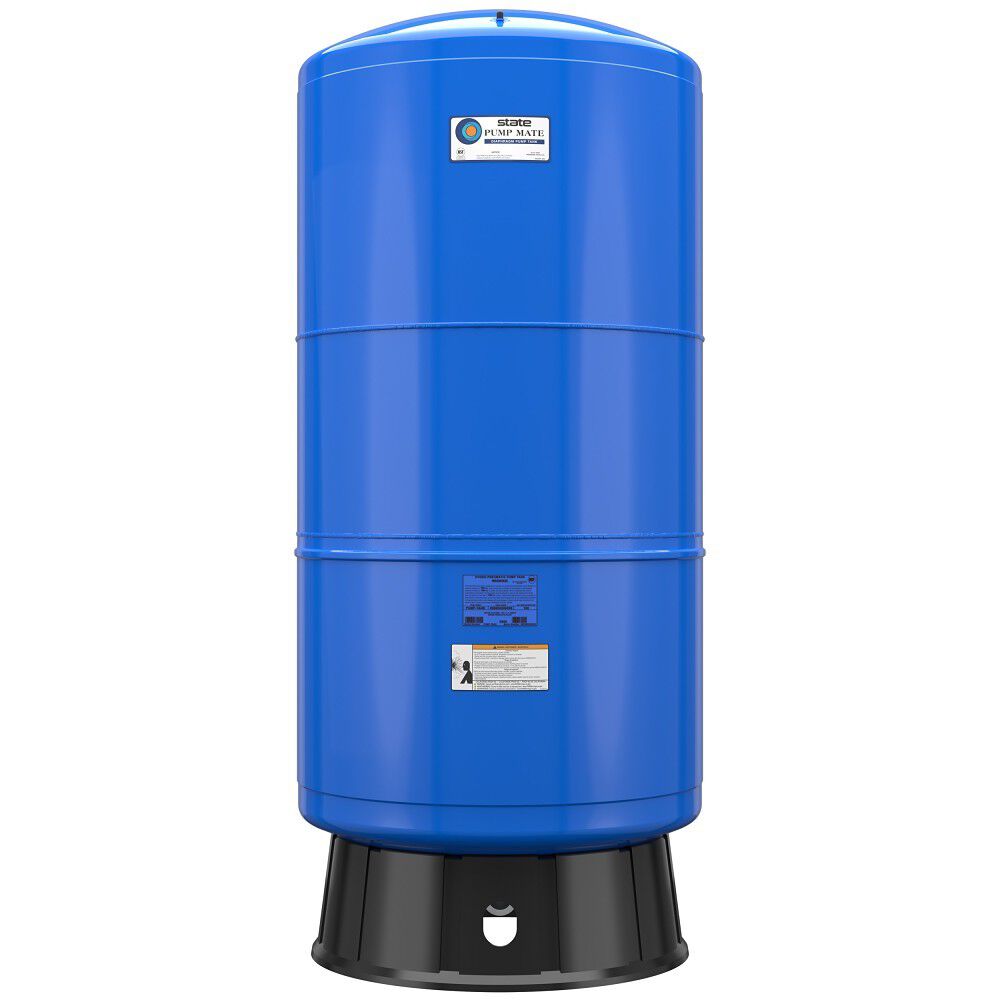

A pump tank is an essential part of any well system. This State well tank delivers these benefits: it stores a supplemental water supply between pump cycles, reducing the number of pump cycles throughout the day increasing pump life. It maintains water pressure within your system.
Specifications
Tech Specs
Nominal Gallon Capacity
119 Gallons
Rated Storage Volume
115.9 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
1.25"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
COMMERCIAL
Shipping Height
62
Shipping Length
26.75
Shipping Width
26.75
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
61.25"
Width
26"
Shipping Weight
161lbs
Product Literature
Technical Literature
