Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Lightweight, double drawn steel contruction
- Heavy Duty Parabolic diaphragm
- Corrosion resistant polymer base
- Powder coated exterior finish with high UV resistance
- Fused polypropylene lined interior water chamber
- NSF 612G/372 galvanized lead-free connection
- Projection welded air valve.
- 5-year limited warranty

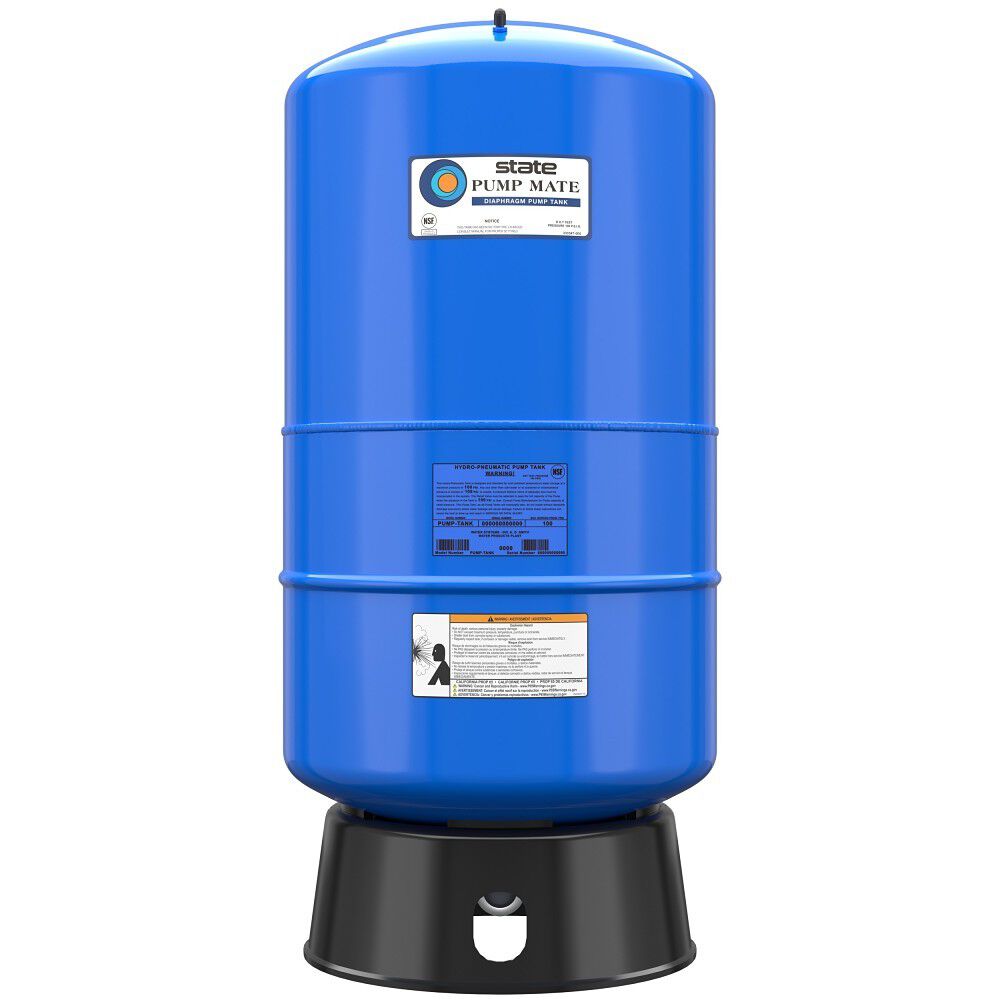

A pump tank is an essential part of any well system. This State well tank delivers these benefits: it stores a supplemental water supply between pump cycles, reducing the number of pump cycles throughout the day increasing pump life. It maintains water pressure within your system.
Specifications
Tech Specs
Nominal Gallon Capacity
20 Gallons
Rated Storage Volume
20 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
1"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
RESIDENTIAL
Shipping Height
33.75
Shipping Length
15.75
Shipping Width
15.75
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
32.75"
Width
15.375"
Shipping Weight
30lbs
Product Literature
Technical Literature
