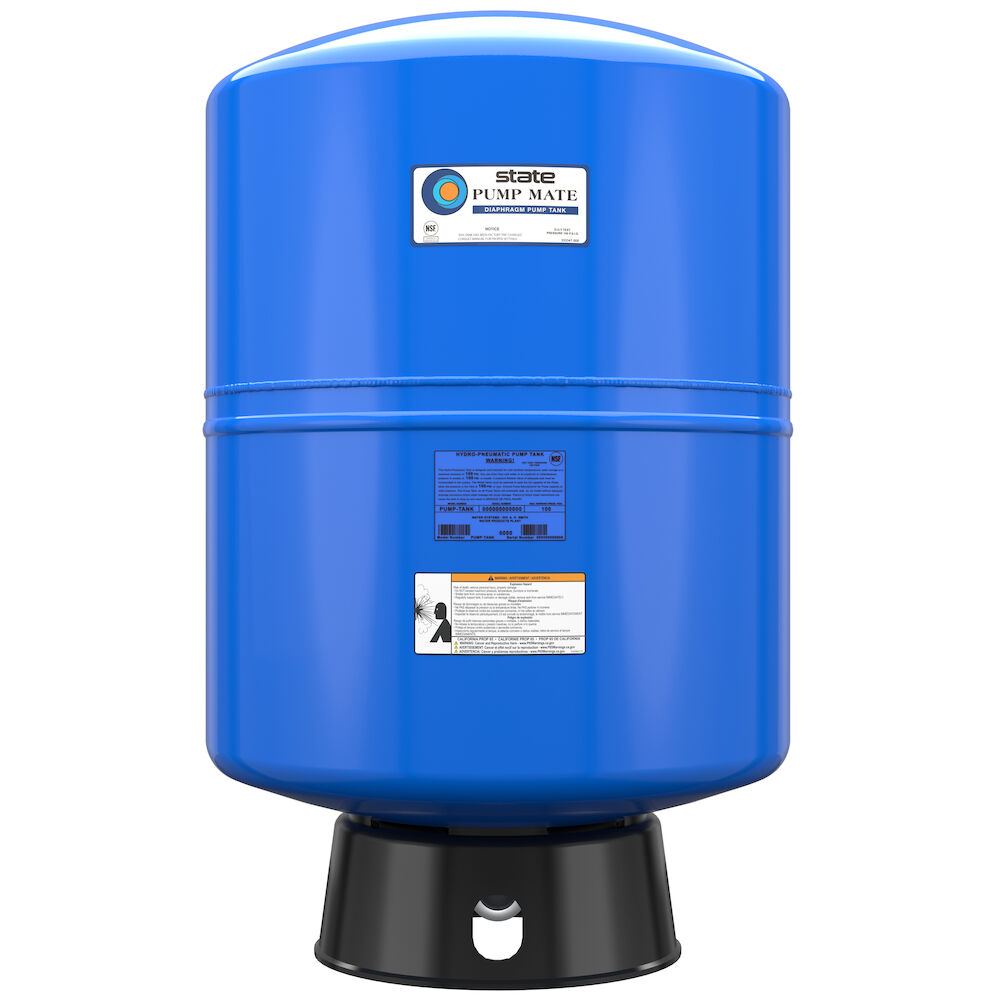

36-Gallon Free-Standing Diaphragm Pump Tank

Model SPMD-36S 100
Capacity (Gallons)

  • Pre-pressurized diaphragm operation
  • Maximum working pressure 100 psi.
  • Lightweight, double drawn steel contruction
  • Product Details
    • Pre-pressurized diaphragm operation
    • Maximum working pressure 100 psi.
    • Lightweight, double drawn steel contruction
    • Heavy Duty Parabolic diaphragm
    • Corrosion resistant polymer base
    • Powder coated exterior finish with high UV resistance
    • Fused water chamber with powder coated interior
    • NSF 612G/372 galvanized lead-free connection
    • Projection welded air valve.
    • 5-year limited warranty

    • A pump tank is an essential part of any well system. This State well tank delivers these benefits: it stores a supplemental water supply between pump cycles, reducing the number of pump cycles throughout the day increasing pump life. It maintains water pressure within your system.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    36 Gallons
    Rated Storage Volume
    36 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    1.25"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    COMMERCIAL
    Shipping Height
    33.125
    Shipping Length
    20.75
    Shipping Width
    20.75
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    32.375"
    Width
    20"
    Shipping Weight
    45lbs
    Product Literature
    Technical Literature
    Find a Replacement
    Current Product
    Option 2
    36-Gallon Free-Standing Diaphragm Pump Tank
    36-Gallon Free-Standing Diaphragm Pump Tank
    SPMD-36S
    SSB-36S
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    36 Gallons
    36 Gallons
    Rated Storage Volume
    36 Gallons
    36 Gallons
    Width
    20"
    20.75"
    Depth
    20"
    20.75"
    Height
    32.375"
    33.125"
    Shipping Weight
    45lbs
    45lbs
    Power Source
    DIAPHRAGM
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    5 Years
    Limited Parts Warranty
    0 Years
    0 Years
    Water Connection Location
    BOTTOM
    BOTTOM
    Water Connection Size
    1.25"
    1"
    Thermal Efficiency
    0%
    0%
