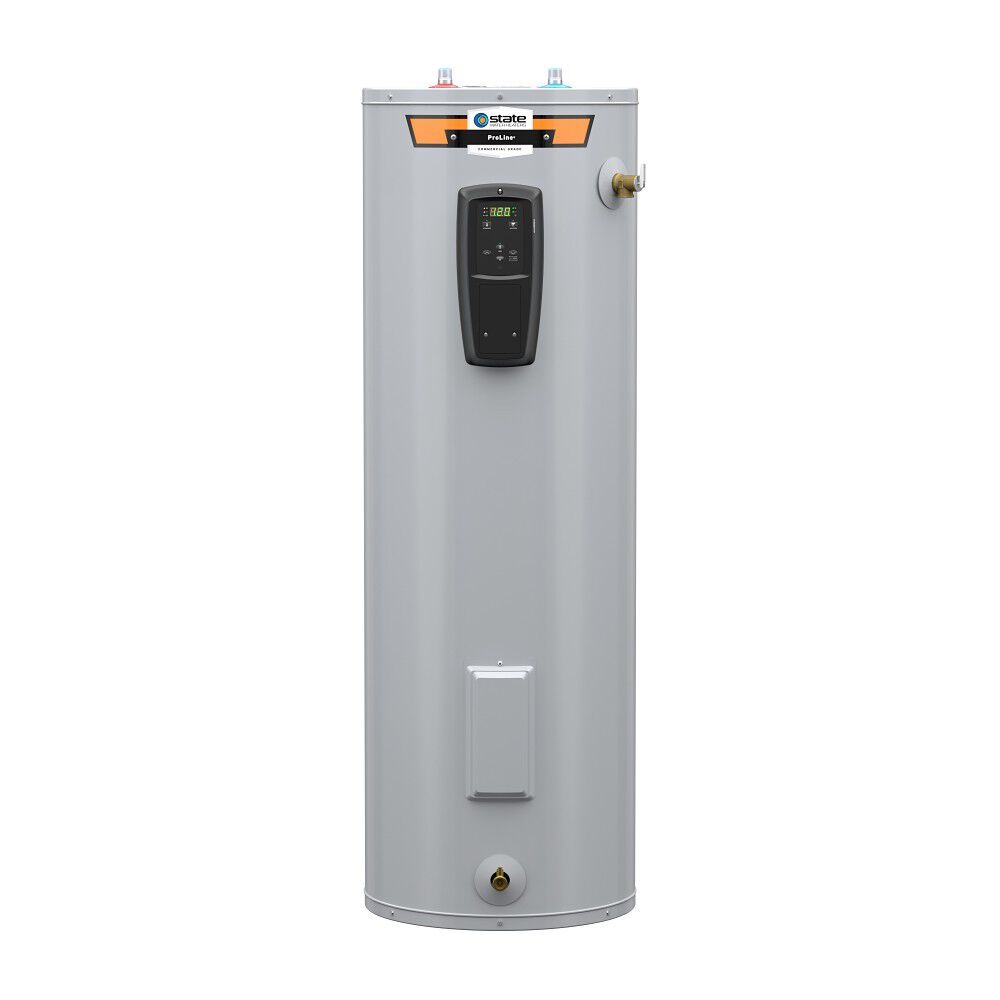

ProLine® Grid-Capable 55-Gallon Tall Electric Tank Water Heater

Model EE6-55-DURT 100
Capacity (Gallons)
First Hour Rating
Limited Tank Warranty
UEF
Height Classification

  • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
  • User Friendly Controls—Simple controls make it easy to set operating modes & review diagnostics
  • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Product Details
    • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
    • User Friendly Controls—Simple controls make it easy to set operating modes & review diagnostics
    • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Sturdy Build—Long-lasting lower Incoloy™ stainless steel element
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed

    • Take advantage of advanced utility savings with ProLine® Grid-Capable water heaters. The built-in CTA-2045 port allows homeowners to connect to local Utility Smart Grid Programs where available (requires module from local utility). Meets state of Washington and Oregon requirements.

      The EE6-55-DURT ProLine® Grid-Capable 55-gallon (nominal) Electric Tank water heater features dual 4,500-watt commercial-grade heating elements to deliver a first hour rating of 75 gallon (nominal)s at a Uniform Energy Factor of 0.94.

      Reduce heat loss and save energy with environmentally-friendly insulation and factory-installed heat trap nipples.

      This ProLine® water heater is designed with State's superior tank protection, including a stainless steel CoreGard™ anode rod and Blue Diamond® glass lining. These features help protect the tank from the corrosive effects of water and extend the life of the water heater, which has a 6-year limited tank warranty.

      State ProLine® residential water heaters are built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    55 Gallons
    Rated Storage Volume
    55 Gallons
    UEF
    0.94
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    75 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Height to T&P
    48.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    60.63
    Shipping Length
    28.25
    Shipping Width
    25.13
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    56.5"
    Diameter
    24"
    Shipping Weight
    145lbs
