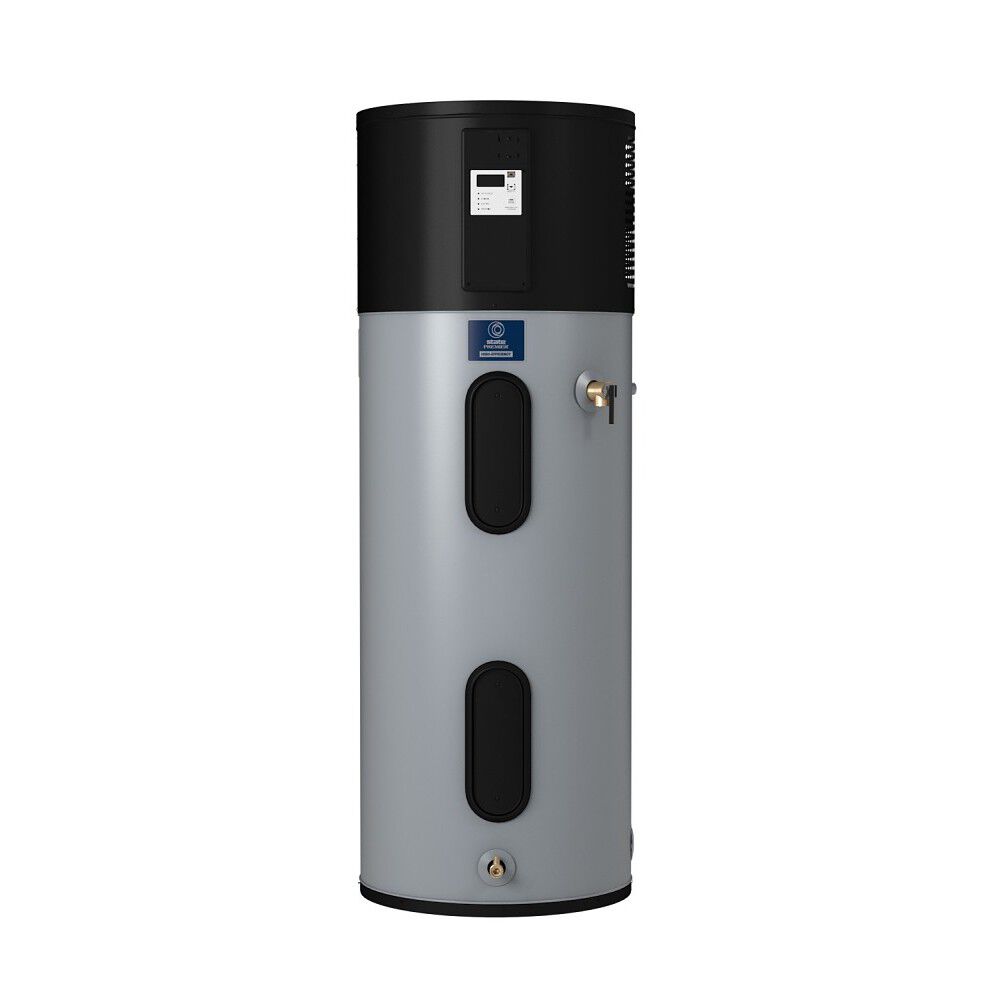

Premier® 66-Gallon Smart Hybrid Electric Heat Pump Water Heater

Model HP6-66-DHPT 130
4.5 out of 5 Customer Rating
Capacity (Gallons)
Limited Tank Warranty

  • ENERGY STAR® certified with up to 3.42 UEF rating
  • High-Efficiency & Lower Costs—Reduces water heating costs by up to 73%, saving up to $467 per year in energy costs compared to standard electric water heaters*
  • User-Friendly Display—Digital control makes it easier to set to preferred water temperature, operating modes, and communicate diagnostics
  • Product Details
    • ENERGY STAR® certified with up to 3.42 UEF rating
    • High-Efficiency & Lower Costs—Reduces water heating costs by up to 73%, saving up to $467 per year in energy costs compared to standard electric water heaters*
    • User-Friendly Display—Digital control makes it easier to set to preferred water temperature, operating modes, and communicate diagnostics
    • Quiet Operation—Operates at 51 dBA (no accessory vibration isolation kit required).
    • Match Water Heating Demands—Choose a mode that fits your needs from Hybrid, Efficiency, Electric, or Vacation.
    • Backup Water Heating System—Backup dual water heating elements provide hot water if the heat pump is unable to operate.
    • Qualify for up to $2,000 in Federal Tax Credits—Check with your tax advisor for applicability.

    • The Premier® Hybrid Electric Heat Pump reduces water heating cost by up to 73% through an innovative design that pulls environmental heat while dehumidifying and cooling the ambient air at the same time.

      This heat pump technology delivers tremendous savings by generating heat through the heat pump technology instead of the heating elements. It offers premium features including a user-friendly display, vacation mode to save money while you are away, and a heavy duty anode that protects your tank for 6 years. In addition to the heat pump technology, this model also has two heating elements that help the water heater recover quickly during periods of high demand. This heat pump is Northwest Energy Efficiency Alliance (NEEA) qualified.

      This heat pump water heater is designed with State's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty.

      State’s heat pump water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors. ProLine® XE models feature versatile high efficiency technologies.

      *Comparing 80-gallon Premier AL heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    66 Gallons
    Rated Storage Volume
    67 Gallons
    UEF
    3.42
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    79 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    38.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    67
    Shipping Length
    32.25
    Shipping Width
    29.125
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    61"
    Diameter
    26.5"
    Shipping Weight
    289lbs
