Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Lightweight, double drawn steel contruction
- Heavy Duty Parabolic diaphragm
- Corrosion resistant polymer base
- Powder coated exterior finish with high UV resistance
- Fused water chamber with powder coated interior
- Projection welded air valve.

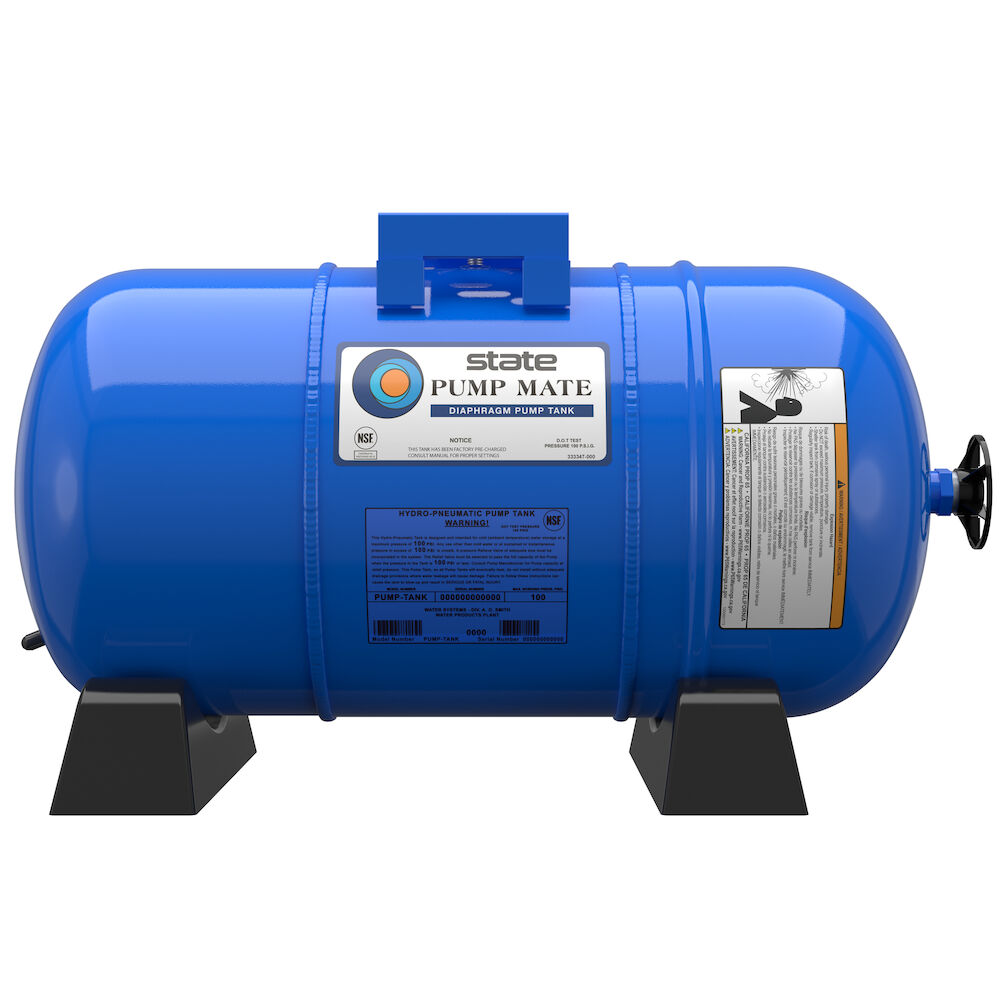

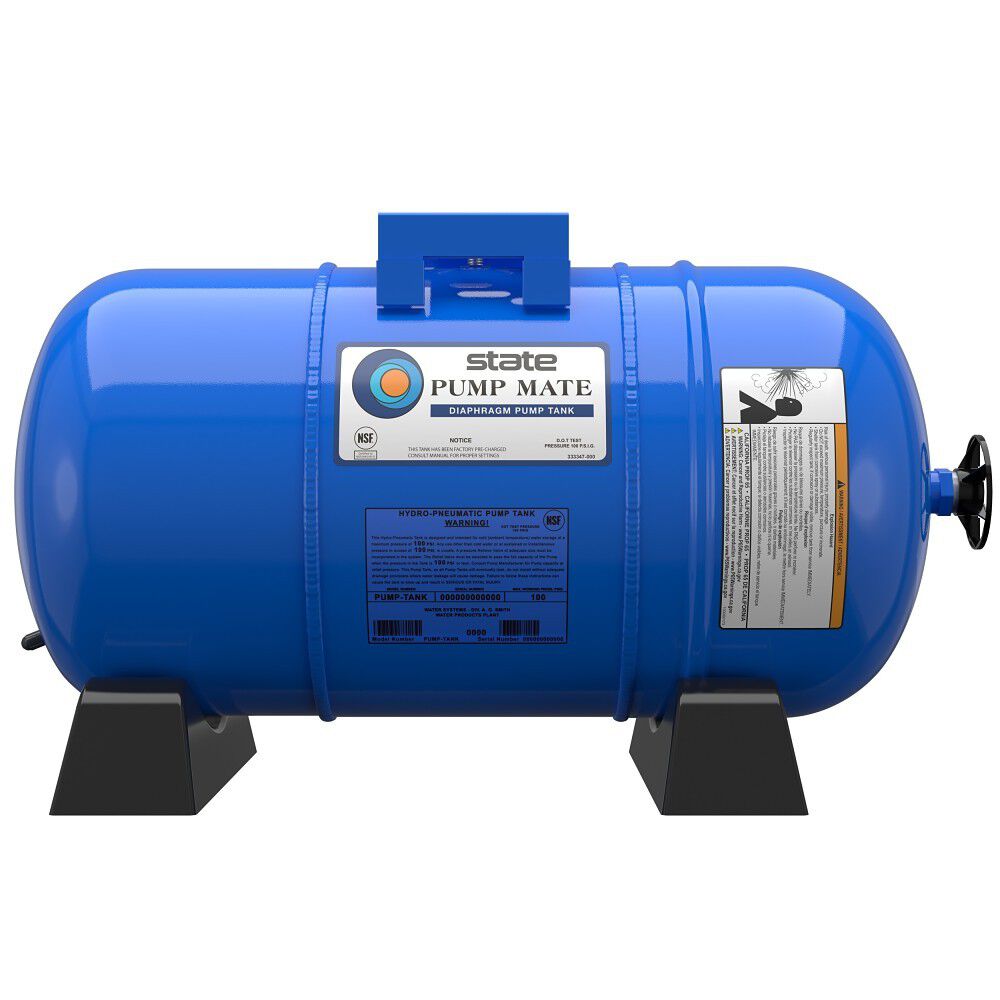

A pump tank is an essential part of any well system. This State well tank delivers these benefits: it stores a supplemental water supply between pump cycles, reducing the number of pump cycles throughout the day increasing pump life. It maintains water pressure within your system.
Specifications
Tech Specs
Nominal Gallon Capacity
7 Gallons
Rated Storage Volume
7.3 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
SIDE
Water Connection Size
3/4-in"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
PT
Shipping Height
24.25
Shipping Length
11.25
Shipping Width
12.25
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
24.25"
Width
12.25"
Shipping Weight
16lbs
Product Literature
Technical Literature
