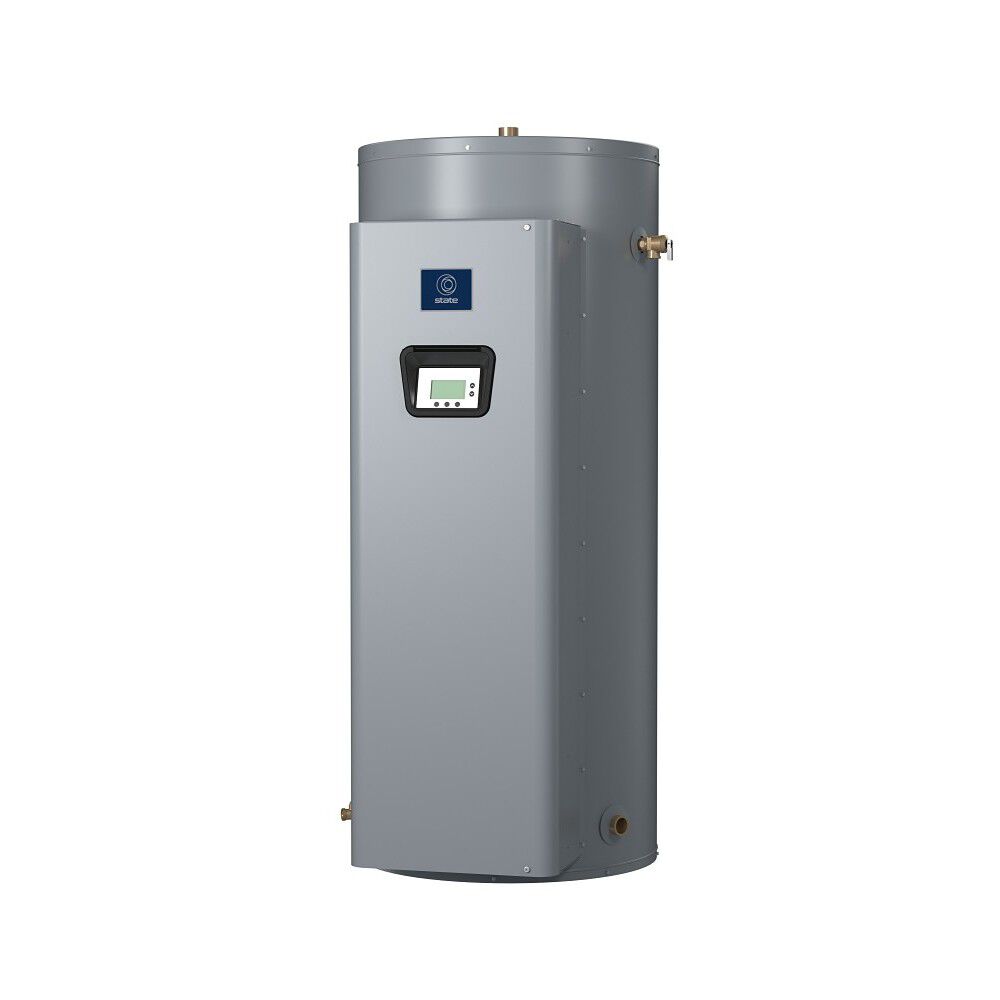

Sandblaster® Immersion Thermostat Commercial Electric

Model CSB-120-15-IFE 100
Capacity (Gallons)
ASME Indicator

  • Designed for use as a recovery heater having its own storage tank or booster for supplying sanitizing rinse water for dish washing.
  • Meets the thermal efficiency and or standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1.
  • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
  • Product Details
    • Designed for use as a recovery heater having its own storage tank or booster for supplying sanitizing rinse water for dish washing.
    • Meets the thermal efficiency and or standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1.
    • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
    • Immersion Heaters - Heavy-duty medium watt density elements have incoloy sheathing and prewired leads: provides excellent protection against oxidation and scaling
    • Power Circuit Fusing protects elements and contactors from shortcircuits, overloading or line surges. Meets National Electric Code requirements (fusing required when current draw exceeds 48 amps).
    • Linear Sequencing - Banks of heating elements (3 elements per bank) are energized according to adjustable (1 to 20°F) differential set points for each bank. First bank on is the last bank off. Helps reduce current surge and provides accurate water temperature control.
    • Dual commercial-grade anode rods for maximum corrosion protection
    • Simplified circuitry, color coded for ease of service
    • 3-year limited tank and 1-year limited parts warranty

    • The Sandblaster® line of commercial electric water heaters features our Incoloy Elements, proven automatic self-cleaning design to keep sediment from settling in the tank, thus keeping it extremely energy efficient at all times. The CSB-I models now feature a high tech electronic control for added ease of operation & Service.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    119 Gallons
    Rated Storage Volume
    108 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    54.65
    Installation Type
    INDOOR
    Max Wattage
    15,000
    Number of Elements
    3
    Application
    COMMERCIAL
    Shipping Height
    71
    Shipping Length
    37.75
    Shipping Width
    33.25
    Side Loop
    No
    Voltage
    480
    Dimension & Venting
    Type
    Water Heater
    Height
    62.25"
    Diameter
    29.5"
    Width
    29.5"
    Shipping Weight
    431lbs
