Product Details
- Thirteen sizes; 6 thru 119 gallon capacity
- 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta
- Factory-installed Terminal block on most models
- Tank interior is coated with glass specially designed by State Water Heaters for water heater use.
- Limited Warranty Outline - If the tank should leak any time during the first three years, under the terms of the warranty, State Water Heaters will furnish a replacement heater; installation, labor, handling and local delivery extra

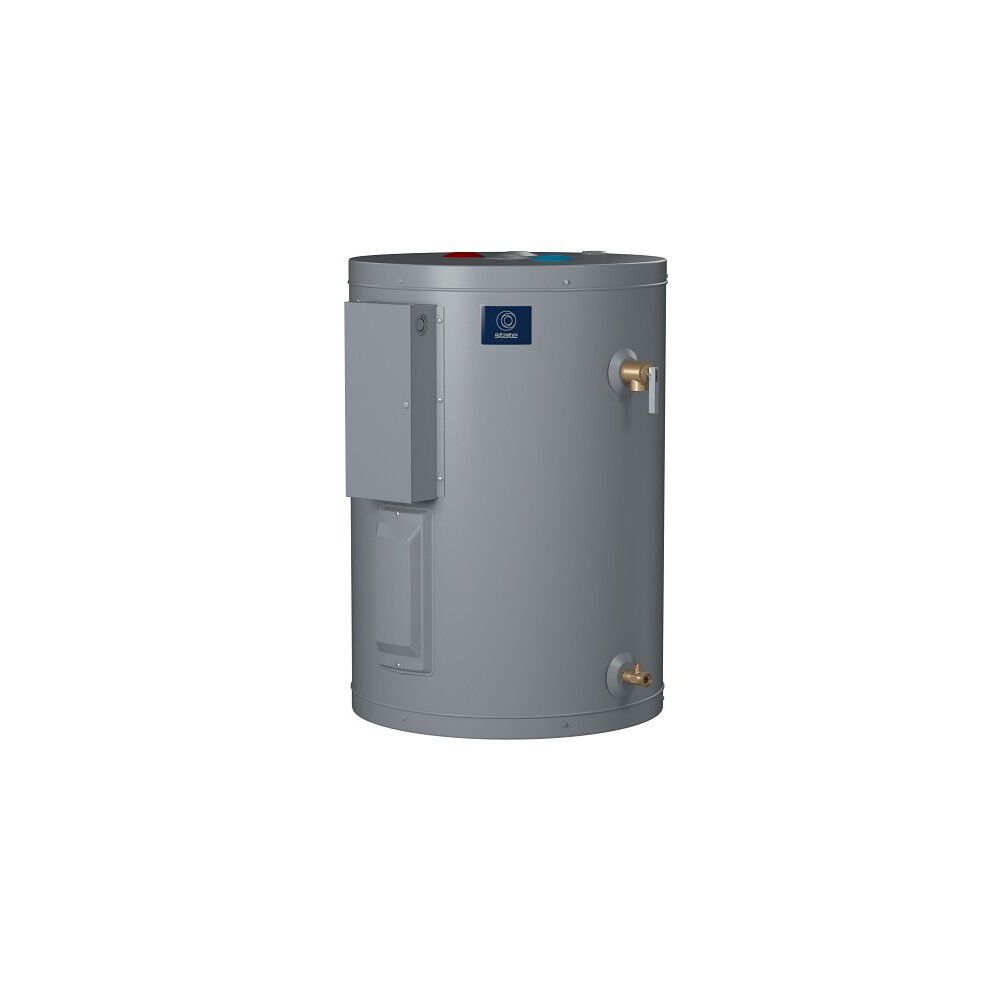

The State Light-Duty Patriot™ Commercial Electric Water Heaters deliver flexibility. For under-counter installations, the Lowboy and Compact models are available from 6-gallon through 50-gallon sizes and heights from 15-1/2 to 32-1/4.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
37 Gallons
UEF
0.92
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
Water Connection Location
TOP
First Hour Rating
55 Gallons
ASME Certified
No
Destination Country
US
Installation Type
INDOOR
Max Wattage
6,000
Number of Elements
2
Application
COMMERCIAL
Shipping Height
57.5
Shipping Length
21.13
Shipping Width
23.88
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Diameter
20.5"
Shipping Weight
133lbs
