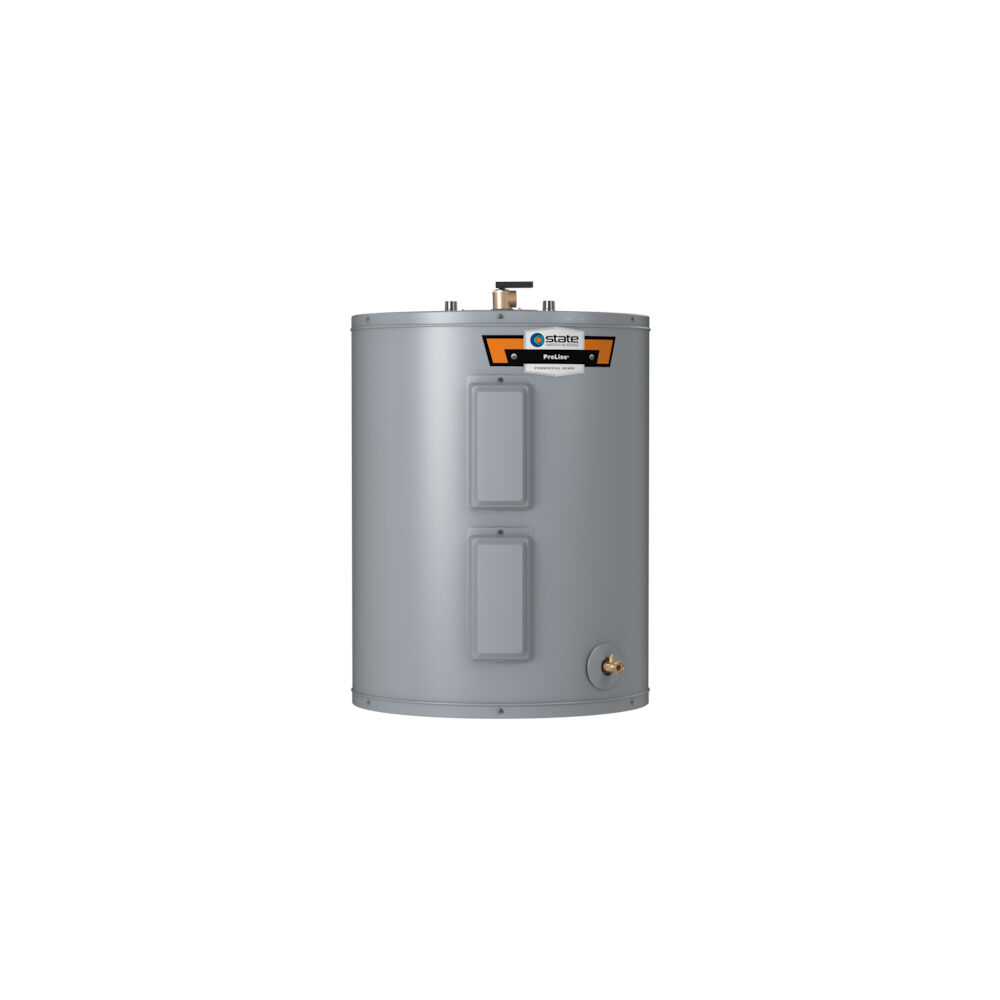

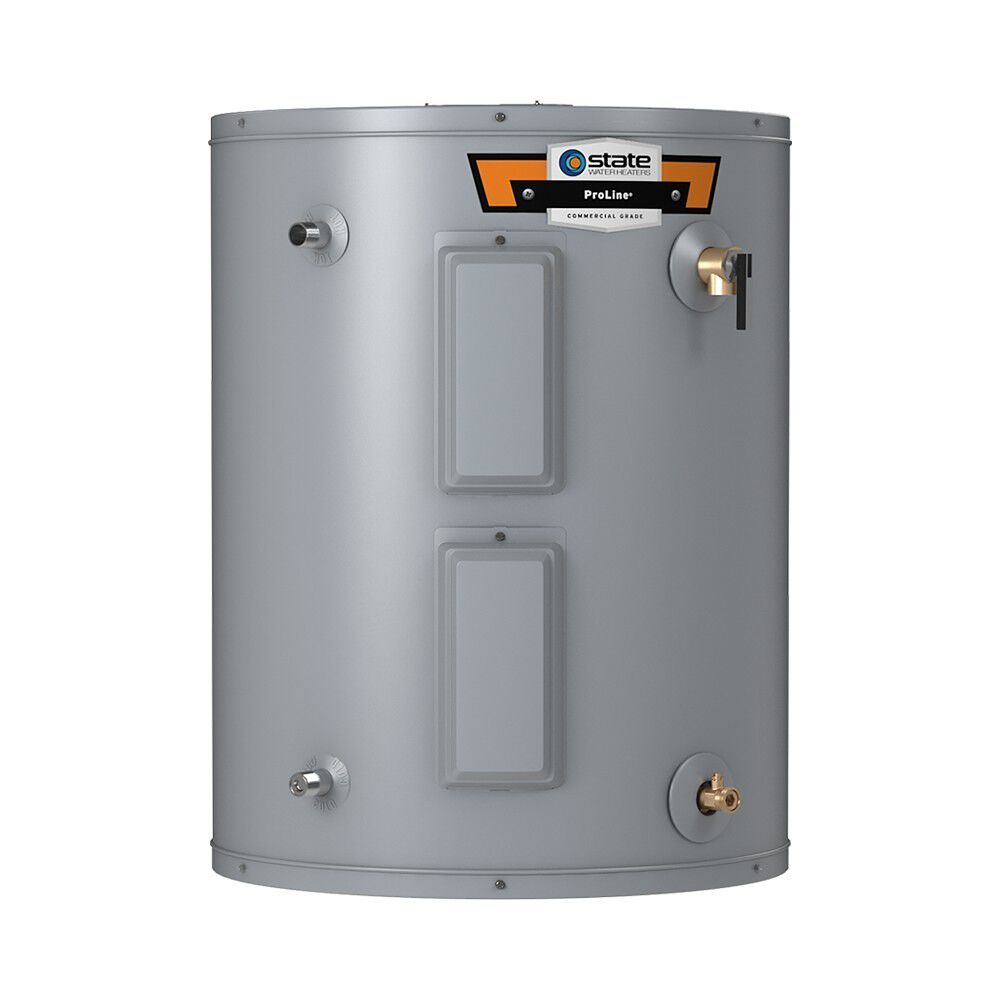

ProLine® Specialty Lowboy Side Connect 38-Gallon Electric Water Heater

Model EN6-40-DOMBS 100
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Steady Hot Water—Delivers 57 gallons of hot water in the first hour
  • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Compact Design—Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces

    • Find a Local Pro
    Product Details
    • Steady Hot Water—Delivers 57 gallons of hot water in the first hour
    • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Compact Design—Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
    • Convenient Connection Points—Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The ProLine® Specialty Lowboy Side Connect electric water heater features a small footprint, making it an ideal choice where installation space is limited, such as under counters and in crawl spaces.

      The EN6-40-DOMBS features a 38-gallon (nominal) tank and delivers a first hour rating of 57 gallons at a Uniform Energy Factor of 0.94. The sacrificial anode helps protect the tank from the corrosive effects of water, and the water heater includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    38 Gallons
    Rated Storage Volume
    35 Gallons
    UEF
    0.94
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    57 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    35.81
    Shipping Length
    28
    Shipping Width
    25
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Water Heater
    Height
    31.25"
    Diameter
    24"
    Shipping Weight
    121lbs
