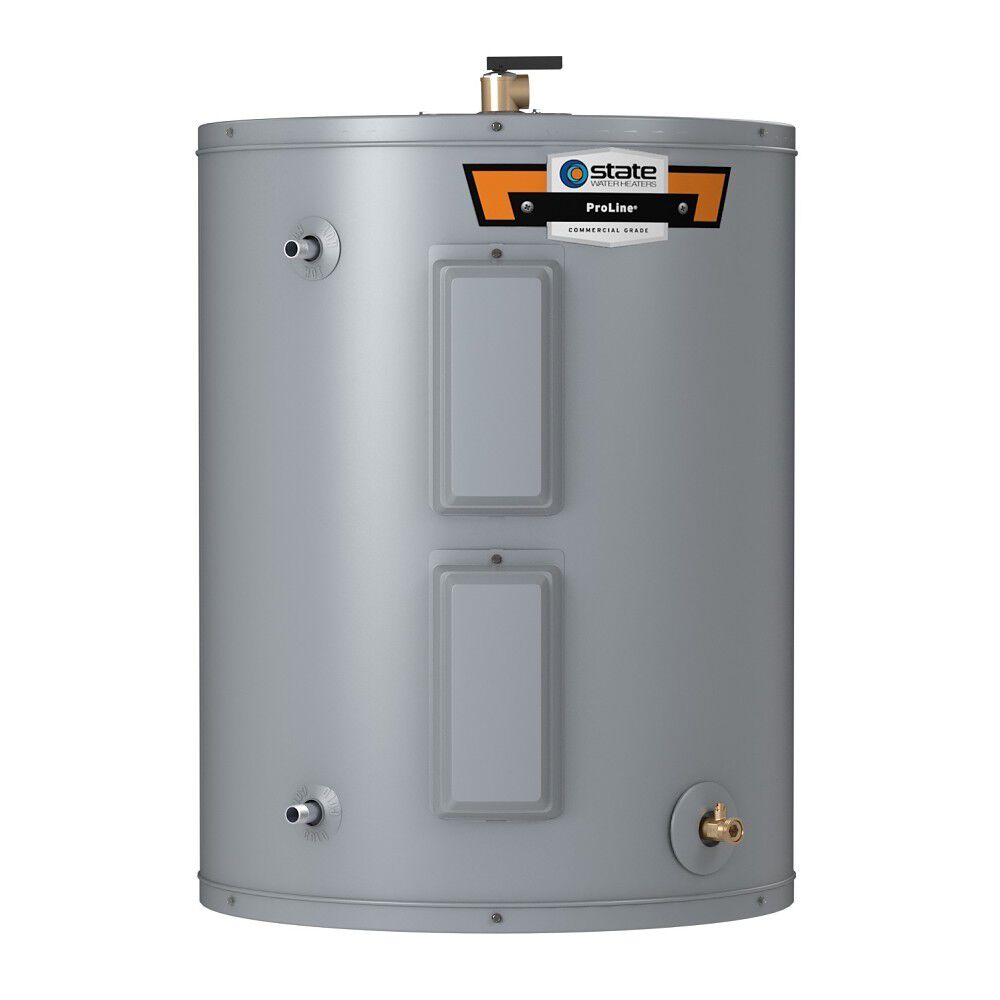

ProLine® Specialty Lowboy Top Connect 28-Gallon Electric Water Heater

Model EN6-30-DOLS 100
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Steady Hot Water—Delivers 44 gallons of hot water in the first hour
  • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Sturdy Build—Long-lasting lower Incoloy™ stainless steel element

    • Find a Local Pro
    Product Details
    • Steady Hot Water—Delivers 44 gallons of hot water in the first hour
    • Durable Heating Elements—Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Sturdy Build—Long-lasting lower Incoloy™ stainless steel element
    • Compact Design—Lowboy design with top connections is ideal for tight spaces or low height clearance
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

      • The State ProLine® Specialty Lowboy Top Connect electric water heater is the reliable choice when you want to maximize hot water output and energy savings. The EN6-30-DOLS incorporates a 28-gallon (nominal) tank and dual 4,500-watt elements to deliver a first hour rating of 44 gallons at a highly efficient 0.90 Uniform Energy Factor rating.

      Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss to optimize energy savings.

      This ProLine® water heater utilizes State's superior commercial-grade tank protection. Advanced tank features include a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. The EN6-30-DOLS includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    28 Gallons
    Rated Storage Volume
    25.6 Gallons
    UEF
    0.9
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    44 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    21.75
    Installation Type
    INDOOR
    Max Wattage
    1,500
    Number of Elements
    2
    Shipping Height
    33.69
    Shipping Length
    28.25
    Shipping Width
    25.13
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    31.25"
    Diameter
    24"
    Width
    24"
    Shipping Weight
    115lbs
    Maintenance & Troubleshooting
    Maintenance

    ProLine® Electric Adjusting the Thermostat

    ProLine® Electric Checking and Replacing Lower Heating Element.

    ProLine® Electric Checking and Replacing Upper Heating Element.

    ProLine® Electric Not Enough Hot Water

    ProLine® Electric Replacing the Lower Thermostat

    ProLine® Electric Replacing the Upper Thermostat

    Troubleshooting

    ProLine® Electric Tripped ECO

    ProLine® No Hot Water
