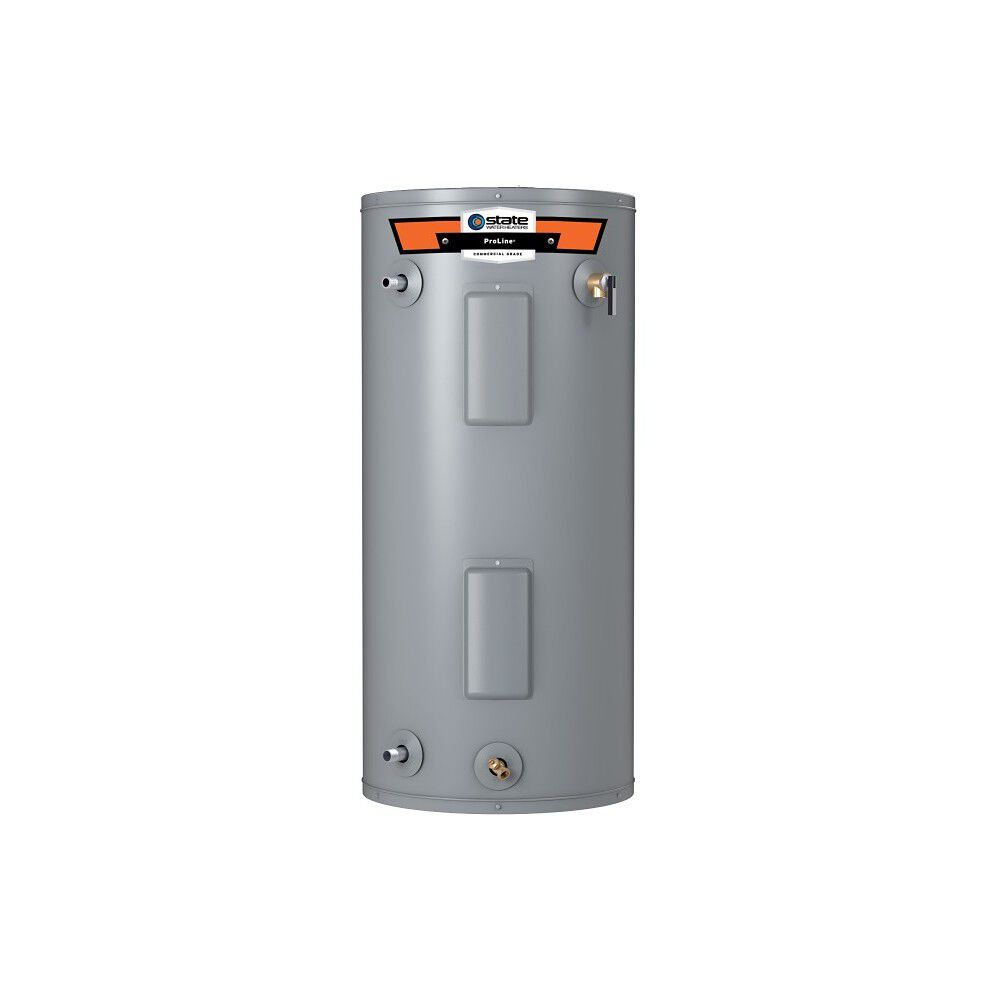

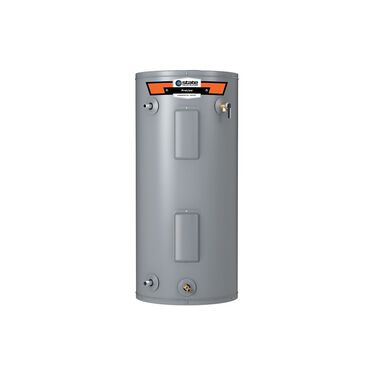

ProLine® 40-Gallon 120-Volt 3000-Watt Mobile Home Electric Water Heater

Model EN6-40-DMHSW 100
5 out of 5 Customer Rating
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
First Hour Rating

  • Steady Hot Water—Delivers 40 gallons of hot water in the first hour
  • HUD Compliant—Approved for use in mobile homes/manufactured housing
  • Durable Heating Elements—Screw-in, direct immersion, commercial-grade heating elements for maximum efficiency
  • Product Details
    • Steady Hot Water—Delivers 40 gallons of hot water in the first hour
    • HUD Compliant—Approved for use in mobile homes/manufactured housing
    • Durable Heating Elements—Screw-in, direct immersion, commercial-grade heating elements for maximum efficiency
    • Space-Saving Design—Side water connections for ease of installation in mobile home applications
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Factory-Installed Relief Valve—CSA certified and ASME rated T&P relief valve is factory-installed
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The State ProLine® EN6-40-DMHSW Mobile Home water heater maximizes your hot water output and features side water connections for easy installation in mobile homes / manufactured housing.

      A 40-gallon (nominal) tank and dual 3,000-watt elements @ 120V deliver a first hour rating of 40 gallons at a 0.91 Uniform Energy Factor rating.

      This ProLine® water heater features State's advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. This model includes a 6-year limited tank warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    36 Gallons
    UEF
    0.91
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    40 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    41.00
    Installation Type
    INDOOR
    Max Wattage
    3,000
    Mobile Home Compatible
    true
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.5
    Shipping Length
    26.25
    Shipping Width
    23.13
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    48.25"
    Diameter
    22"
    Width
    22"
    Shipping Weight
    109lbs
