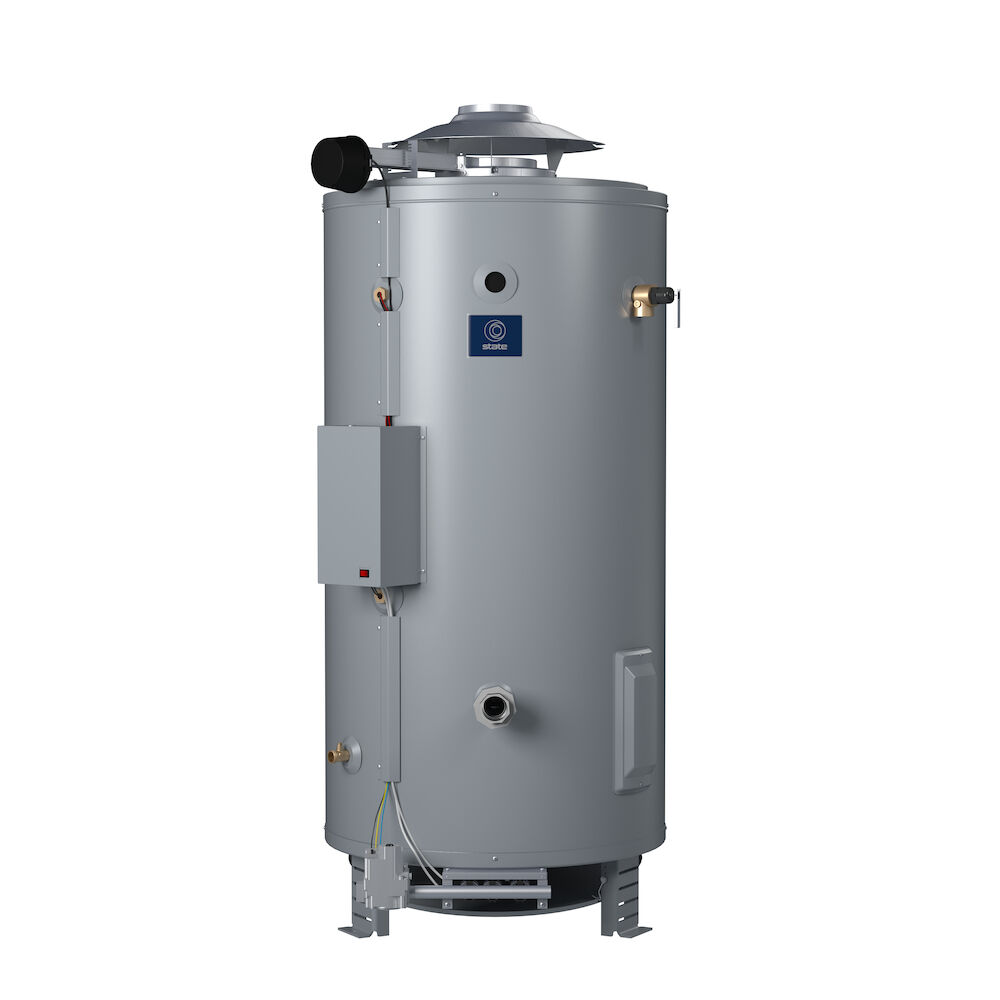

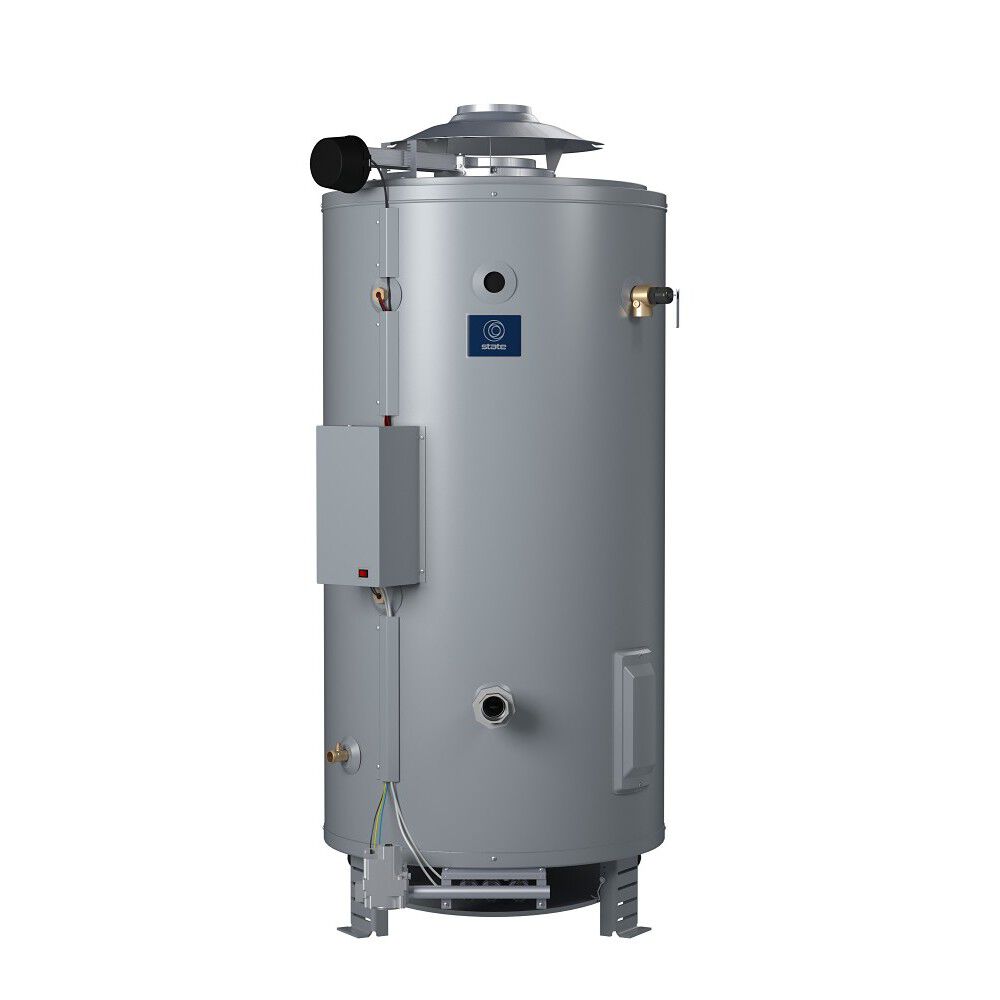

Sandblaster® Multi-Flue Commercial Gas Water Heater - SBD

Model SBD-100-390NEA 118
Capacity (Gallons)
Fuel Source
Maximum BTU's
ASME Indicator
Diameter

  • Self-Cleaning Hydro Cannon™
  • Automatic Flue Damper (120 - 390 Models)
  • Three Water Connection Options
  • Product Details
    • Self-Cleaning Hydro Cannon™
    • Automatic Flue Damper (120 - 390 Models)
    • Three Water Connection Options
    • Intermittent Electronic Ignition
    • Glasslined Tank with Multiple Anode Rods
    • CoreGard™ anode rods with stainless steel core provide additional corrosion protection
    • Intermittent electronic ignition eliminates standing pilot, saving energy
    • Eliminator™ self-cleaning system reduces sediment build-up, maintaining rated thermal efficiency and reducing water heating costs (operates when cold water is connected through front)
    • Factory-installed, CSA Certified and ASME Rated T&P Relief Valve
    • 3-year limited tank and 1-year limited parts warranty

    • Sandblaster® is the original money-saving self-cleaning water heater. It provides outstanding performance and installation flexibility for new construction and replacement applications. The Sandblaster SBD series offers installer-friendly features, including compact low-profile design, multiple options for water connections and low installation clearances.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    100 Gallons
    Rated Storage Volume
    95 Gallons
    Thermal Efficiency
    80%
    Maximum BTUs
    390,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    5
    Destination Country
    US
    Fuel Source
    NATURAL
    Height to Gas Valve
    4.50
    Height to T&P
    58.25
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Shipping Height
    83.5
    Shipping Length
    38
    Shipping Width
    34
    Side Loop
    No
    Vent Material
    Steel
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    75.5"
    Diameter
    30.25"
    Shipping Weight
    875lbs
