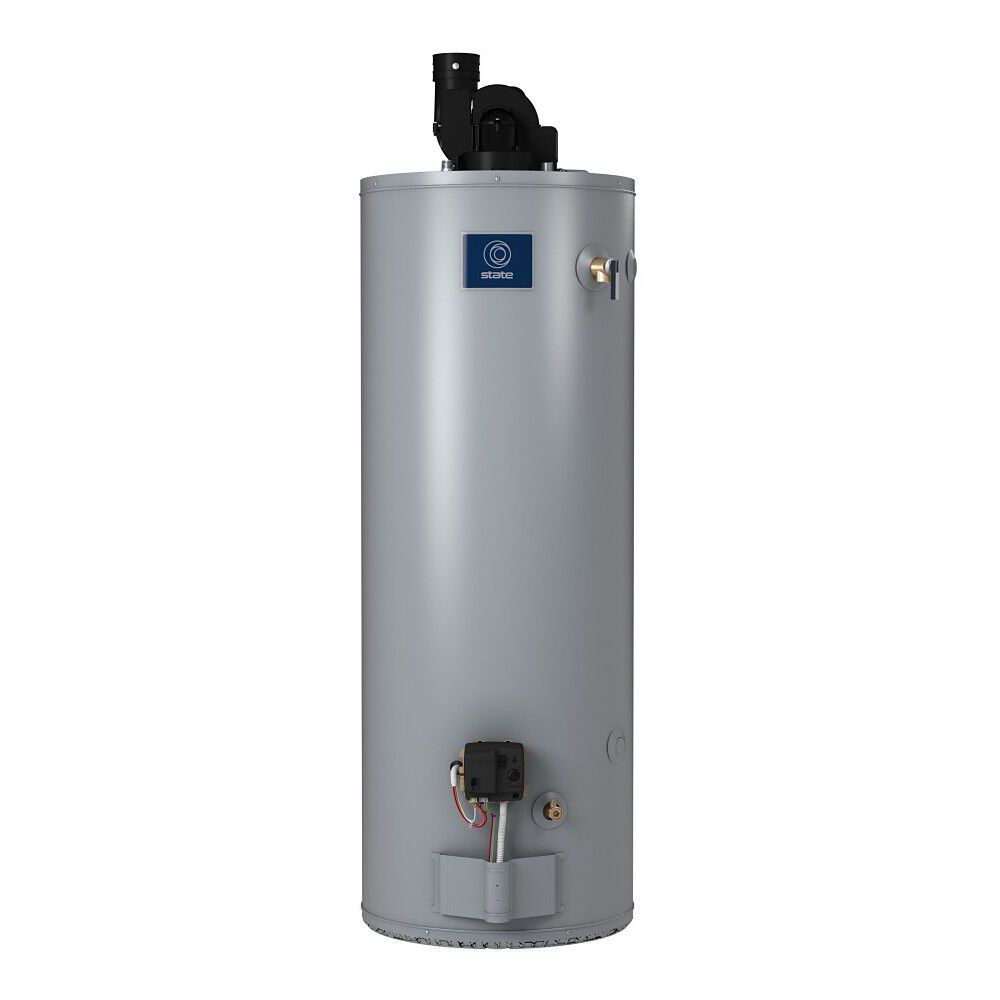

Sandblaster® FORCE® Power Direct Vent Commercial Gas Water Heater

Name: Sandblaster® FORCE® Power Direct Vent Commercial Gas Water Heater
SKU: SDV-75-76PE

Model SDV-75-76PE 311

Capacity (Gallons)

Fuel Source

First Hour Rating

Side Loop

Delivers 74 GPH at 100°F Rise

DynaClean™ automatic cleaning system protects against sediment build-up

Patented Blue Diamond® glass tank lining protects against corrosion

Find a Local Pro

Features & Benefits

Product Details

Delivers 74 GPH at 100°F Rise
DynaClean™ automatic cleaning system protects against sediment build-up
Patented Blue Diamond® glass tank lining protects against corrosion
Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
Enhanced flow brass drain valve designed for easy maintenance and easy operation
Factory-installed, CSA Certified and ASME Rated T&P Relief Valve
Flexible power direct vent design vents through the roof or sidewall venting with 3” or 4” PVC, CPVC, ABS or polypropylene
Quiet modular blower has built-in safety device preventing pilot or main burner operation if blower is not operating
Maximum hydrostatic working pressure 150 PSI
3-year limited tank and 1-year limited parts warranty

The SDV75-76 FORCE® tank-type commercial gas water heater is intended for light-duty applications such as small office buildings and duplex apartment homes. The SDV75-76 Force features a power direct-vent design, with a factory-installed blower. The blower permits sealed combustion directvent operation, with separate venting and air intake runs from outside the structure. The SDV75-76 Force offers installation versatility by allowing venting and intake runs up to 50 equivalent feet, using 3” Schedule 40 PVC pipe. The power direct-vent design also eliminates the potential for performance and safety problems caused by negative air pressure, a problem found in many commercial applications with inadequate indoor ventilation.

Specifications
