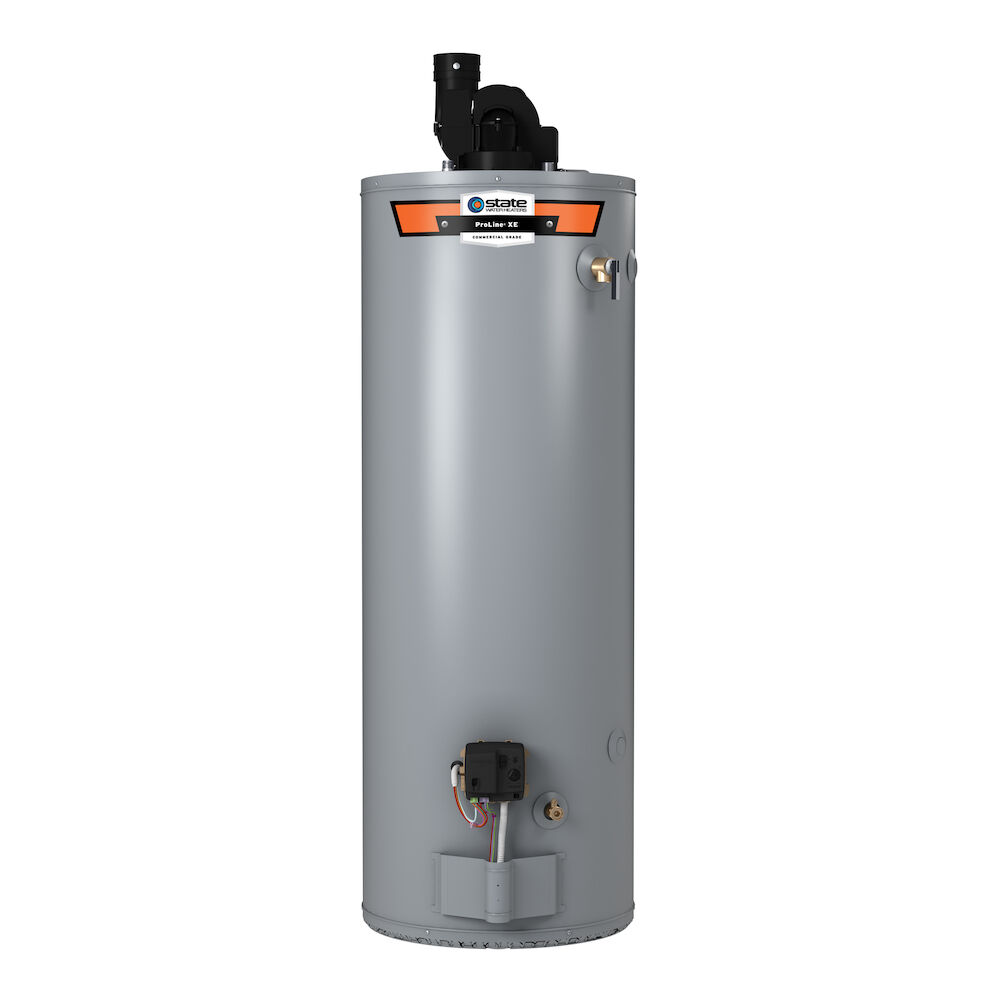

ProLine® XE Ultra-Low NOx 50-Gallon Power Direct Vent Ultra-Low NOx Natural Gas Water Heater

Model GS6-50-UBPDT 100
5 out of 5 Customer Rating
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Blanket

  • Meets Your Hot Water Demands—Delivers a 75-gallon first hour rating
  • Energy Efficient—40,000 BTU input power direct vent design delivers up to 0.70 Uniform Energy Factor
  • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
  • Product Details
    • Meets Your Hot Water Demands—Delivers a 75-gallon first hour rating
    • Energy Efficient—40,000 BTU input power direct vent design delivers up to 0.70 Uniform Energy Factor
    • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® XE Power Direct Vent Ultra-Low NOx Natural Gas Water Heater features a two-pipe combustion system that draws clean air in from outside the home, eliminating any concerns about indoor ventilation. The GS6-50-UBPDT features a 50-gallon (nominal) tank and a 40,000 BTU gas burner to deliver a first-hour rating of 75 gallons and a recovery rate of 43 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-50-UBPDT features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.7
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    First Hour Rating
    75 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    13.50
    Height to T&P
    52.00
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    70.25
    Shipping Length
    31.38
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59"
    Diameter
    22"
    Shipping Weight
    195lbs
    Vent Type
    Power Direct Vent
