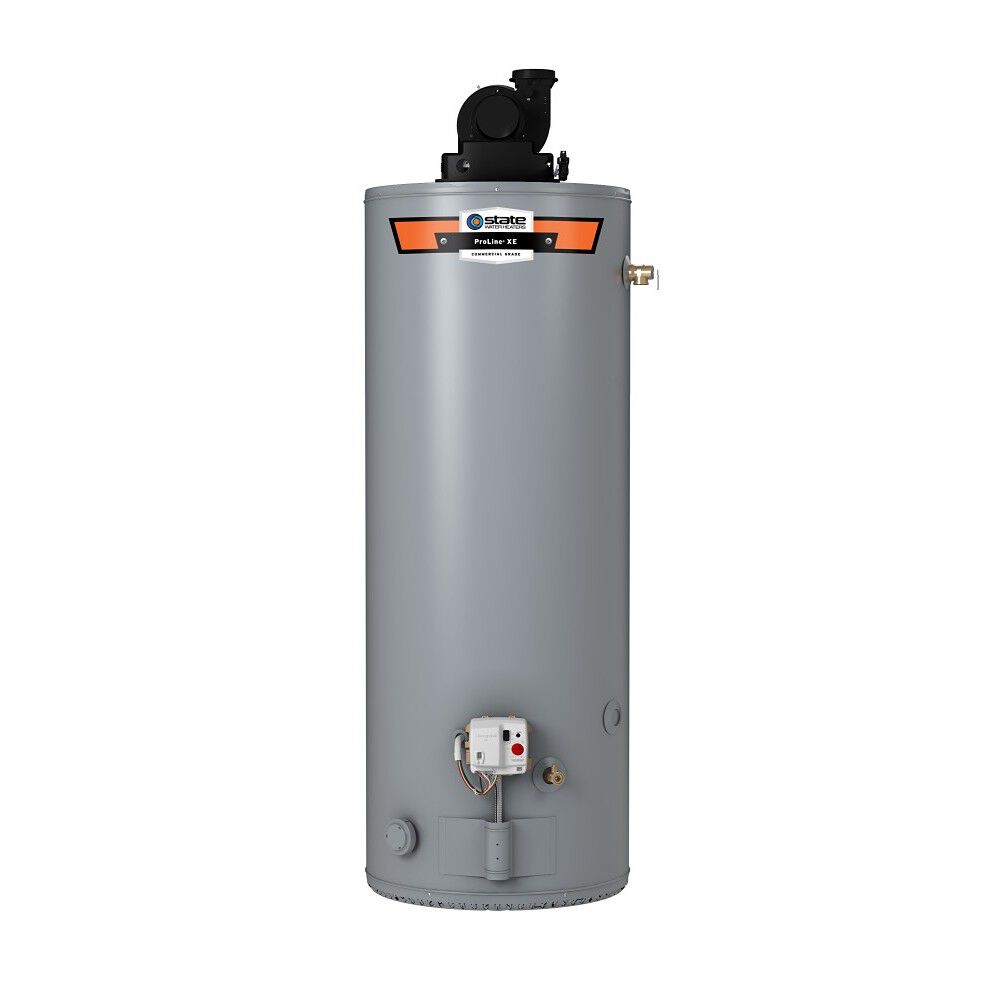

ProLine® XE Low NOx 40-Gallon Power Vent Liquid Propane Water Heater

Model GS6-40-HBVIS 201
5 out of 5 Customer Rating
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Energy Efficient—40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
  • What to Expect from this Model
    modal-clock
    25.8 minutes
    single shower length
    modal-frame
    3.2 showers
    back-to-back
    modal-frame
    2.4 showers
    at the same time
    modal-tank-capacity
    61 gallons
    max tub size
    modal-cost
    $722/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Energy Efficient—40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® XE Power Vent Liquid Propane Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3 position rotatable blower outlet. The GS6-40-HBVIS features a 40-gallon (nominal) tank and a 40,000 BTU propane burner to deliver a first-hour rating of 73 gallons and a recovery rate of 44.7 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-40-HBVIS features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.67
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    73 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to Gas Valve
    13.25
    Height to T&P
    42.50
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    61
    Shipping Length
    31.63
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    58.5"
    Diameter
    22"
    Shipping Weight
    174lbs
    Vent Type
    Power Vent
