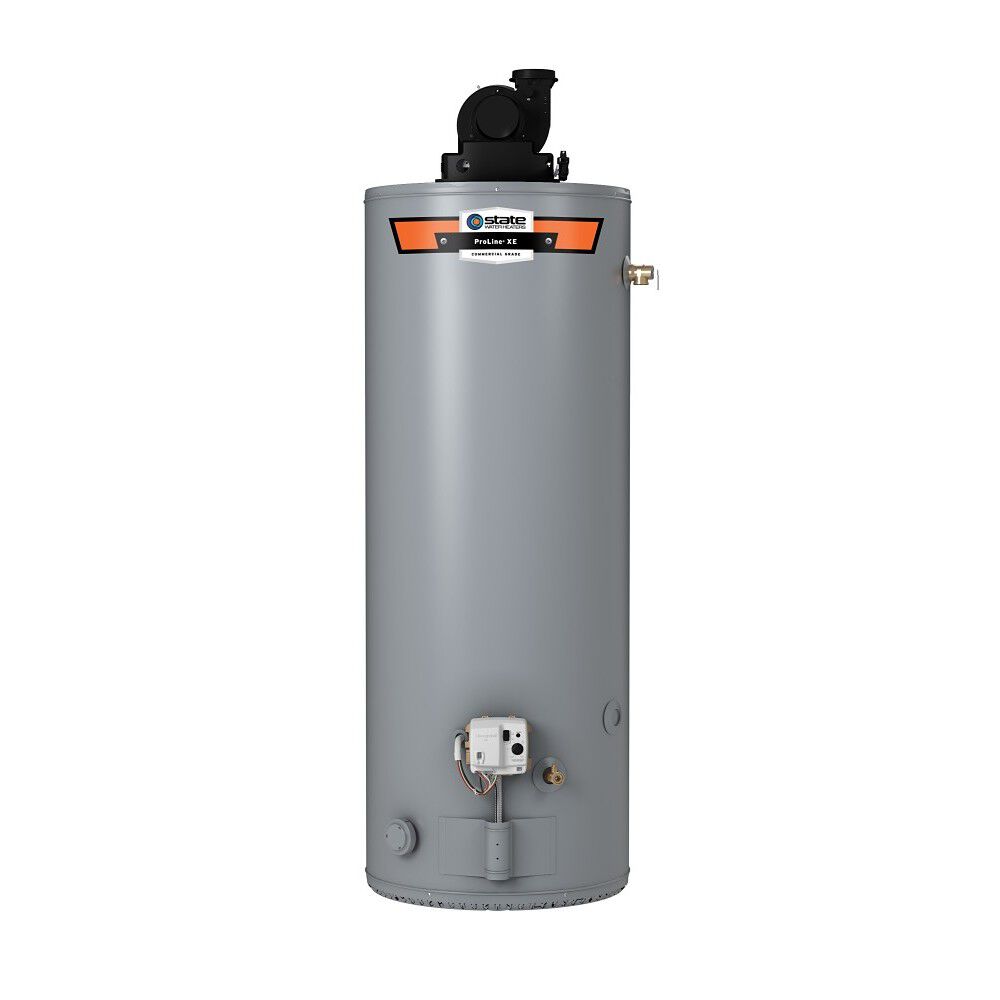

ProLine® XE Low NOx 40-Gallon Power Vent Natural Gas Water Heater

Model GS6-40-YRVITL 200
4.8 out of 5 Customer Rating
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
  • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
  • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
  • Product Details
    • Meets Your Hot Water Demands—Delivers an 87-gallon first hour rating
    • Energy Efficient—50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
    • Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
    • Lowers Gas Usage—Automatic pilot relight system reduces gas consumption and eliminates nuisance pilot outages
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® XE Power Vent Natural Gas Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3 position rotatable blower outlet. The GS6-40-YRVITL features a 40-gallon (nominal) tank and a 50,000 BTU gas burner to deliver a first-hour rating of 87 gallons and a recovery rate of 56 gallons per hour.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.

      The GS6-40-YRVITL features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.7
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Low NOx
    First Hour Rating
    87 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71
    Shipping Length
    29.25
    Shipping Width
    21.63
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59.5"
    Diameter
    20"
    Shipping Weight
    176lbs
    Vent Type
    Power Vent
