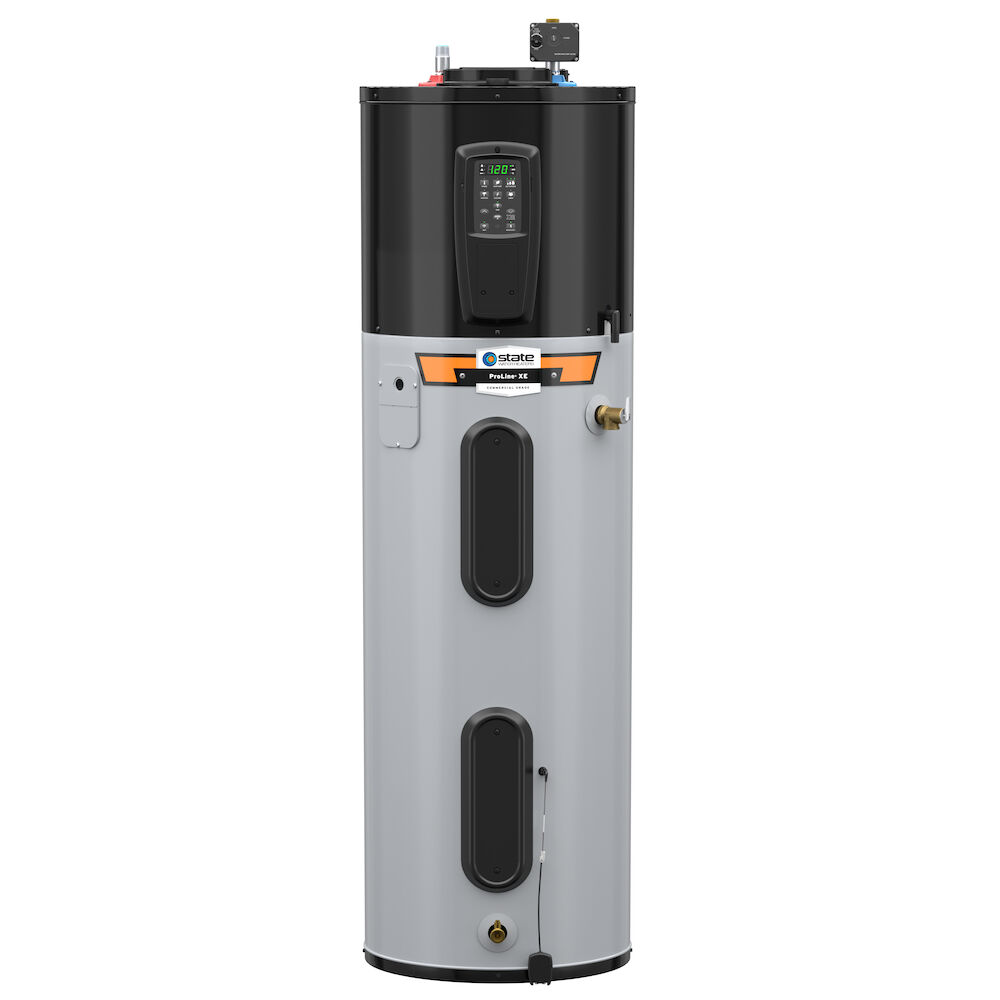

Premier® MAX 40-Gallon Smart Hybrid Electric Heat Pump Water Heater with Premium Smart Valve Technology

Model HPAX-40-DHPT 200
Capacity (Gallons)

  • Delivers 55-gallon first hour rating with dual 4,500-watt copper heating elements.
  • Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump*

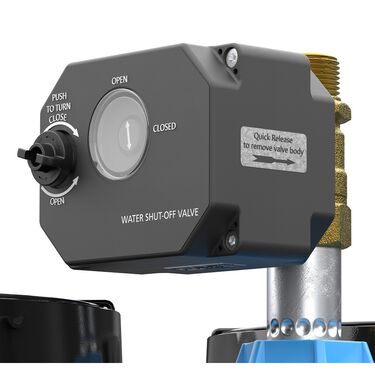

  • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak.
  • Product Details
    • Delivers 55-gallon first hour rating with dual 4,500-watt copper heating elements.
    • Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump*
    • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak.
    • High-Efficiency & Lower Costs—Save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity.
    • Whisper-Quiet Operation at 45 dBA
    • User-Friendly—Integrated iCOMM™ Smart Connectivity enables simple control , alerts, and notifications via smartphone
    • Up to $1,800 in Local Utility Rebates may be available in your area—see rebate finder for details
    • Flexible Install Options—preferred top water connection and zero clearance requirements for tighter spaces

    • The exceptionally efficient, cost-effective Premier® MAX Smart Hybrid Electric Heat Pump water heater can deliver larger volumes of hot water using innovative smart valve technology and Hot Water+ customized operating modes. The HPAX-40-DHPT provides peace of mind with smart sensor leak detection, automatic water shutoff, and 10-year limited tank and parts warranty.

      Hybrid Heat Pump technology makes the HPAX-40-DHPT 4x more efficient by using heat from the surrounding air to heat water—saving up to $600 per year on operating costs compared to standard electric water heaters of similar capacity. This model features a 40-gallon (nominal) tank with a 3.6 Uniform Energy Factor (UEF), is ENERGY STAR® certified, and Northwest Energy Efficiency Alliance (NEEA) Tier 3 qualified.

      Premium features including vacation and guest modes save you money by adjusting to hot water demand in the home. Dual heating elements enable the water heater to recover quickly during periods of high demand.

      The Premier® MAX has advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State Premier® MAX heat pump water heaters are residential products built to commercial-grade standards.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    3.6
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    55 Gallons
    ASME Certified
    No
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    40.00
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    70.25
    Shipping Length
    25.25
    Shipping Width
    21.13
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    67.5"
    Diameter
    20"
    Width
    20"
    Shipping Weight
    191lbs
