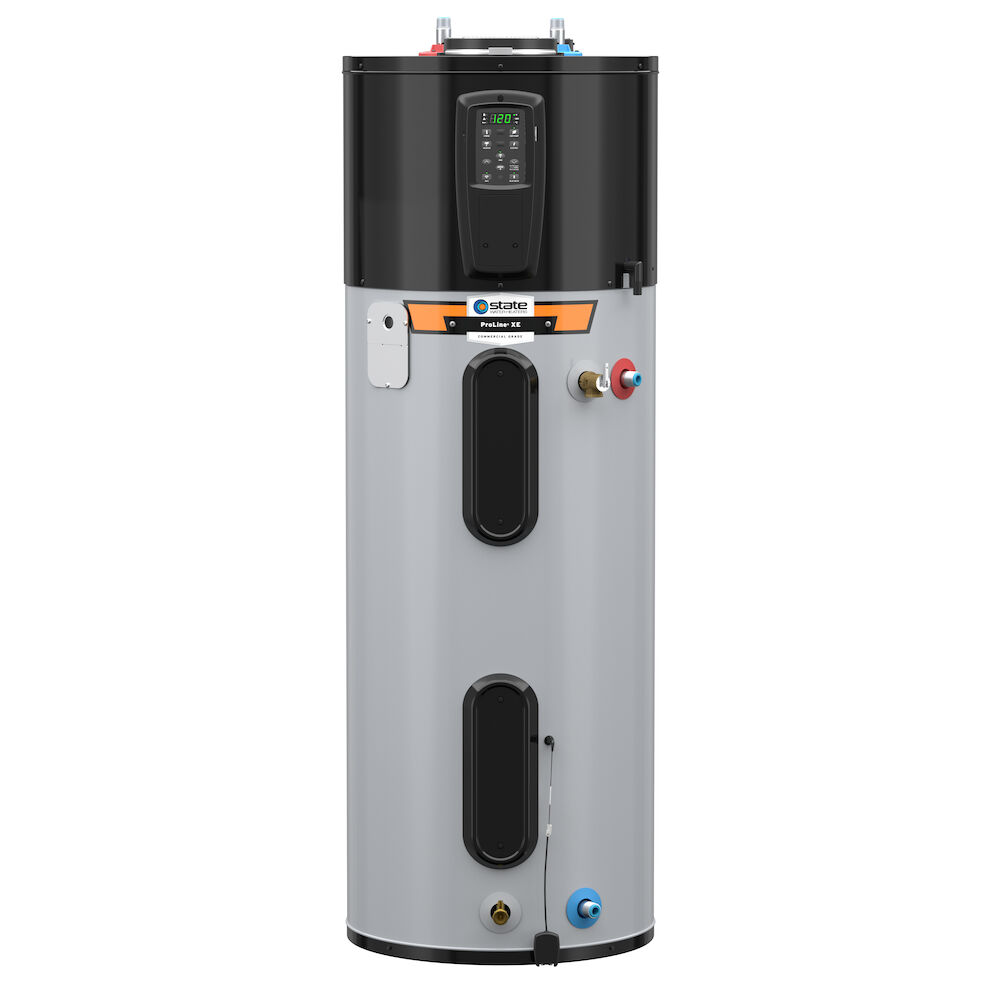

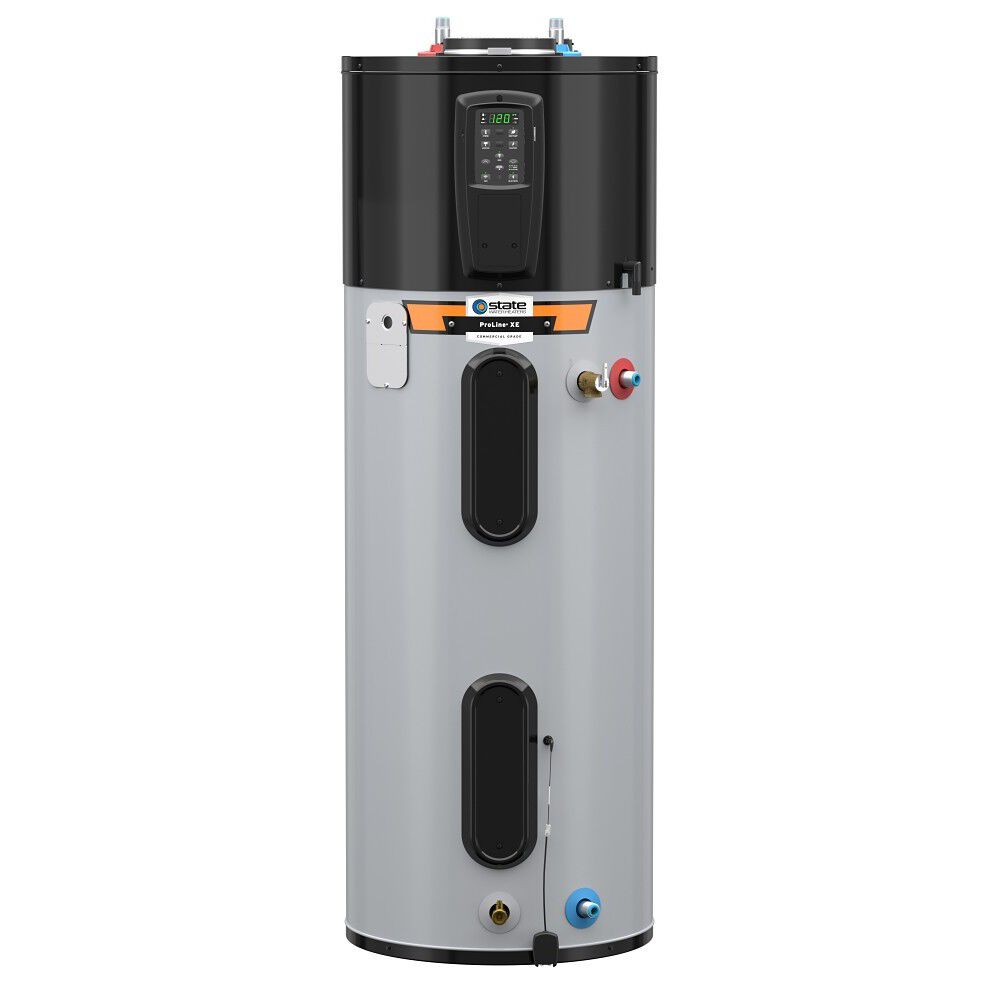

Premier® AL 50-Gallon Smart Hybrid Electric Heat Pump Water Heater with Leak Detection & Alert Technology

Model HPSX-50-DHPT 200
3.4 out of 5 Customer Rating
Capacity (Gallons)

  • ENERGY STAR® certified with up to 3.80 UEF rating
  • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
  • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak and includes an optional automatic, cold water shut-off valve
  • Product Details
    • ENERGY STAR® certified with up to 3.80 UEF rating
    • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
    • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak and includes an optional automatic, cold water shut-off valve
    • User-Friendly, Easy To Control—Digital control makes it simple to set to water temperature and operating modes and communicate diagnostics
    • Whisper-Quiet Operation—Operation at 45 dBA (no accessory vibration isolation kit required).
    • Smart Energy Savings—Allows for participation in utility demand response programs with the equipped CTA-2045-A (AC) utility communication port (participation optional).
    • Backup Water Heating System—Backup dual water heating elements provide hot water if the heat pump is unable to operate.
    • Flexible Design—Includes top & front water connections and zero clearance requirements
    • Qualify for up to $2,000 in Federal Tax Credits—Check with your tax advisor for applicability.
    • Integrated iCOMM™ connectivity allows control through a free downloadable app

    • The Premier® Hybrid Electric heat pump water heater from State Water Heaters is the cost-effective, energy-efficient choice for consumers who want to save money on their utility bills. The Premier® Hybrid Electric heat pump can reduce water heating costs up to 75%, saving up to $579 per year.*

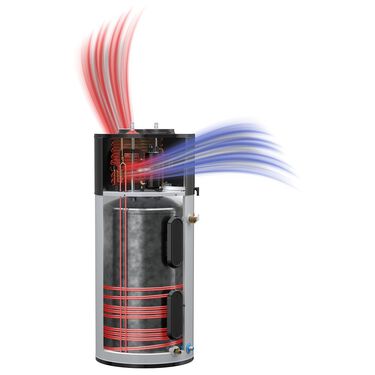

      The HPSX-50-DHPT features a 50-gallon (nominal) tank and is ENERGY STAR® certified with a 3.80 Uniform Energy Factor (UEF). Heat pump technology delivers savings by using heat from the surrounding air to heat water.

      Premium features include vacation mode to save you money while you are away. Two backup heating elements enable the water heater to recover quickly during periods of high demand, and a heavy-duty anode that protects your tank for 10 years. This heat pump water heater is Northwest Energy Efficiency Alliance (NEEA) Tier 3 qualified.

      State's Premier® AL heat pump water heater is designed to help protect the tank from the corrosive effects of water and extend the life of the water heater with commercial-grade protection. A stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning system are accompanied by a 10-year limited tank warranty.

      State's Premier® AL heat pump water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

      *Comparing 80-gallon Premier AL heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    3.8
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    First Hour Rating
    65 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    40.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    67.75
    Shipping Length
    27.13
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    66"
    Diameter
    22"
    Shipping Weight
    196lbs
    Maintenance & Troubleshooting
    Troubleshooting

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 001 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 021 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 022 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 044 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 048 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 081 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Condensate Pump Installation

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Lower Heating Element

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Upper Heating Element
