Premier® AL 80-Gallon Smart Hybrid Electric Heat Pump Water Heater with Leak Detection & Alert Technology

Model HPSX-80-DHPT 200
5 out of 5 Customer Rating
Capacity (Gallons)

  • ENERGY STAR® certified with up to 3.88 UEF rating
  • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
  • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak Also compatible with an optional automatic, cold water shut-off valve
  • Product Details
    • ENERGY STAR® certified with up to 3.88 UEF rating
    • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year in energy costs compared to a standard electric water heater of similar gallon capacity*
    • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak Also compatible with an optional automatic, cold water shut-off valve
    • User-Friendly, Easy To Control—Digital control makes it simple to set to preferred water temperature and operating modes, and communicates diagnostics. Integrated iCOMM™ connectivity allows control through a free downloadable app.
    • Whisper-Quiet Operation—Operation at 45 dBA (no accessory vibration isolation kit required).
    • Smart Energy Savings—Allows for participation in utility demand response programs with the equipped CTA-2045-A (AC) utility communication port (participation optional).
    • Backup Water Heating System—Backup dual 900 Watt water heating elements provide hot water if the heat pump is unable to operate.
    • Flexible Design—Includes top & front water connections and zero clearance requirements
    • Qualify for up to $2,000 in Federal Tax Credits—Check with your tax advisor for applicability.

    • The State Premier® AL Smart Hybrid Electric heat pump water heater from State is the most cost-effective, energy-efficient option available for consumers who want to save money on their utility bills. This heat pump water heater combines annual savings more than $600 per year* on utility bills with new leak protection features to support homeowner peace of mind like leak detection and optional automatic water shutoff.

      Featuring an 80-gallon tank, this heat pump water heater is an exceptionally efficient water heater with a 3.88 Uniform Energy Factor (UEF).

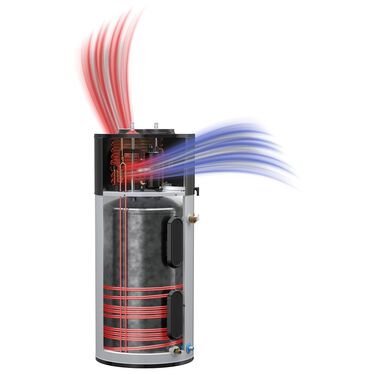

      This heat pump technology delivers tremendous savings by generating heat through the heat pump technology instead of the heating elements. It offers premium features including a user-friendly display, vacation mode to save money while you are away, and a heavy duty anode that protects your tank for 10 years. In addition to the heat pump technology, this model also has two heating elements that help the water heater recover quickly during periods of high demand. This heat pump is Northwest Energy Efficiency Alliance (NEEA) Tier 3 qualified.

      State's Premier® AL heat pump water heater is designed with State's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty.

      State's Premier® AL heat pump water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

      *Comparing 80-gallon Premier AL heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    82 Gallons
    UEF
    3.88
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    First Hour Rating
    95 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    54.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    78
    Shipping Length
    32
    Shipping Width
    28.25
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    69"
    Diameter
    26.5"
    Width
    26.5"
    Shipping Weight
    307lbs
    Maintenance & Troubleshooting
    Troubleshooting

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 001 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 021 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 022 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 044 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 048 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 081 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Condensate Pump Installation

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Lower Heating Element

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Upper Heating Element
