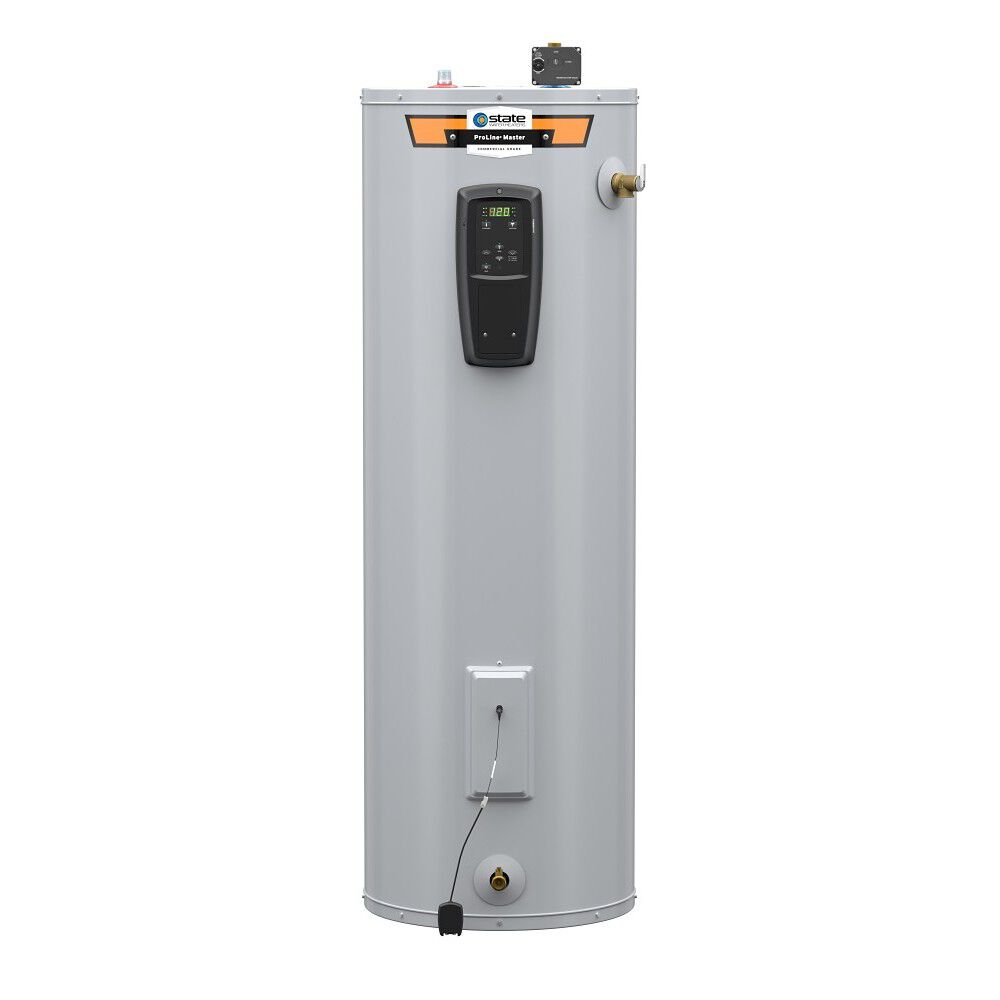

ProLine Master® 40-Gallon Tall Smart Grid-Capable Electric Water Heater with Leak Detection & Protection

Model EEA8-40-DFRT 100
Capacity (Gallons)
Height Classification

  • Steady Hot Water—Delivers 63 gallons of hot water in the first hour
  • Leak Detection—Leak detection sensor sounds an audible alarm when water is detected
  • Auto Shut-Off Valve—Automatic shut-off valve closes valve on incoming cold water inlet when leak is detected to reduce property damage
  • Product Details
    • Steady Hot Water—Delivers 63 gallons of hot water in the first hour
    • Leak Detection—Leak detection sensor sounds an audible alarm when water is detected
    • Auto Shut-Off Valve—Automatic shut-off valve closes valve on incoming cold water inlet when leak is detected to reduce property damage
    • View and Adjust From Anywhere—iCOMM™ Smart Connectivity allows you to control & monitor your water heater remotely via a smartphone
    • Durable Heating Elements—Long-lasting dual 5,500-watt stainless steel elements for fast hot water recovery & reliable operation
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
    • Peace of Mind—8-year limited tank and parts warranty for added peace of mind

    • Get smarter hot water from State Water Heaters. Our ProLine® Master Smart electric water heaters feature iCOMM™ Wi-Fi technology for greater control and include both leak detection and leak protection to provide homeowners with peace of mind.

      Take advantage of advanced utility savings with ProLine® Grid-Capable water heaters. The built-in CTA-2045 port allows homeowners to connect to local Utility Smart Grid Programs where available (requires module from local utility). Meets state of Washington and Oregon requirements.

      The EEA8-40-DFRT incorporates a 40-gallon (nominal) tank and 5,500 watts to deliver a first hour rating of 63 gallons at a Uniform Energy Factor of 0.93 and features an 8-year limited tank warranty.

      This ProLine® water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    36 Gallons
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    63 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    63.81
    Shipping Length
    24.25
    Shipping Width
    21.13
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Water Heater
    Height
    60.5"
    Diameter
    20"
    Shipping Weight
    106lbs
