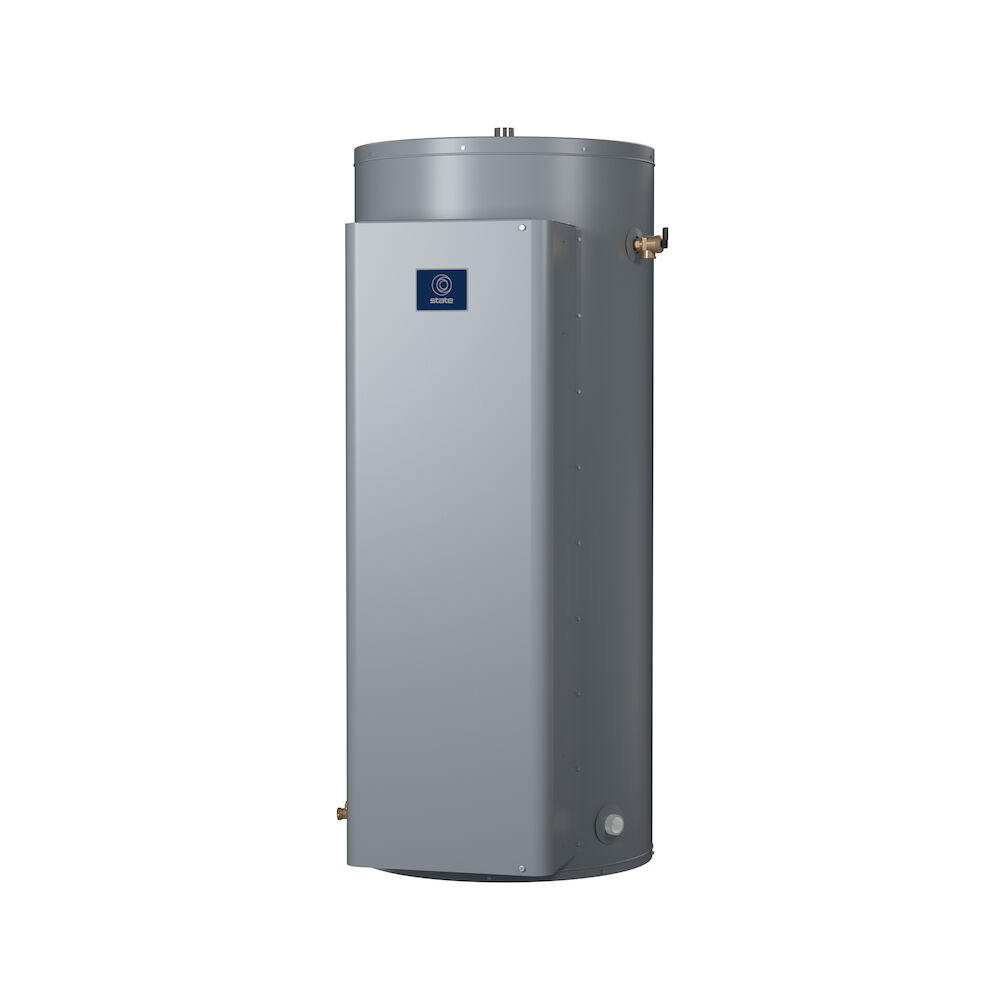

Sandblaster® Surface Mount Thermostat Commercial Electric

Model CSB-52-24-SFE 100
Capacity (Gallons)
ASME Indicator

  • Designed for use as a recovery water heater
  • Meets ASHRAE/IES 90.1-2004
  • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
  • Product Details
    • Designed for use as a recovery water heater
    • Meets ASHRAE/IES 90.1-2004
    • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
    • Fusing protects all elements, thermostats, and internal wiring circuits against excess current flow
    • Factory installed terminal block for ease of installation
    • Temperature controls located behind hinged control compartment door for quick, easy access
    • Dual commercial-grade anode rods for maximum corrosion protection
    • Simplified circuitry, color coded for ease of service
    • 3-year limited tank and 1-year limited parts warranty

    • The Sandblaster® line of commercial electric water heaters features our Incoloy Elements, proven automatic self-cleaning design to keep sediment from settling in the tank, thus keeping it extremely energy efficient at all times. The CSB saves money and is durable, flexible, and also meets all code requirements.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Height to T&P
    47.96
    Installation Type
    INDOOR
    Max Wattage
    24,000
    Number of Elements
    6
    Application
    COMMERCIAL
    Shipping Height
    65
    Shipping Length
    29.75
    Shipping Width
    24.5
    Side Loop
    No
    Voltage
    480
    Dimension & Venting
    Type
    Water Heater
    Height
    55.75"
    Diameter
    21.75"
    Width
    21.75"
    Shipping Weight
    229lbs
