Product Details
- Designed for use as a recovery water heater
- Meets ASHRAE/IES 90.1-2004
- Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
- Fusing protects all elements, thermostats, and internal wiring circuits against excess current flow
- Factory installed terminal block for ease of installation
- Temperature controls located behind hinged control compartment door for quick, easy access
- Dual commercial-grade anode rods for maximum corrosion protection
- Simplified circuitry, color coded for ease of service
- 3-year limited tank and 1-year limited parts warranty

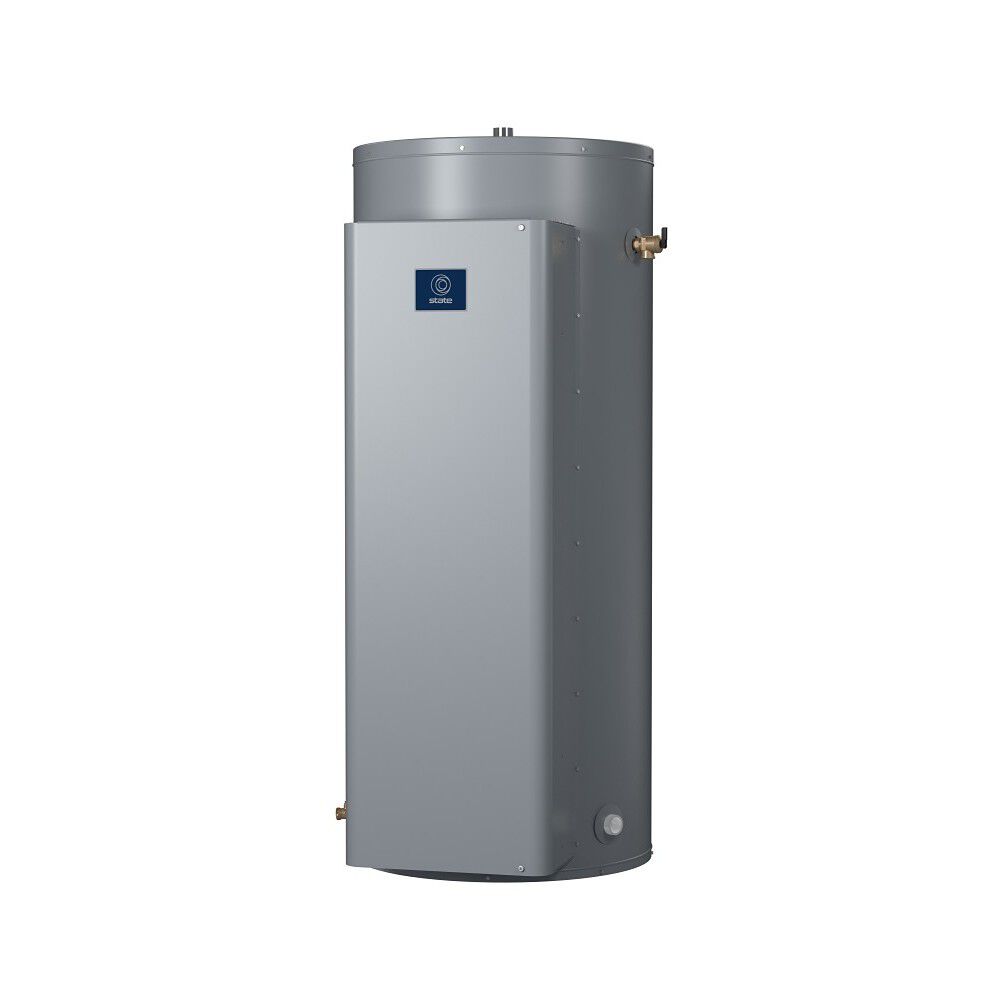

The Sandblaster® line of commercial electric water heaters features our Incoloy Elements, proven automatic self-cleaning design to keep sediment from settling in the tank, thus keeping it extremely energy efficient at all times. The CSB saves money and is durable, flexible, and also meets all code requirements.
Specifications
Tech Specs
Nominal Gallon Capacity
80 Gallons
Rated Storage Volume
73 Gallons
Thermal Efficiency
98%
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
0.75"
ASME Certified
No
Blanket Included
No
Destination Country
US
Digital Display
true
Height to T&P
52.15
Installation Type
INDOOR
Max Wattage
45,000
Number of Elements
9
Application
COMMERCIAL
Shipping Height
69.25
Shipping Length
34.5
Shipping Width
27.75
Side Loop
No
Voltage
208
Dimension & Venting
Type
Water Heater
Height
60.25"
Diameter
25.25"
Width
25.5"
Shipping Weight
314lbs
