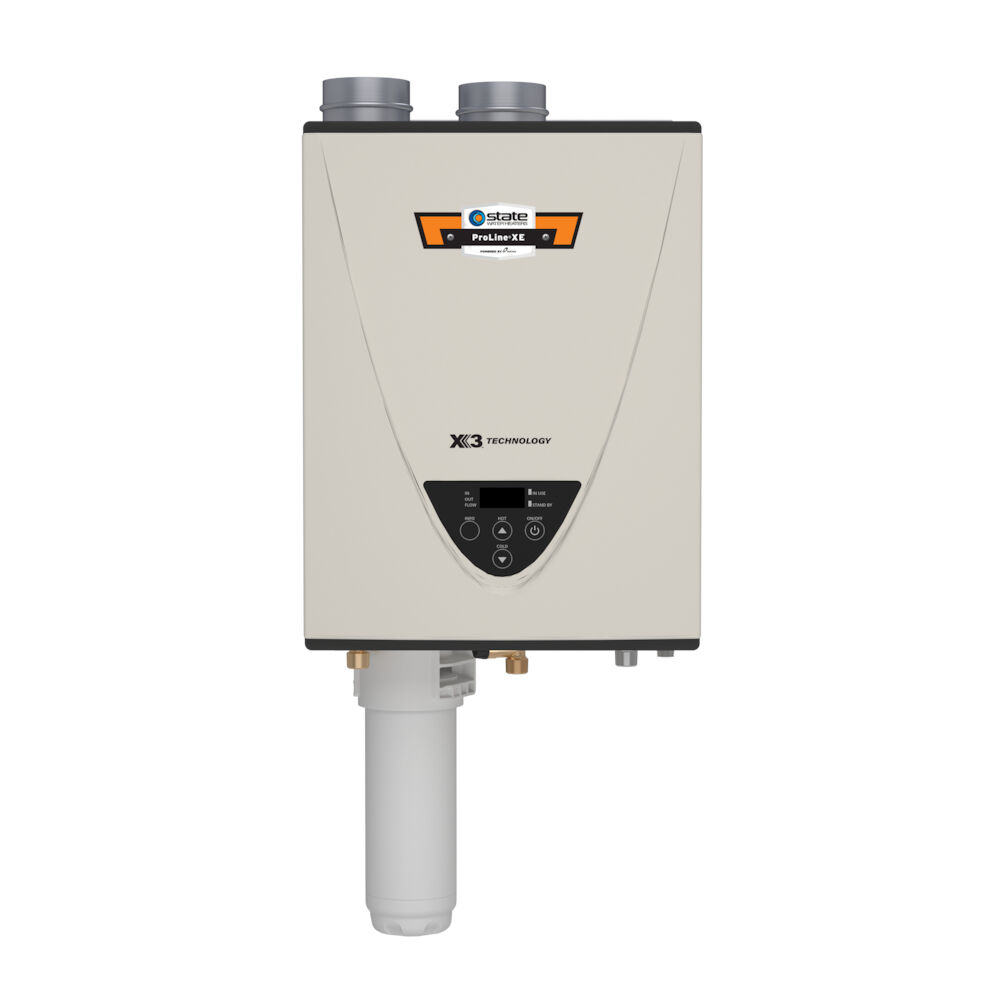

ProLine® XE Indoor Natural Gas Tankless Water Heater with X3® Technology

Model GTS-340X3-NIH 100
4.1 out of 5 Customer Rating
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified with a UEF of 0.95
  • Scale Prevention & Prolonged Performance—X3® Scale Prevention Technology prevents build-up and prolongs the life of the heat exchanger by up to 300%
  • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.5 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $187/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • ENERGY STAR® certified with a UEF of 0.95
    • Scale Prevention & Prolonged Performance—X3® Scale Prevention Technology prevents build-up and prolongs the life of the heat exchanger by up to 300%
    • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
    • Corrosion Protection—Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Can Pair with Recirculation Pump—Capable of working with a recirculation pump when fitted with a cross-over valve (sold separately)
    • Safety Features—Added safety features include a flame sensor, temperature monitoring, and an overheat cutoff fuse
    • Peace of Mind—Industry-leading 15-year limited warranty covers scale-related failures

    • The State ProLine® XE GTS-340X3-NIH Indoor Tankless Condensing water heater uses up to 180,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 2.5-bath home in northern climates and a 3.5-bath home in southern climates (one shower head per bath).

      Built-in X3® Scale Prevention Technology helps maintain like-new performance by protecting the heat exchanger from build-up. Scale-prevention protection can prolong the life of the heat exchanger by up to 300% compared to an unprotected unit.

      This ENERGY STAR® certified Ultra-Low NOx model with condensing technology has a Uniform Energy Factor of 0.95 and meets the ASHRAE 90.1b-1992 energy efficiency requirements, making it environmentally friendly and reducing operating costs.

      The GTS-340X3-NIH uses commercial-grade copper alloy for the heat exchanger tubing and is approved to work with an external recirculation pump and cross-over valve. Indoor models are certified up to a 10,100 ft. altitude.

      The GTS-340X3-NIH tankless condensing water heater provides years of hot water through innovation and quality and is backed by an industry-leading 15-year limited warranty.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    180,000
    Power Source
    GAS
    Limited Tank Warranty
    15 Years
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.40
    Minimum BTUs
    15,000.00
    Application
    RESIDENTIAL
    Shipping Height
    36.75
    Shipping Length
    21.69
    Shipping Width
    16.19
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    71.3lbs
    Vent Type
    Power Direct Vent
    Maintenance & Troubleshooting
    Maintenance

    Condensing Tankless with X3® Technology - Cartridge Installation

    Troubleshooting

    Condensing Tankless with X3® Technology - 111 Ignition Failure

    Condensing Tankless with X3® Technology - 121 Loss of Flame

    Condensing Tankless with X3® Technology - 991 Imperfect Combustion
