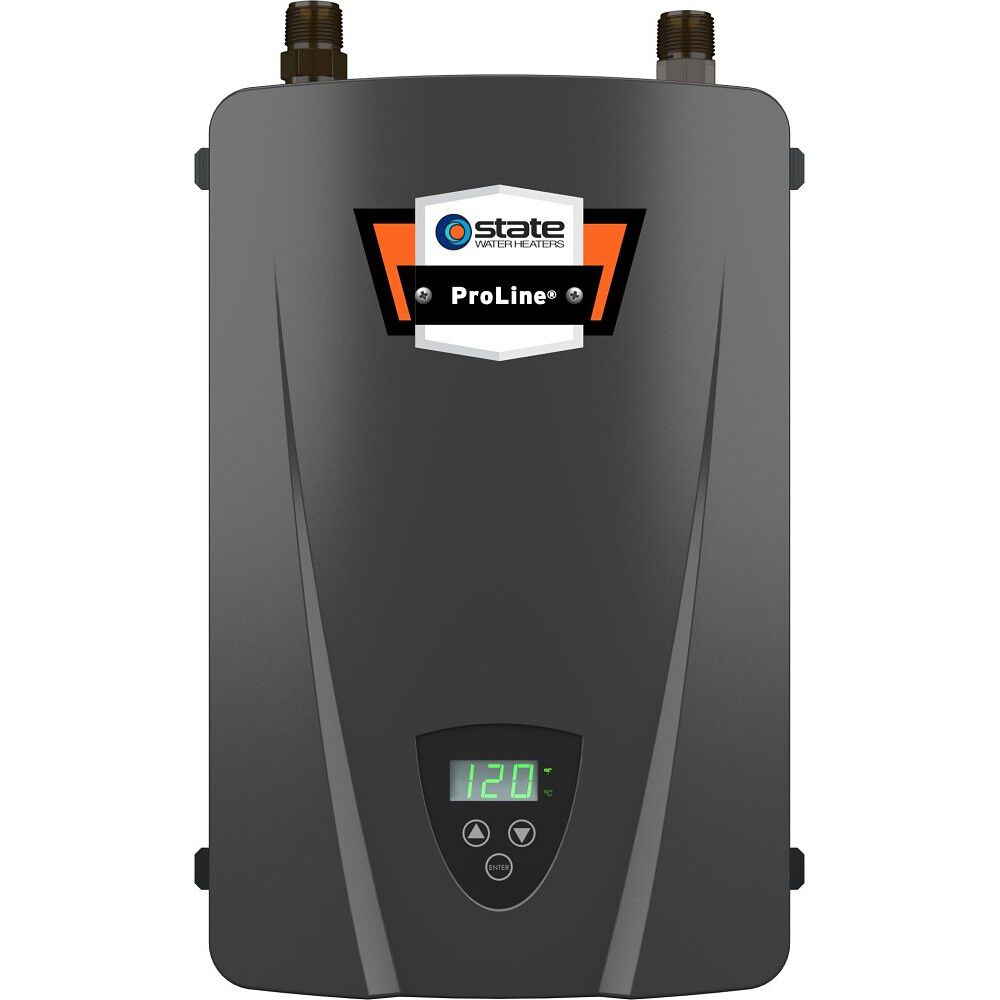

ProLine® 240V / 14 kW 2-Chamber Electric Tankless Water Heater

Model R2VS-140E 100
Voltage
Max Wattage

  • Continuous Hot Water—Water heater delivers continuous, on-demand hot water when sized correctly
  • Care-Free operation—Designed with dry-fire protection feature that prevents premature element failure for worry-free operation
  • Flexible Design—Includes top and front water connections and zero clearance requirements for easy wall mounting with no venting required
  • Product Details
    • Continuous Hot Water—Water heater delivers continuous, on-demand hot water when sized correctly
    • Care-Free operation—Designed with dry-fire protection feature that prevents premature element failure for worry-free operation
    • Flexible Design—Includes top and front water connections and zero clearance requirements for easy wall mounting with no venting required
    • Easy Maintenance—Electric water heater uses standard heating elements for convenient maintenance and parts replacements
    • Compact Design—A compact design lets users install the water heaters in out-of-the-way areas and save valuable storage space
    • Self-Diagnostics—Designed with self-diagnostics and leak detection shutdown for added safety and peace of mind
    • User-Friendly Display—Digital control makes it easier to set to preferred water temperature, operating modes and communicate diagnostics
    • Reduced Scale Build-Up—Water heater's scale reduction technology protects against hard water scale build-up and extends overall product life
    • Peace of Mind—5-year limited tank and 1-year parts warranty

    • The State ProLine® R2VS-140E 240V / 14 kW 2-Chamber Electric Tankless Water Heater can provide continuous hot water when sized appropriately. State's Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings.

      These easy to install, wall-mountable water heaters use standard 3/4-in NPT water connections and do not require venting—saving valuable space. Designed with a soft start, electric tankless water heaters produce a soft electric draw when powering on, reducing light dimming impact.

      Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. This model requires 240 volts, 58 amps, one 60-amp double-pole breaker, and #6 AWG wire size. Please check with your local professional to ensure your home's power supply and breaker panel can support this model.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.84
    Power Source
    ELECTRIC
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Amperes
    60
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    1.30
    Max Wattage
    14,000
    Number of Elements
    2
    Shipping Height
    21.56
    Shipping Length
    14.81
    Shipping Width
    11.06
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Width
    11"
    Shipping Weight
    15lbs
