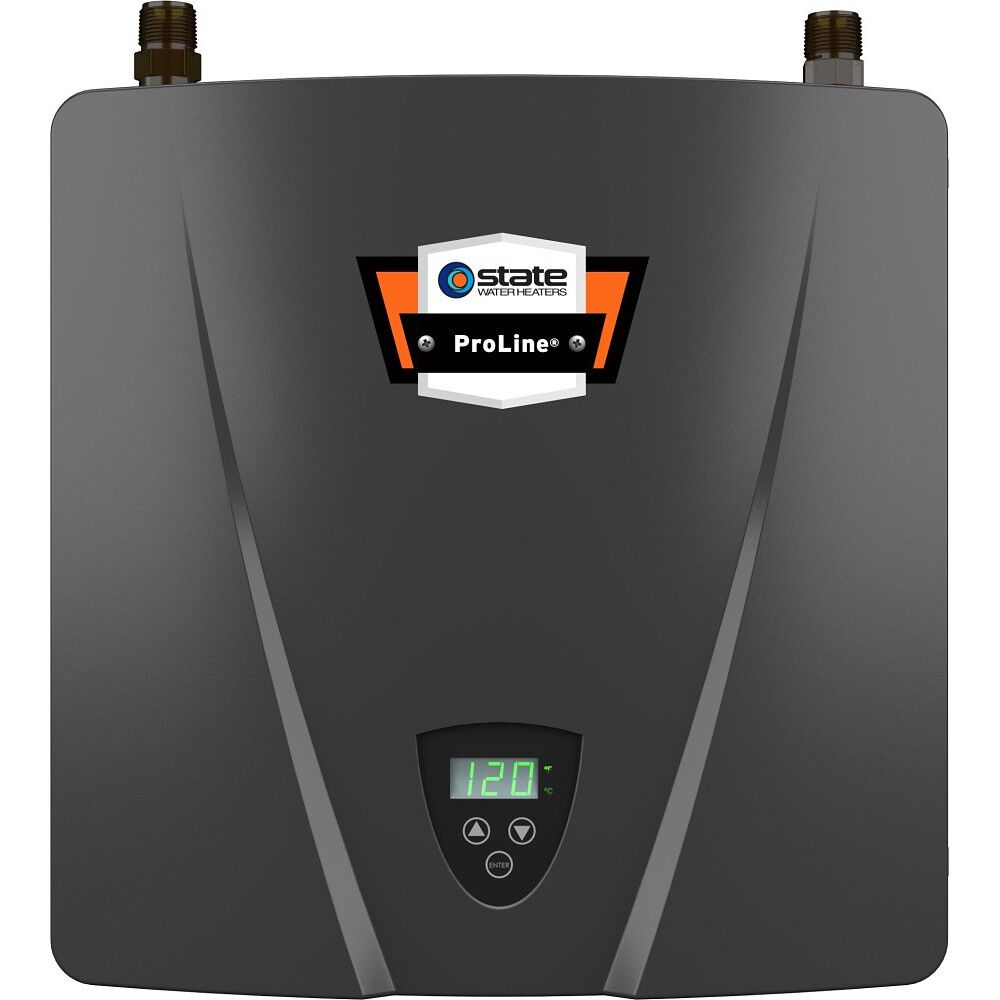

ProLine® 240V / 18 kW 4-Chamber Electric Tankless Water Heater

Model R4LS-180E 100
Voltage
Max Wattage

  • Delivers Continuous Hot Water—On-demand hot water heating system heats water only when necessary for on-demand, continuous hot water
  • Care-Free Installation and Added Safety—A dry-fire protection feature helps prevent premature element failure for convenient installation
  • Flexible Design—Includes top & front water connections and zero clearance requirements for easy wall mounting and no venting required
  • Product Details
    • Delivers Continuous Hot Water—On-demand hot water heating system heats water only when necessary for on-demand, continuous hot water
    • Care-Free Installation and Added Safety—A dry-fire protection feature helps prevent premature element failure for convenient installation
    • Flexible Design—Includes top & front water connections and zero clearance requirements for easy wall mounting and no venting required
    • Easy Maintenance—Tankless water heater uses standard heating elements for easy maintenance and convenient replacement
    • Compact, Space Saving Design—A compact design allows users to save valuable storage space and mount in out-of-the way areas
    • Self Diagnostics—Self-diagnostics and leak detection shutdown features offer added security
    • User-Friendly Display—Digital control makes it easier to set to preferred water temperature, operating modes, and communicate diagnostics
    • Hard Water Scale Protection—Modern scale-reduction technology protects against hard water build-up while extending product life
    • Peace of Mind—5-year limited tank and 1-year parts warranty

    • The State ProLine® R4LS-180E 240V / 18 kW 4-Chamber Electric Tankless Water Heater can provide continuous hot water when sized appropriately. State's Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings.

      These models are easy to install and save valuable storage space—they can be wall mounted, using standard 3/4-in NPT water connections and do not require venting. Designed with a soft start, the electric tankless produces a soft electric draw when powering on, reducing light dimming impact.

      Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. This model requires 240 volts, 75 amps, two 40-amp double-pole breakers and #8 AWG wire size. Please check with your local professional to ensure your home's power supply and breaker panel can support this model.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Amperes
    80
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    1.70
    Max Wattage
    18,000
    Number of Elements
    4
    Shipping Height
    21.56
    Shipping Length
    19.81
    Shipping Width
    11.06
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    22lbs
