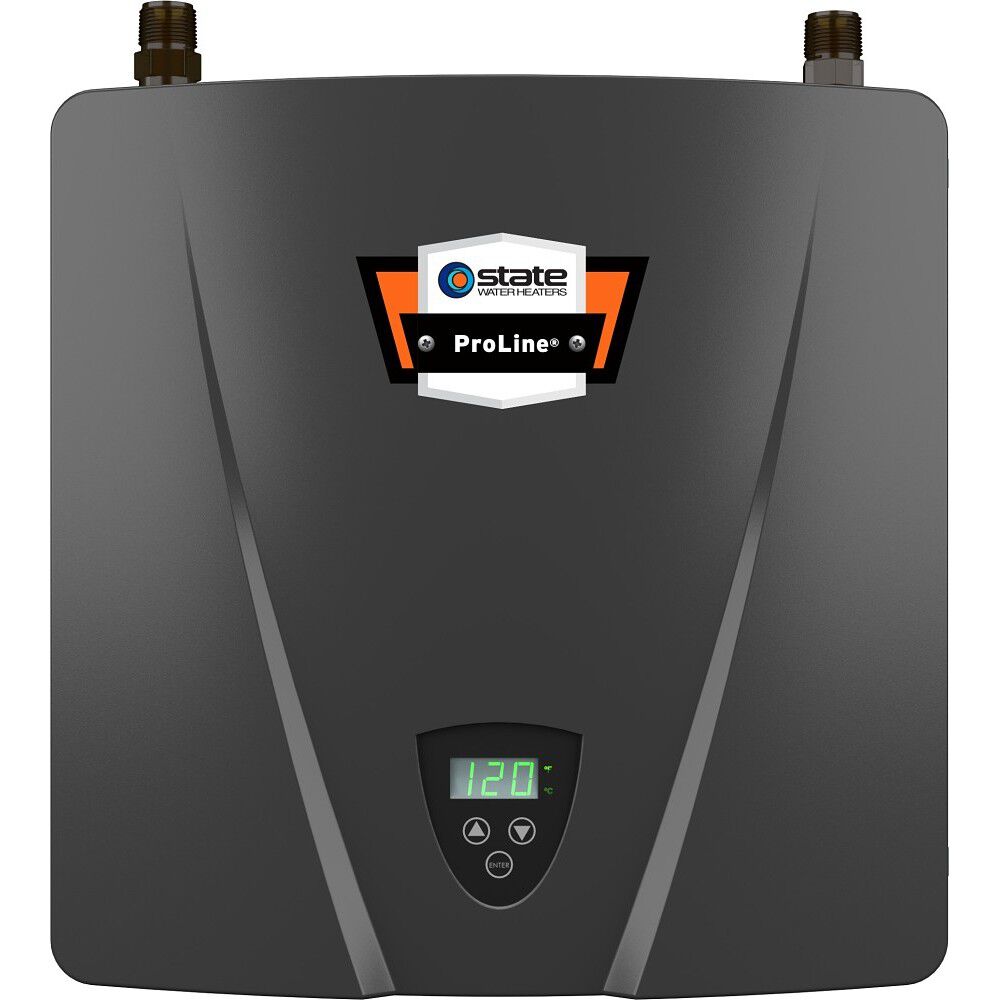

ProLine® 240V / 24 kW 4-Chamber Electric Tankless Water Heater

Model R4LS-240E 100
Voltage
Max Wattage

  • Continuous Hot Water—Only heats water when necessary for continuous, on-demand hot water when sized correctly
  • Care-Free Installation—A dry-fire protection prevents premature element failure for worry-free installation
  • Flexible Design—Includes top and front water connections with zero clearance requirements and requires no venting for easy installation
  • Product Details
    • Continuous Hot Water—Only heats water when necessary for continuous, on-demand hot water when sized correctly
    • Care-Free Installation—A dry-fire protection prevents premature element failure for worry-free installation
    • Flexible Design—Includes top and front water connections with zero clearance requirements and requires no venting for easy installation
    • Easy Maintenance and Replacement—Water heater uses standard heating elements for convenient maintenance and replacement
    • Space-Saving Design—Offers a compact design to help save valuable storage space and easy mounting in out-of-the-way areas
    • Self-Diagnostics—Offers self-diagnostic and leak detection features for optimal safety and added peace of mind
    • User-Friendly Display—Digital control makes it easier to set to preferred water temperature, operating modes and communicate diagnostics
    • Hard Water Scale Protection—Scale reduction technology prevents scale build-up inside unit and extends overall product life
    • Peace of Mind—5-year limited tank and 1-year parts warranty

    • The State ProLine® R4LS-240E 240V / 24 kW 4-Chamber Electric Tankless Water Heater can provide continuous hot water when sized appropriately. State's Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings.

      These models are easy to install and save valuable storage space—they can be wall mounted, using standard 3/4-in NPT water connections and do not require venting. Designed with a soft start, electric tankless water heaters produce a soft electric draw when powering on, reducing light dimming impact.

      Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. This model requires 240 volts, 100 amps, two 60-amp double-pole breakers and #6 AWG wire size. Please check with your local professional to ensure your home's power supply and breaker panel can support this model.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Amperes
    120
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    2.30
    Max Wattage
    24,000
    Number of Elements
    4
    Shipping Height
    21.56
    Shipping Length
    19.81
    Shipping Width
    11.06
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    18.13"
    Width
    17"
    Shipping Weight
    22lbs
