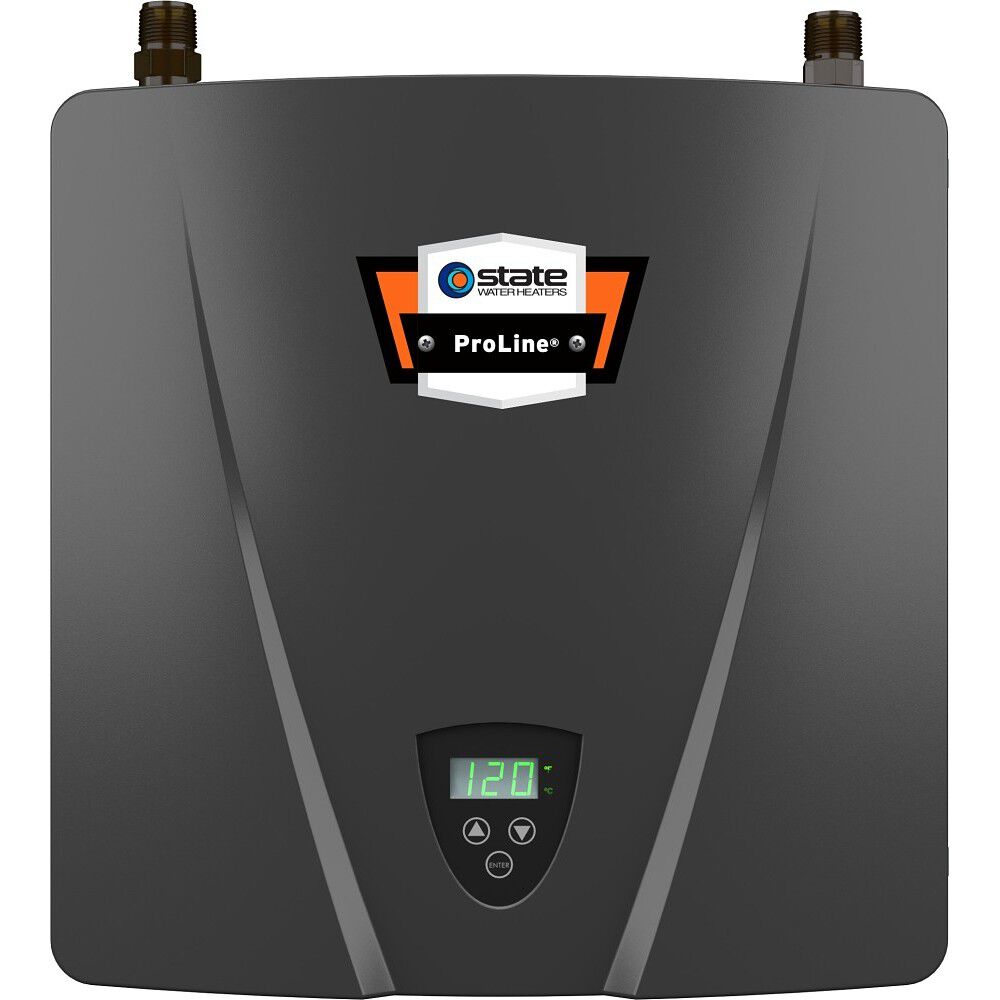

ProLine® 240V / 32 kW 4-Chamber Electric Tankless Water Heater

Model R4MS-320E 100
Voltage
Max Wattage

  • Continuous Supply of Hot Water—This water heater delivers continuous hot water when sized appropriately
  • Protective Design—Dry-fire protection prevents premature element failure during use of this water heater
  • Quick, Easy Installation—The wall-mounted design enables simple installation with no venting required
  • Product Details
    • Continuous Supply of Hot Water—This water heater delivers continuous hot water when sized appropriately
    • Protective Design—Dry-fire protection prevents premature element failure during use of this water heater
    • Quick, Easy Installation—The wall-mounted design enables simple installation with no venting required
    • Hassle-Free Maintenance—This water heater uses standard heating elements for easy maintenance and replacement
    • Space-Saving Design—Features a compact build to save space in tighter areas.
    • Added Safety Features—This water heater offers added peace of mind with self-diagnostics and leak detection shutdown
    • Simple to Use—A user-friendly digital interface for temperature control and diagnostics enables easy use
    • Advanced Technology—Scale reduction technology prevents hard water build-up and extends water heater life
    • Peace of Mind—5-year limited tank and 1-year parts warranty

    • The State ProLine® R4MS-320E 240V / 32 kW 4-Chamber Electric Tankless Water Heater can provide continuous hot water when sized appropriately. State's Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings.

      These models are easy to install and save valuable storage space—they can be wall mounted, using standard 3/4-in NPT water connections and do not require venting. Designed with a soft start, electric tankless water heaters produce a soft electric draw when powering on, reducing light dimming impact.

      Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. This model requires 240 volts, 133 amps, two 70-amp double-pole breakers and #6 AWG wire size. Please check with your local professional to ensure your home's power supply and breaker panel can support this model.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Amperes
    140
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    2.80
    Max Wattage
    32,000
    Number of Elements
    4
    Shipping Height
    21.56
    Shipping Length
    19.81
    Shipping Width
    11.06
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    18.13"
    Width
    17"
    Shipping Weight
    22lbs
