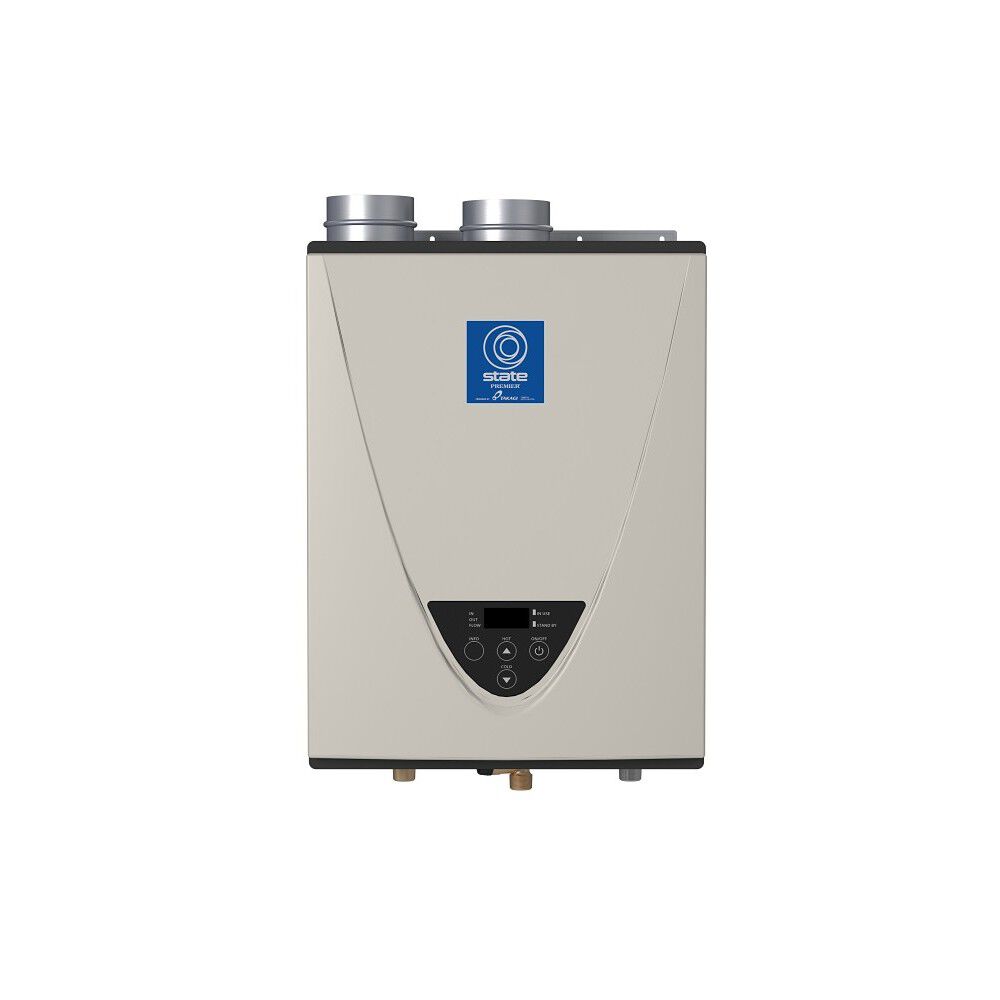

ProLine® XE Indoor 199,000 BTU Condensing Natural Gas Tankless Water Heater

Model GTS-540-NIH 100
5 out of 5 Customer Rating
Installation Type
Fuel Source
Maximum BTU's

  • Continuous Hot Water—Delivers continuous hot water at a flow rate of up to 10.0 GPM
  • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
  • Corrosion Protection—Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.7 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $208/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Continuous Hot Water—Delivers continuous hot water at a flow rate of up to 10.0 GPM
    • Optimized Heat Transfer—Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quickly
    • Corrosion Protection—Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Energy Efficient—Highly-efficient condensing Ultra-Low Nox tankless water heater delivers up to .93 Uniform Energy Factor (UEF)
    • Flexible Venting—Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
    • Shared Vent for Multiple Units—Common vent up to 8 units
    • Simple Control & Troubleshooting—Integrated temperature controls and advanced diagnostics make it easy to adjust settings and troubleshoot problems
    • Safety Features—Added safety features include a flame sensor, temperature monitoring, and an overheat cutoff fuse
    • Peace of Mind—Industry-leading 15-year limited warranty on heat exchanger in residential applications

    • The State ProLine® XE GTS-540-NIH Indoor Tankless High Efficiency Condensing water heater uses up to 199,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 3-bath home in northern climates and a 4-bath home in southern climates (one shower head per bath).

      This Ultra-Low NOx model with condensing technology has a Uniform Energy Factor of 0.93 and meets the ASHRAE 90.1-2007 energy efficiency requirements, making it environmentally friendly and reducing operating costs.

      The GTS-540-NIH uses commercial grade copper alloy for the heat exchanger tubing and is suitable for heavier residential usages, such as domestic recirculation systems. Remote control is included as a standard feature on all outdoor models. Indoor models are certified up to a 10,100 ft. altitude.

      For high-use applications, Easy-Link up to 4 units with the included communication cables. A Multi-Link controller (sold separately) can link up to 20 units.

      The GTS-540-NIH tankless condensing water heater provides years of hot water through innovation and quality and is backed by an industry-leading 15-year limited warranty.

    Specifications
    Tech Specs
    UEF
    0.93
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Tank Warranty
    15 Years
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Digital Display
    true
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.80
    Minimum BTUs
    15,000.00
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.63"
    Width
    17.75"
    Shipping Weight
    70lbs
    Vent Type
    Power Direct Vent
