Product Details
- Utilizes the industry’s lightest 199,000 BTU high efficiency condensing tankless heater
- Constructed of anodized aluminum frame for wall-mounted configurations
- Configure up to 96,000 BTU/h or up to 20 units together on a single rack system with multi-link system
- Redundant combustion system provides peace of mind & allows you to easily isolate for maintenance
- Easy field installation with three simple connections (cold water, hot water, and gas)
- Easily integrate storage into your design
- State common venting system means fewer wall penetrations and use schedule 40 PVC on intake and exhaust
- Warranty: 6 year limited heat exchanger, 5 year limited tankless parts and 1 year limited rack parts

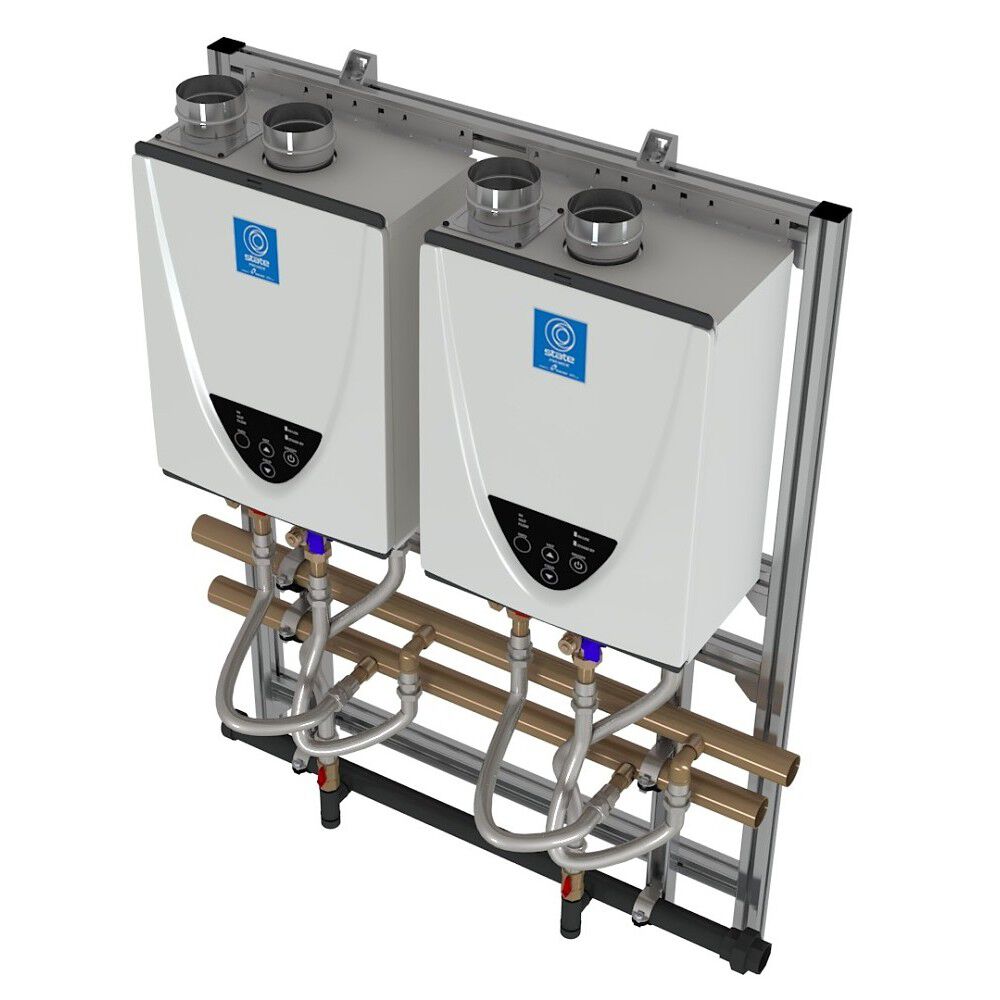

The Wall Mount design allows you to link up to 20 water heaters together with multi-link system. Up to 96,000 BTU on a single rack system. Reduce installation costs with three simple connections (cold water, hot water, and gas). This model comes with 6-year limited heat exchanger warranty, a 5-year limited tankless parts warranty and a 1-year limited rack parts warranty.
Specifications
Tech Specs
Maximum BTUs
398,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
5 Years
Water Connection Size
0.75"
ASME Certified
No
Destination Country
US
Fuel Source
PROPANE
Height to Gas Valve
9.88
Installation Type
OUTDOOR
Limited Heat Exchanger Warranty
6 Years
Number of Water Heaters
2
Application
COMMERCIAL
Rack-Mounted
true
Shipping Height
26.25
Shipping Length
77
Shipping Width
70
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
57"
Width
13.02"
Shipping Weight
440lbs
