Product Details
- First hour rating of 68 gallons
- 0.66 Uniform Energy Factor
- Intelligent control logic provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance.
- Powered anodes are non-sacrificial, so they do not deplete over time. Additionally, they provide exceptional performance in all water conditions.
- Solid brass, tamper resistant, enhanced-flow, ball type, valve.
- Thanks to the improved technology, the inlet tube features water jets that redirect incoming cold water into the tank, creating turbulence, which helps reduce lime build-up, therefore maintaining heater efficiency.

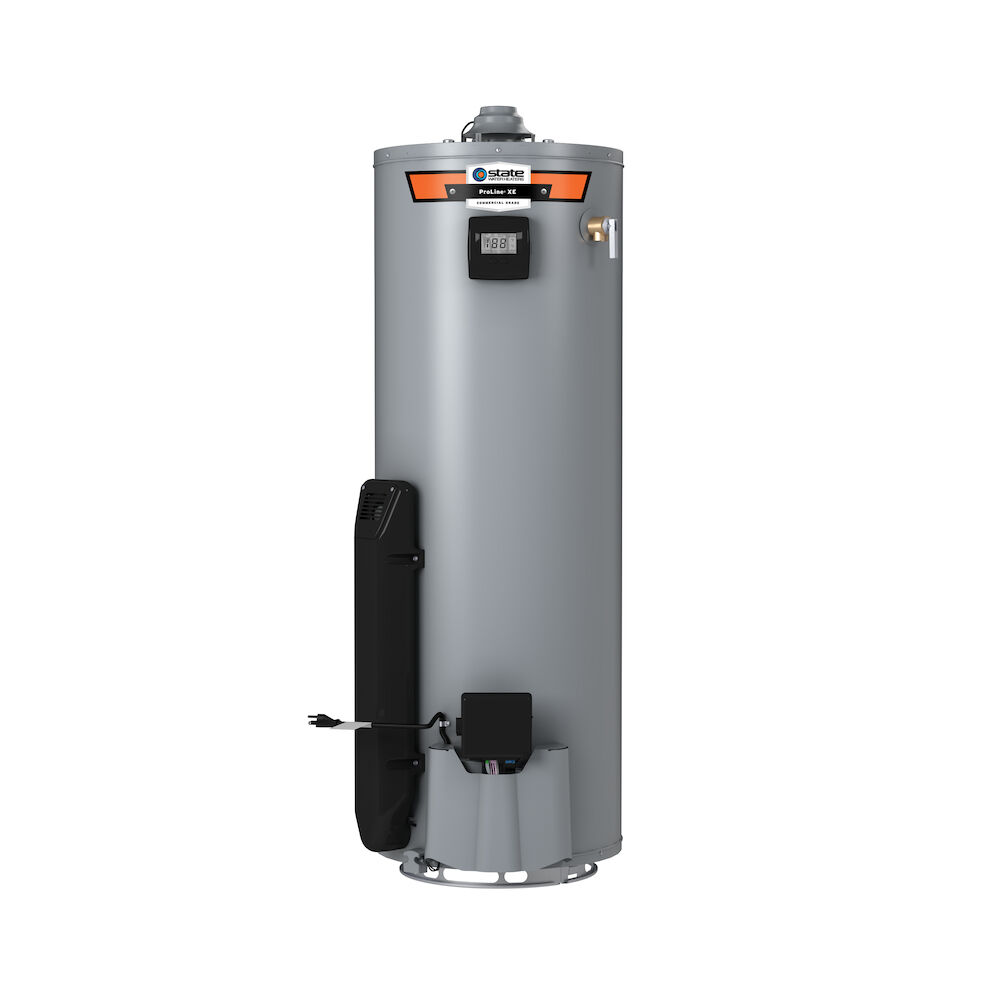

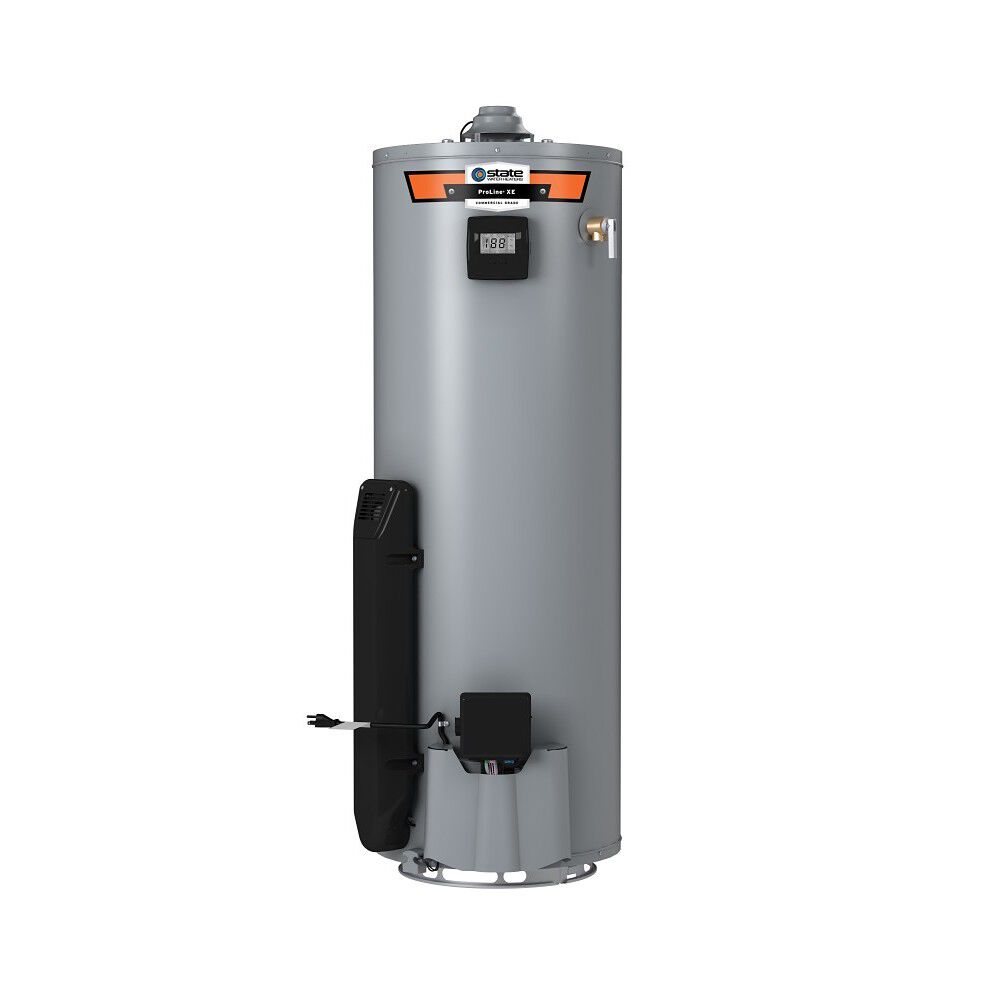

The ProLine® XE High Efficiency atmospheric 50 gallon gas water heater is an ideal choice for replacement application, delivering the highest efficiency ratings among standard gas models and helping you save as much as 25% on hot water costs.
Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GP6 40 YPCT Standard Vent delivers a first hour rating of 68 gallons and a recovery rate of 43 gallons per hour. With an 0.66 Uniform Energy Factor. It carries a 6-year limited warranty, and meets Low NOx emission requirements.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.66
Thermal Efficiency
79%
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Ultra-Low NOx
First Hour Rating
68 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
ENERGY STAR® Certified
true
Flue Diameter
4.00
Fuel Source
NATURAL
Height to Gas Valve
13.25
Height to T&P
51.75
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
61.75
Shipping Length
27
Shipping Width
24
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
58.25"
Diameter
20"
Shipping Weight
157lbs
Vent Type
Atmospheric Vent
