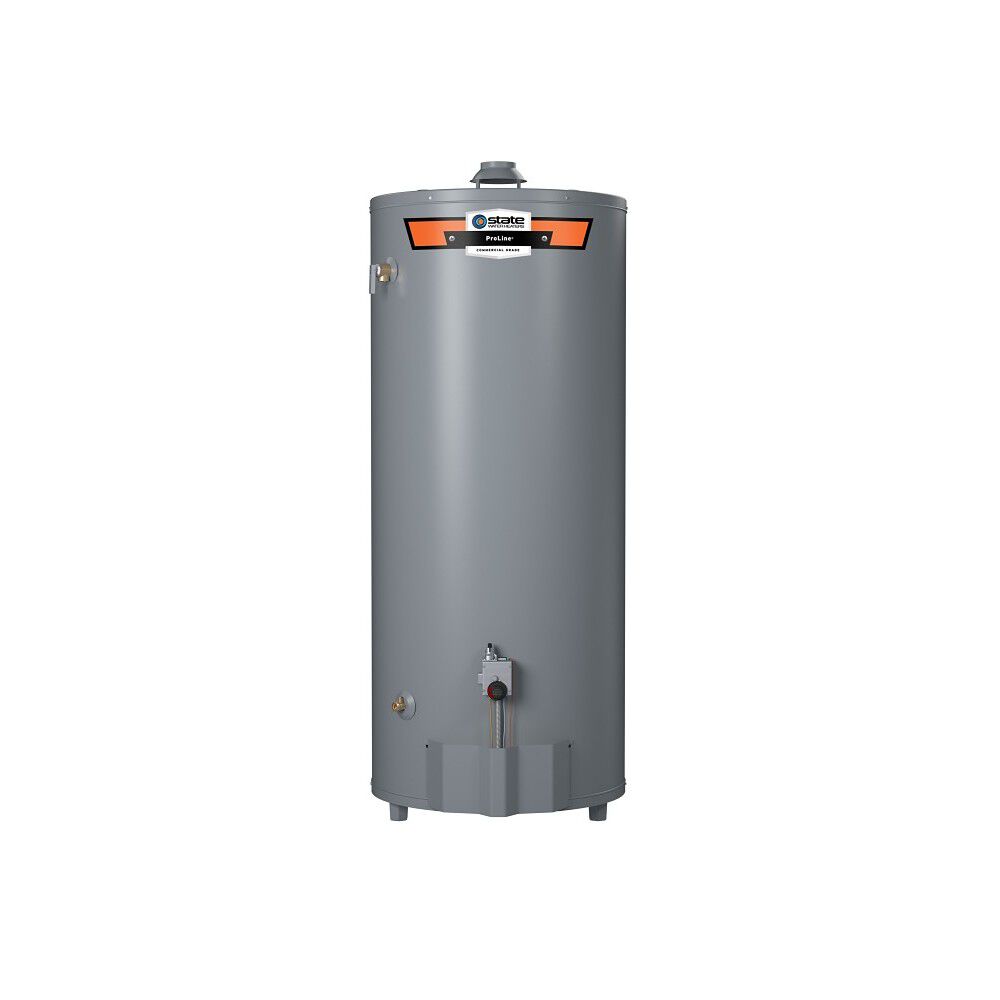

ProLine® Ultra-Low NOx 74-Gallon High Recovery Natural Gas Water Heater

Model GS6-75-URRS 100
4.9 out of 5 Customer Rating
Capacity (Gallons)

  • Meets Your Hot Water Demands—Delivers an 102-gallon first hour rating
  • Energy Efficient—75,100 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
  • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
  • Product Details
    • Meets Your Hot Water Demands—Delivers an 102-gallon first hour rating
    • Energy Efficient—75,100 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
    • Green Choice® Burner—Ultra-Low NOX Green Choice® gas burner meets or exceeds emission requirements in California & Utah
    • Automatic Safety Features—Fully automatic control system with safety shutoff, prevents excessive water temperature and requires no power
    • Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
    • Durable Materials—Heavy gauge steel jacket for added durability
    • Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
    • Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
    • Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Peace of Mind—6-year limited tank and parts warranty for added peace of mind

    • The ProLine® 74-Gallon Ultra-Low NOx High-Recovery Gas Water Heater features a 75,100 BTU gas burner to deliver a first-hour rating of 102 gallons and a recovery rate up to 81 gallons per hour. The GS6-100-URRT has a thermal efficiency of 80% and a Uniform Energy Factor of 0.64.

      A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33% and complies with Low NOx emission requirements of 40 ng/J. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.

      This ProLine® water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    74 Gallons
    Rated Storage Volume
    71 Gallons
    UEF
    0.64
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.25"
    Emissions
    Ultra-Low NOx
    First Hour Rating
    102 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    14.50
    Height to T&P
    51.00
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    60.75
    Shipping Length
    29
    Shipping Width
    31.25
    Side Loop
    Yes
    Dimension & Venting
    Type
    Water Heater
    Height
    58"
    Diameter
    25.25"
    Shipping Weight
    267lbs
