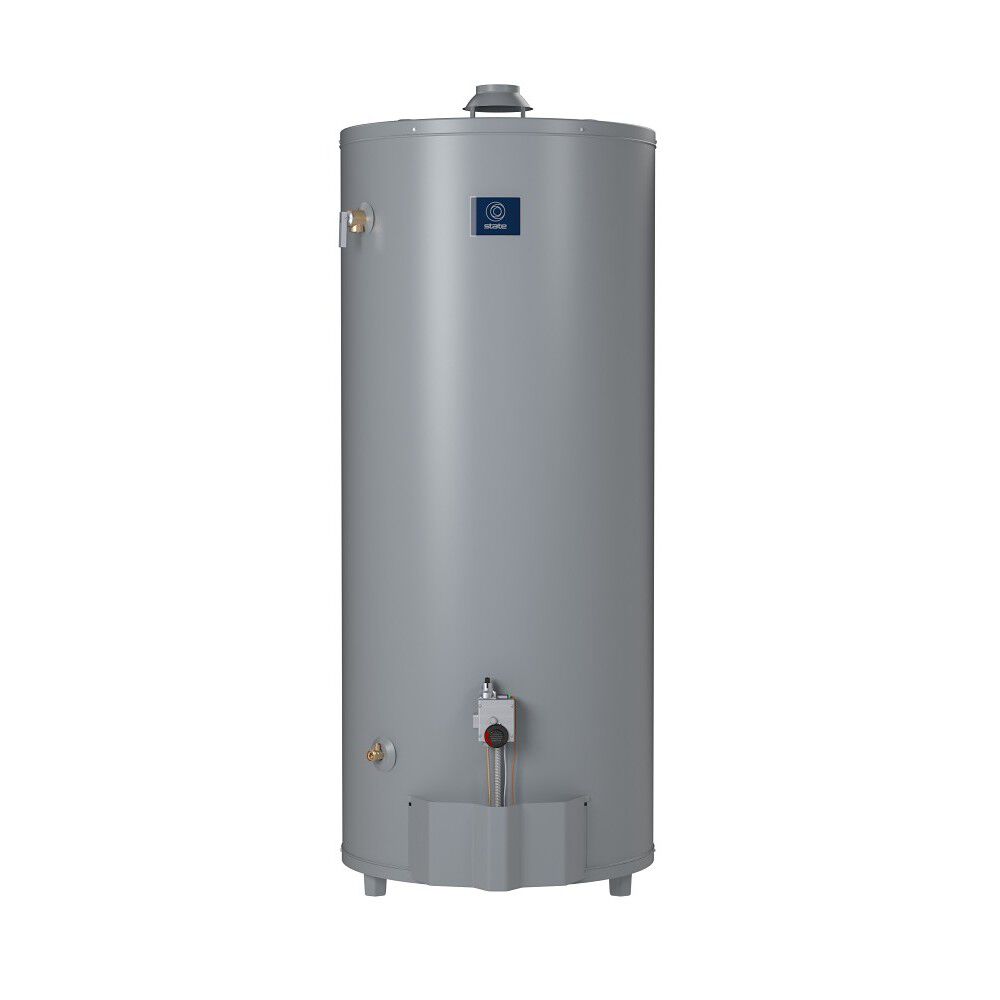

Sandblaster® Ultra-Low NOx High Recovery Commercial Gas Water Heater

Model SBL-100-76NE 100
Capacity (Gallons)

  • 75,100 BTU/h Input
  • Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
  • Fully automatic controls require no electric connections and include safety shutoff
  • Product Details
    • 75,100 BTU/h Input
    • Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
    • Fully automatic controls require no electric connections and include safety shutoff
    • Heavy gauge steel jacket for added product durability
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • CoreGard™ anode rods with stainless steel core provide additional corrosion protection
    • Inlet/outlet connections located top and front for greater installation flexibility
    • Low-profile draft hood design allows for flexible installation
    • Maximum hydrostatic working pressure 150 PSI
    • 3-year limited tank / 1-year limited parts warranty

    • Sandblaster® SBL Ultra-Low NOx Single Flue model is an atmospheric vent commercial gas water heater with NOx emissions of less than 14 ng/j and meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and Current Edition ASHRA/IESNA90.1.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    98 Gallons
    Rated Storage Volume
    94 Gallons
    Thermal Efficiency
    81%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Shipping Height
    68.5
    Shipping Length
    33.5
    Shipping Width
    30.5
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Diameter
    27.75"
    Shipping Weight
    333lbs
    Vent Type
    Atmospheric Vent
