Product Details
- 75,100 BTU/h Input
- Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
- Fully automatic controls require no electric connections and include safety shutoff
- Heavy gauge steel jacket for added product durability
- Patented Blue Diamond® glass tank lining protects against corrosion
- CoreGard™ anode rods with stainless steel core provide additional corrosion protection
- Inlet/outlet connections located top and front for greater installation flexibility
- Low-profile draft hood design allows for flexible installation
- Maximum hydrostatic working pressure 150 PSI
- 3-year limited tank / 1-year limited parts warranty

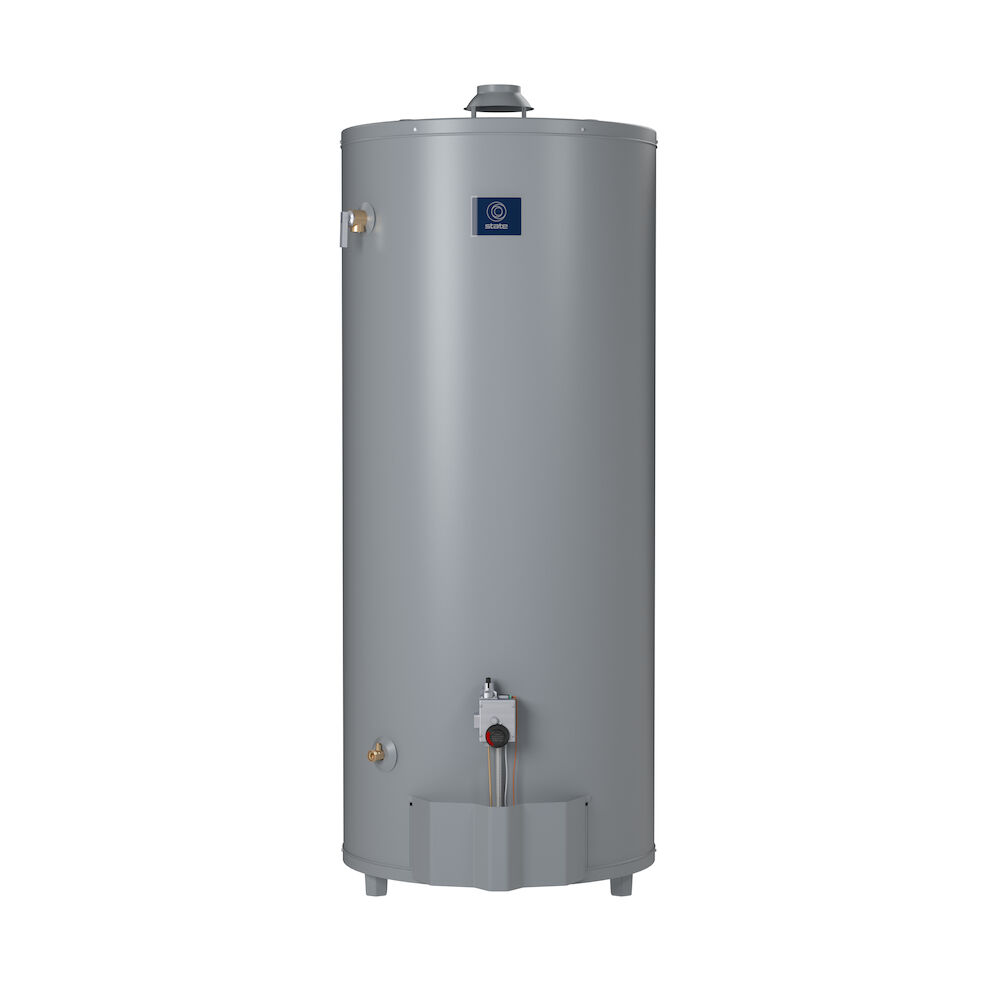

Sandblaster® SBL Ultra-Low NOx Single Flue model is an atmospheric vent commercial gas water heater with NOx emissions of less than 14 ng/j and meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and Current Edition ASHRA/IESNA90.1.
Specifications
Tech Specs
Nominal Gallon Capacity
74 Gallons
Rated Storage Volume
70.3 Gallons
Thermal Efficiency
80%
Maximum BTUs
75,100
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
Emissions
Ultra-Low NOx
ASME Certified
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
NATURAL
Installation Type
INDOOR
Application
COMMERCIAL
Shipping Height
60.75
Shipping Length
29
Shipping Width
31.25
Side Loop
No
Dimension & Venting
Type
Water Heater
Diameter
26.39"
Shipping Weight
257lbs
Vent Type
Atmospheric Vent
