- Meets Your Hot Water Demands—Delivers a 78-gallon first hour rating
- Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.65 Uniform Energy Factor
- No Power Required For Vent—Standard atmospheric vent installation with 3" or 4" B-vent, no power required
- Eco-Friendly Design Reduces Emissions—Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements
- Simple Ignition—Push-button piezo ignitor makes lighting pilot fast & easy
- Corrosion Protection—Patented Blue Diamond® glass tank lining protects against corrosion
- Auto-Cleaning Feature—DynaClean™ automatic cleaning system protects against sediment build-up
- Long-Lasting Anode—Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
- Simple Drainage—Commercial-grade brass drain valve for durable and easy operation
- Peace of Mind—10-year limited tank and parts warranty for added peace of mind

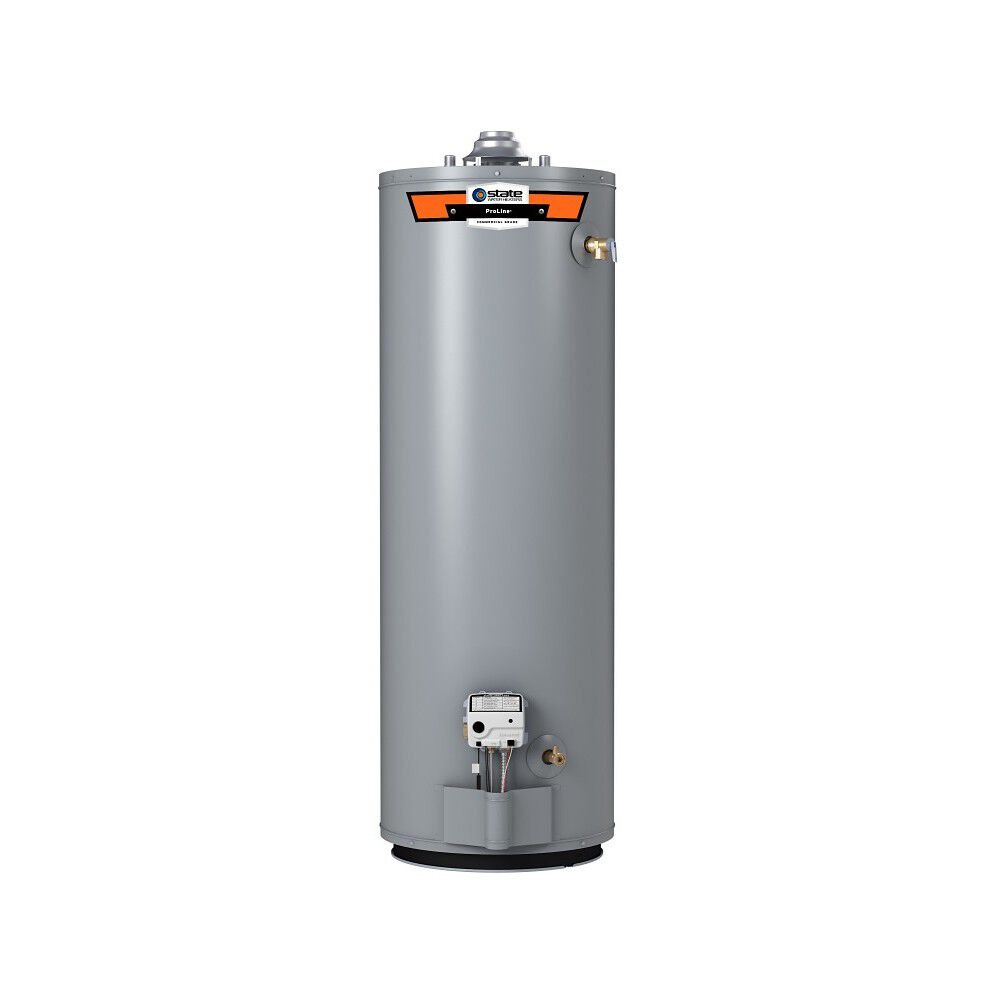

The ProLine® GSX-40-BRBT 40-Gallon Atmospheric Vent Tall Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value.
Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GSX-40-BRBT Atmospheric Vent delivers a first hour rating of 78 gallons and a recovery rate of 42 gallons per hour. It carries a 10-year limited tank warranty and meets Low NOx emission requirements.
Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This model ships with a supplied insulation blanket.
This ProLine® water heater is designed with State’s advanced tank features, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and a self-cleaning dip tube—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.
State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Residential ProLine® Series Atmospheric Vent Application and Installation
Residential ProLine® Series Atmospheric Vent Lighting the Pilot
Residential ProLine® Series Atmospheric Vent Draft Test
Residential ProLine® Series Atmospheric Vent No Hot Water
Residential ProLine® Series Atmospheric Vent Status Code 1 Flash
Residential ProLine® Series Atmospheric Vent Status Code 2 Flash
Residential ProLine® Series Atmospheric Vent Status Code 4 Flash
Residential ProLine® Series Atmospheric Vent Status Code 5 Flash
Residential ProLine® Series Atmospheric Vent Status Code 7 Flash
Residential ProLine® Series Atmospheric Vent Status Code 8 Flash
Residential ProLine® Series Atmospheric Vent Status Code Light Continuous
